Product Specifications
| Prod Model: |
SGT-6300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Sgt-6300 |
| Style: |
Hand-Hold |
| Color: |
Black |
| Brand: |
Scangle |
| Certification: |
GS |
| Type: |
Laser |
Product Description

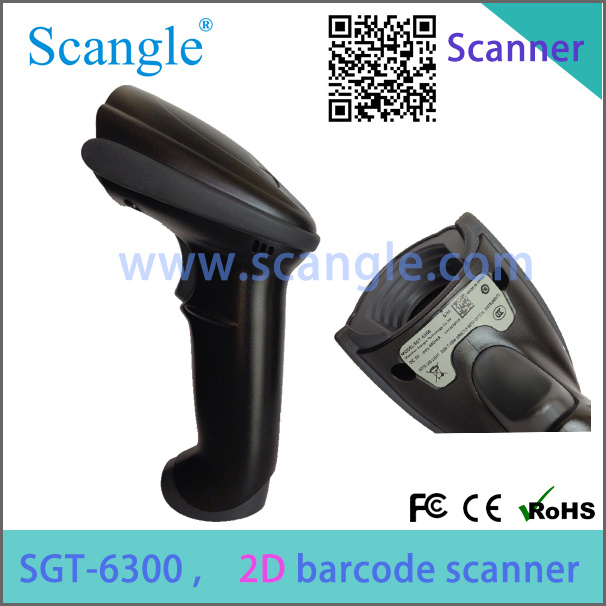

SGT-6300 is Scangle POS launched the second generation of two-dimensional bar code reading products. He has the world's most advanced two-dimensional imaging platform and industry-leading scanning performance and long-lasting reliability, but it is also a scanner and the price is very competitive and efficient products. The application of two-dimensional code, more and more commercial applications from industrial back its carrier amount of information, the advantages of small footprint increasingly highlighted. Many industries are experiencing the introduction of passive or active two-dimensional code, from one-dimensional to two-dimensional code code hardware and software equipment upgrades. SGT-6300 series is born under such conditions.
SGT-6300 can be used in a variety of applications, including retail, healthcare, logistics, industrial and supply chain management. Ergonomics and special design for the production, minimizing downtime and improves the ease of maintenance, thereby improving productivity. Compact design suitable for any hand type, comfort grip, eliminating operator fatigue.
SGT-6300 has a smart variety of interface integrated design. He has three separate memory storage area are stored RS232 serial port, keyboard port and a USB interface, three different settings. Conversion between different interfaces is very convenient, does not require any configuration barcode scanner, scanner will automatically detect the appropriate interface, auto-complete conversion.
SGT-6300 Features
Precise red sight
Large Angle Image Sensor
High-speed, omni-directional reading of one-dimensional code image, two-dimensional code reading
Supports all common interfaces
Support phone screen barcode reading: Reading directly on the phone screen electronic tickets or coupons
Environmentally friendly materials: The use of medical environmentally friendly materials, making contact with customers at ease
Durable design: IP43 sealing rating plus ruggedness specifications, can withstand from 6 ft / 1.83 m height drops to concrete impact.
SGT-6300 technical parameters
Physical parameters
Dimension (L x W x H) 180 mm x 70 mm x 85 mm Weight 160 g
Electrical parameters
Input voltage 5 + / -10% VDC @ 450 mA working power 2W (450 mA @ 5 V)
Standby Power 0.4W (120 mA @ 5 V) System Interfaces USB, RS232, Keyboard Wedge
Environmental parameters
Operating temperature 0 ° C to 55 ° C (32 ° F to 104 ° F)
Storage temperature -40 ° C to 60 ° C (-40 ° F to 140 ° F)
Humidity 5% to 95% relative humidity, non-condensing
Anti-fall to withstand 1.5 m drop height
Dust and can withstand the intrusion of airborne dust
Ambient light immunity indoor lighting sunlight 86000 Lux 1600 Lux
Scanning parameters
Two-dimensional imaging scan mode
High-density scan angle HD: Level: 41.4 ° ; Vertical: 32.2 °
Standard distance SR: Horizontal: 42.4 ° ; Vertical: 33 °
Long ER: Horizontal: 31.6 ° ; Vertical: 24.4 °
Anti-jitter level speed: 12.7cm
Identifies a minimum of 18% of the print contrast reflectance difference
Roll, Pitch 42 ° , 68 °
Ability to decode: All 1D codes, 2D codes, QR, PDF417, postal codes and OCR characters
Warranty: 1 year
