Shenzhen Wardmay Technology Co., Limited >> Hot Selling 4chs P2p 720p/1080P/D1 Realtime High Quality IP Camera NVR Network Video Recorder

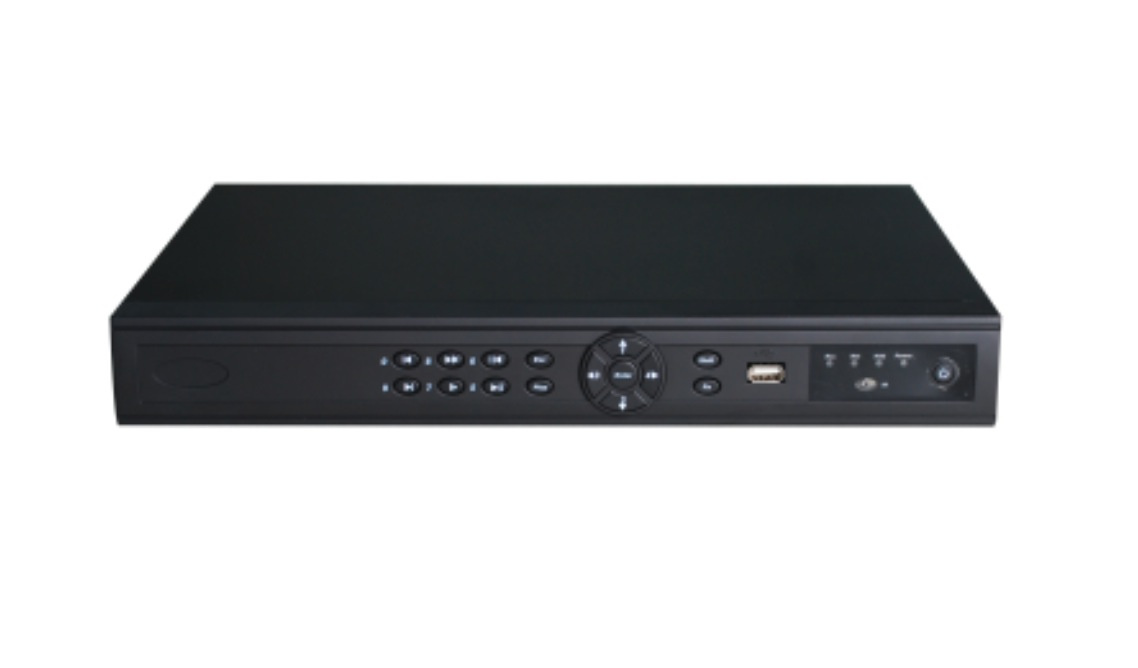

Hot Selling 4chs P2p 720p/1080P/D1 Realtime High Quality IP Camera NVR Network Video Recorder

Name: Hot Selling 4chs P2p 720p/1080P/D1 Realtime High Quality IP Camera NVR Network Video Recorder
Brand: china-manufacturer-directory.com
SKU: 764331215
Availability: InStock
Rating: 4.3 (67 reviews)

Supplier:	Shenzhen Wardmay Technology Co., Limited
Price:	US $ 90.56/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	WDM-NVR2104SL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Standalone
Video Compression:	H.264
Compressed Format:	H.264
Operating System:	Linux
Video Input/Output:	4 Channel
Remote Control:	With Remote Control
Application:	NVR
Interface Type:	HDMI/VGA
IP Camera Input:	4chs 720p@30fps/4chs 1080P@30fps/4chs D1@30fps
Output:	1 HDMI(Video & Audio), 1 VGA

Product Description

Hot Selling 4CHS P2P 720P/1080P/D1 RealTime High Quality IP Camera NVR Network Video Recorder

Features:
>ONVIF SPEC 2.3;
>4chs 720P@30fps/4chs 1080P@30fps/4chs D1@30fps Video Input, access bandwidth 32M;
>Up to 4chs simultaneous playback;
>1chs 10M/100M adaptive Ethernet ports
>Support 2* SATA HDD
>Support for third-party cloud storage, support for P2P, support for mobile messaging push.

Model No.		WDM-NVR2104	WDM-NVR2108	WDM-NVR2116	WDM-NVR2132
Chipset		Hi3515A	Hi3520A	Hi3521	Hi3531
RAM		256MB DDR3	256MB DDR3	512MB DDR3	1GB DDR3
OS		Embedded Linux
Video&Audio input	Bidirectional Talk	no		1CH,BNC(Line in,2Vpp,1Kohms)
	IPC Input	32Mbps	64Mbps	64Mbps	128Mbps
		4CH	8CH	16CH	32CH
Video&Audio output	CVBS	1CH,BNC(1.0Vp-p,75ohms)
	VGA	1CH,Resolution 1920x1080,1280×1024,1280×720,1024×768
	HDMI	Standard 1.3a
		Resolution 1920x1080,1280×1024,1280×720,1024×768
	Audio Output	1CH,RCA(Line out,2Vpp,300ohms)
Video&Audio encoding	Audio Compression	G.711A
	Audio Bit Rate	64Kbps
Video&Audio decoding	IP Resolution	Main stream:up to 1920x2048 Auxiliary stream:D1		Main stream:up to 5632x4224 Auxiliary stream:D1
	Video bitrate	Up to 2Mbps@D1,4Mbps@720P,8Mbps@1080P
	Video decoding	MPEG-4/H.264(Up to High [email protected])			MPEG-4/H.264(Up to High [email protected])
	Synchronous Playback	Up to 4CH	Up to 8CH	Up to 8CH	Up to 16CH
	Decoding Ability	Up to 4CH 720P@30	Up to 4CH 720P@30 or 2CH 1080P@30	Up to 7CH720P@30 or 4CH1080P@25	Up to 13CH720P@30 or 6CH1080P@30
Other Function	Bidirectional Talk	N/A		Two-way voice intercom function
	Motion Detection	Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
	Picture Capture	Local Capture&Web Capture
HDD Interface	SATA	2
	Max Capacity	no limited
External Interface	Network Interface	1 RJ45 10M/100M adaptive Ethernet interface			1 RJ45 10M/100M/1000M adaptive Ethernet interface
	USB	2 USB 2.0 Interfaces
	Alarm Input	4CH	4CH	8CH	16CH
	Alarm Output	1CH	1CH	3CH	3CH
	RS-485	1 RS-485 interface
Size&Weight	Dimensions	405x335x120mm
	Front Panel	LED
	Size	360x260x48mm
	Weight	2Kg(without HDD)
General	Power Supply	DC +12V 4A	DC +12V 4A	DC +12V 4A	DC +12V 4A
	Working Temperature	-10ºC--+55ºC
	Working Humidity	10%--90%
	Consumption	5W(without HDD)	5W(without HDD)	10W(without HDD)	15W(without HDD)
