Hot Selling Atc Woodworking CNC Router Machinery with Camera

Hot Selling Atc Woodworking CNC Router Machinery with Camera
Supplier: Jinan Forsun CNC Machinery Co., Ltd.
Price: US $ 20000-30000/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CIF
contact supplier

Product Specifications

Prod Model: FS1325C-L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Controller: Nc Studio Controller
Spindle: 9ke Hsd
Motor: Yaskawa AC Servo
Power: 9kw
Spindle Layout: Vertical
Spindle Number: Single-Spindle
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: ISO

Product Description

Hot Sales Low Cost Automatic Tool Change CNC Router with Syntec Controller

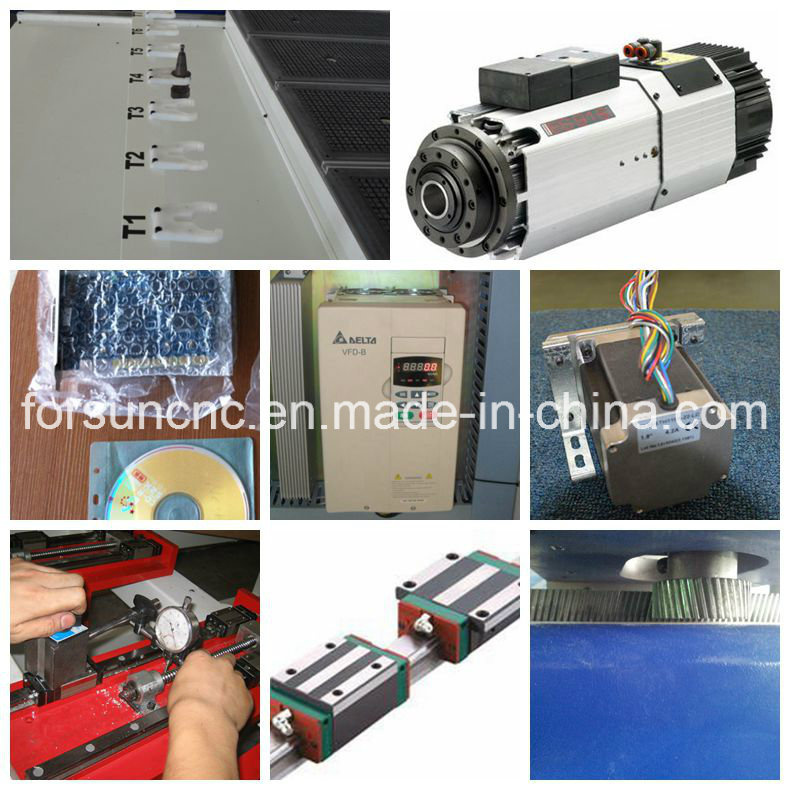

Standard Configuration:
1) Working area: 1300mm*2500mm*300mm
2) NC studio controller system from Taiwan
3) YASKAWA AC Servo motors from Japan
4) 9.0KW HSD air cooling spindle from Italy
5) DELTA inverter made in Taiwan
6) ATC with 8 positions in line
7) T-Slot vacuum table
8) ArtCam software,
9) 3PH 380V 50Z
10)Plywood case package

Option item:
1. Germany Backer Germany
2. Dust collect system
3. Oil mist cooling system

Technical Data
NODescriptionParameter
1X,Y,Z Traveling Positioning Accuracy±0.03/300mm
2X,Y,Z Repositioning Accuracy:±0.03mm/300mm
3Max. Rapid Travel Rate80000mm/min
4Max. Working Speed45000mm/min
6Spindle Speed0-24000RPM
7Command LanguageG Code
8Flash Memory512M
9ColletER32
10X,Y Resolution<0.03mm
11Running Environment Temperature0 - 45 Centigrade
12Relative Humidity30% - 75%
13Packing Size3820*2200*2100mm
14N.W.1600KG
15G.W.1800KG

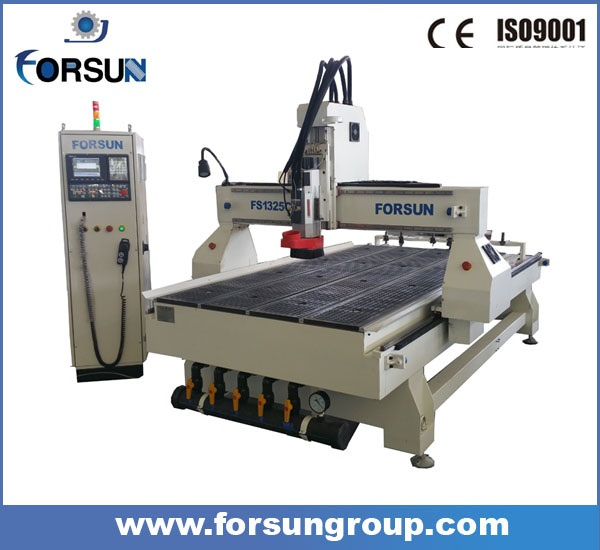

Machine picture:

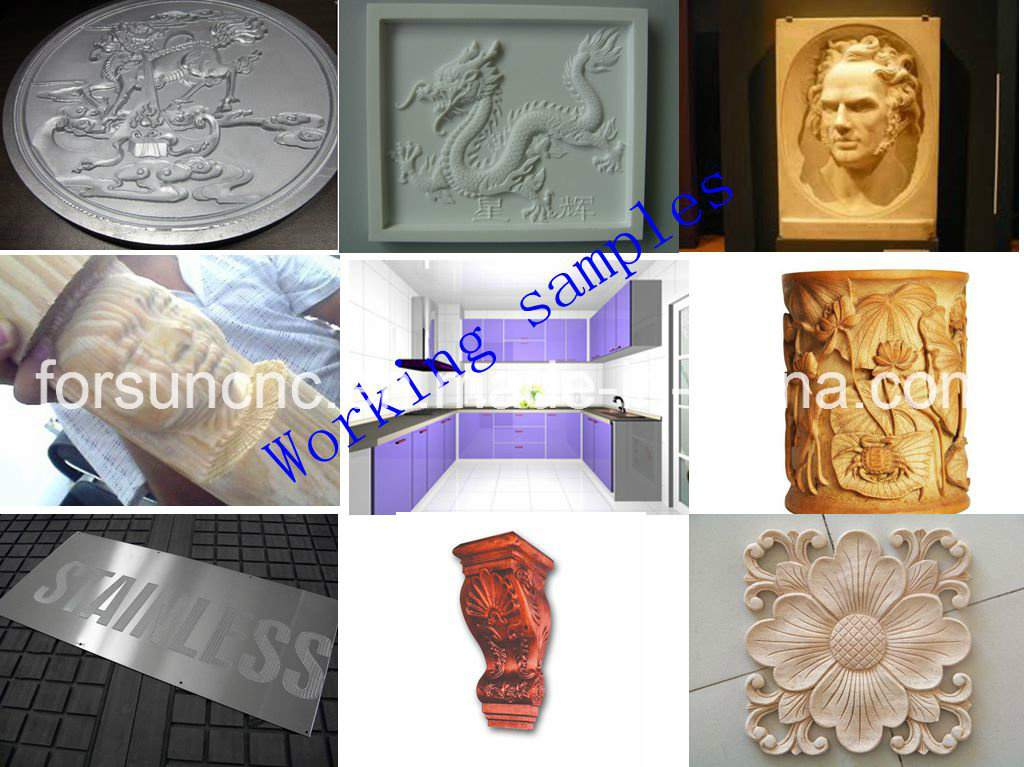

Working sample:
Remark:



1.   Pkg: suitable package for sea

2.   Terms: FOB ,C&F,CIF

3.   From Tianjin, China To_______,

4.   Delivery Time: within 15-20 working days after received payment

5.   Payment term: T/T,30% prepaid,,the balance paid before the delivery


Forsun is a leading global manufacturer of CNC routers, plasma arc cutting machines, and laser cutting machines. All the machines have been certified by CE. In manufacturing, the quality processes used are directly reflected in the excellent product that is delivered to your door. We have partnered with specific component manufacturers to deliver the best components for our machine systems. Our focus is on integrating advanced technology and value into systems that are highly productive, easy to use and built to last. Some of our strategic vendors include HSD Spindles, THK Bearing Systems, Siemens control system, YASKAWA servo, HIVIN linear guide and Eisler Reducer. As a machine builder, the exacting manufacturing processes we have created ensure that even custom systems can be engineered, manufactured and delivered with the shortest manufacturing lead times in the industry. We are near to you physically, and only a phone call or email away electronically for machinery, software and consumable sales as well as after sales support. Count on Forsun to work with you in your machine decision process, to build you an excellent quality CNC router that will work for years, and to continue to support you and your machine decision for years to come. We strive toward exemplary customer satisfaction, employee career fulfillment and corporate citizenship. Success in these areas, we believe, will yield long-term benefits for the Forsun brand, Forsun employees and our partners.
