Hot-Selling Non-Slip Mats Making Machinery (High Quality)
Product Specifications
| Prod Model: |
DJY Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Guarantee Time: |
12 Months |
| Service: |
as Your Requirement |
| Electrical Parts: |
ABB, Omron, Siemens, Schneider |
| Brand: |
Dejiayuan |
| Type: |
Profile Extruder |
| Plastic Processed: |
PVC |
| Product Type: |
Granulating Extruder |
| Feeding Mode: |
One Feed |
| Assembly Structure: |
Integral Type Extruder |
| Screw: |
Twin-Screw |
| Engagement System: |
Full Intermeshing |
| Screw Channel Structure: |
Deep Screw |
| Exhaust: |
Exhaust |
| Automation: |
Automatic |
| Computerized: |
Computerized |
Product Description

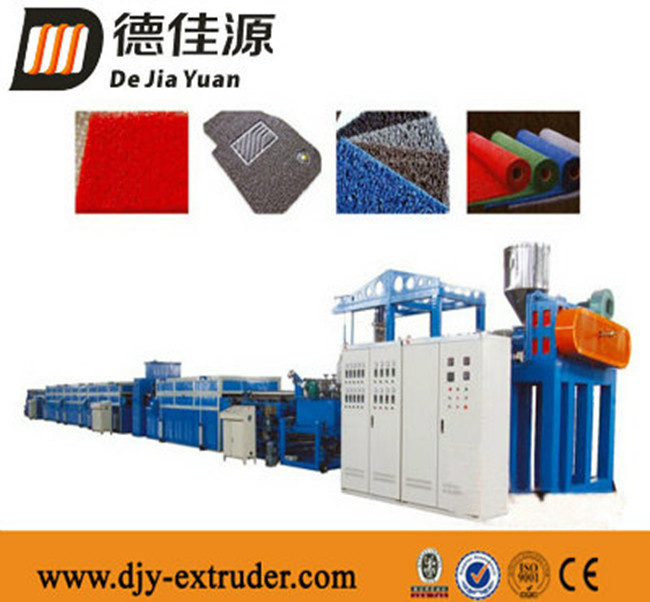

Rug production line/wire drawing
The plastic wire drawing mat (also known as Polamei) that manufactured by PVC wire drawing mat production line is formed in one process by compositing the plastic silk and bubble film . The products have the characteristics of soft , age-resisting , easy-to-clean and convenient to pave . They can be widely used in the stores , public places , families , hospitals , elevators , staircase , gymnasium and office space . The plastic wire drawing mat employs high-quality environmental protection raw material with the properties of lasting brightly color and be less susceptible to discoloration.
Plastic bicolourable wire drawing mat molding unit that mainly manufacture plastic wire drawing pedals mat is the new equipment developed and researched by our company. The product is mainly used for decorative mat in automobiles , guesthouses , hotels ,blanket and felt in indoor living room and bedroom in families , bath mat , and outdoor square decoration ,etc . As the name suggests , The plastic bicolourable wire drawing mat has two colors , comparing to other ordinary carpet , it has the special characteristics of better ornamental effect , long service life , cheap , easy-to-clean , wear-resisting and without putrefaction .Besides , the product that with the property of recycling are rare environment friendly .
Main technique parameter:
Model |
SDR-1500 |
SDR-2200 |
SDR-2600 |
SDR-1500 |
SDR-2200 |
Width(mm) |
Single color1200 |
Single color2000 |
Single color2400 |
Double color1200 |
Double color2000 |
Extruder |
SJI120/25 |
SJI150/25 |
SJI180/25 |
SJI90/25 |
SJI120/25 |
Mould(mm) |
1320 |
2120 |
2520 |
1320 |
2120 |
Water tank |
1500 |
2200 |
2600 |
1500 |
2200 |
Dehydration frame |
1500 |
2200 |
2600 |
1500 |
2200 |
Spray adhesive frame |
1500 |
2200 |
2600 |
1500 |
2200 |
Traction trimming |
1200 |
2000 |
2400 |
1200 |
2000 |
Roller machine |
1200 |
2000 |
2400 |
1200 |
2000 |
Cooling water(m³) |
20 |
30 |
50 |
20 |
30 |
Power supply |
380V50Hz |
380V50Hz |
380VHz |
380V50Hz |
380V50Hz |
Air pressure(Mpa) |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
Linear speed(m/min) |
3.0 |
3.0 |
3.0 |
3.0 |
3.0 |
Total power(kw) |
600 |
650 |
750 |
750 |
750 |
Dimension (m) |
42×3×0.6 |
42×4.5×6.0 |
42×5.0×6.0 |
42×3.0×6.0 |
42×4.5×6.0 |
Qingdao DeJiaYuan Plastic Machinery Co, . Ltd. Is a high-tech company who can engage in produce many kinds of plastic machinery, the search and development of plastic machinery, the produce and sell, the techniacal service of plastic machinery. The company own high technical design and develop talented person, the install and trial run staff, and have a close cooperation relationship with many university and academies, can gathering the latest scientific research achievements, provide the user the competitive equipment and techinc.
Wood plastic meaning using processing foliage fiber or powder (like wood powder straw stalk, flax, peanut shell, coconut shell and so on)as the component together with the resin (for example polyethylene, polypropylene, polyvinylchloride and so on)complex to a kind of new material. This meterial can have the merit with plastic and fiber, can widely used in construction, the room's inside decorate, the car's decorates, transports salver, furniture, stockade, the arm rest, the plank and so on; Indoor decoration strip, dalle, stave sheet, ceiling and so on; In car's dalle, seat foundation, display board and so on.
Generally speaking, this new kind wooden plastic compound, material have good mechanical properly. Can be sawed, be planed, be nailed. The production don't fear to be destroyed by insectes, don't have funus, anti-strongalkali, waterproof, hard to be distorted, and canbe 100% recycling reused.
Based on this machinery the company invests the large money for resaerching wooned plastic machine, now we have makes breakthrough progress. Successful develops wooden plastic door, the wood plastic fillor, the wood plastic decoration strip, the wood plastic profile produce line. When pushing to the market, has obtained the customer consistent high praise.
