Product Specifications
| Prod Model: |
Tnr-C Tnr-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Level: |
a |
| Pole Number: |
4 |
| Protection Class: |
Class1 or 2 |
| Maximum Continuous Operating Voltage Uc: |
385 |
| Surface Discharge Current In (Ka): |
60 |
| Protection Level Up (Kv): |
2.5 |
| Type: |
Power Source Arrester |
| Structure: |
Valve Type Arrester |
| Installation: |
Tandem Arrester |
Product Description
ApplicationsJCF-DM385 / 60 power surge protectors for 50Hz of TT, IT, TN grounding type power supply system, widely used in various types of power, the first ,secondary over-voltage protection, usually installed in the building of low voltage main line distribution cabinet or distribution panels.
Model DescriptionJCF-DM385 / 4/60
D represents a power surge protector,
M represents the module ,
385 represents the maximum continuous operating voltage,
4 represents 4P,
60 representatives of the nominal discharge current.
| Type | JCF-DM385/20 | JCF-DM385/40 | JCF-DM385/60 |
| Maximum continuous operating voltage Uc (V ~) | 385 | 385 | 385 |
| Nominal discharge current In (kA) | 20 | 40 | 60 |
| Maximum discharge current Imax (kA) | 40 | 80 | 100 |
| Protection level Up (kV) | 1.8 | 2.2 | 2.5 |
| Response time t (NS) | ≤25 | ≤25 | ≤25 |
| Access singlet cross-sectional area (mm²) | ≥6 | ≥6 | ≥10 |
| Access grounding wire cross-sectional area (mm²) | ≥25 | ≥25 | ≥25 |
| The front end of the recommended series fuse (A) | 20 | 40 | 63 |
| Work environment (ºC) | -120 |
| Relative humidity | ≤95% |

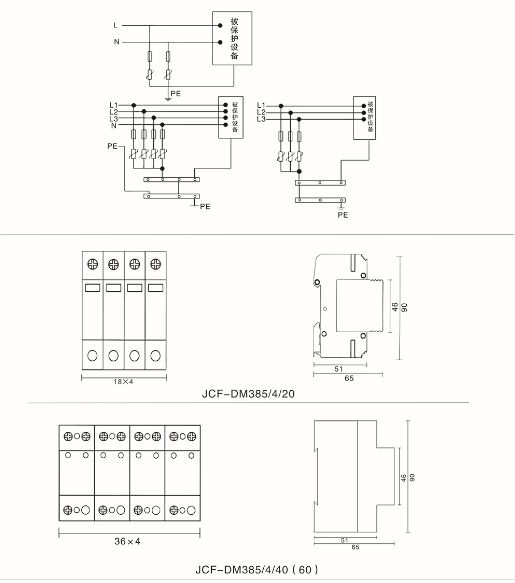

Product Connection Diagrams
