Product Specifications
| Prod Model: |
XTQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Industrial Vacuum Cleaner |
| Fuel: |
Steam or Electric Heating |
| Clean Type: |
Industrial Ultrasonic Cleaner |
| Cleaning Process: |
Cold Water Cleaning |
| Certification: |
CE. ISO9001 |
| Capacity: |
10kg to 150kg |
| Heat: |
Steam, Electric |
| Used For: |
Laundry Washing |
| Warranty: |
12 Months |
| Name: |

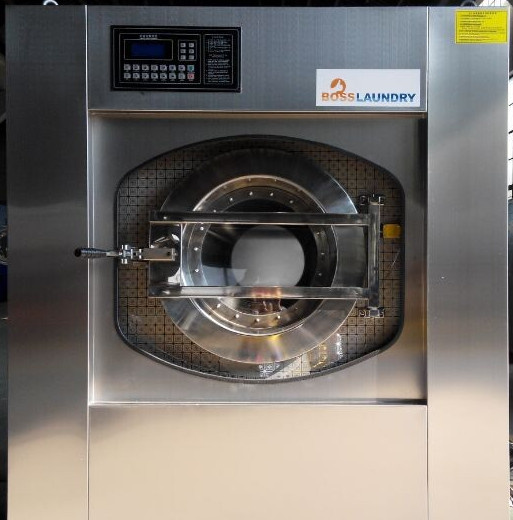

Hotel Automatic Washing Machine |
Product Description
XTQ series automatic-fully washer extractor:
Automatic washer, Automatic-fully washer extractor, Automatic-fully washing and dewatering machine, Automatic-fully washing and extracting machine, Automatic-fully washer, Automatic washing machine, Washer extractor, Laundry washing machine, Laundry washer extractor, Laundry equipment, Marine washer extractor
1. Automatic-fully washing and extracting machine, drum and body all made of 304 stainless steel, easy to operate and it gathers the washing and extracting these two functions together.
2. Steam or electrical heating.
3. Its capacity is from 15kg to 100kg.
4. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and proof-shock.
5. Adopt the international latest complete suspension structure to reduce shock, replace the original shock design by liquid pressure buffer with springs, it can ensure an ideal proof-shock effect even on higher floors.
6. It is with a drum without compartment and single door structure convenient to loading or unloading, and reduces the labor intensity and improves the clean level.
7. With fully-closed and rear-drainage structure, it is good for environmental protection, the drum and case are both made of high quality stainless steel with the advantages of stain resistance and durability.
8. The new micro-computer control washer-extractors offer our customers with easy programming, and tremendous energy savings compared. Owners will be impressed with the water savings they achieve and the benefits to their operation. The easy-to-use controls and flexibility of the pre-programmed cycles will be a hit with customers. They can add an extra wash, rinse or choose both to create a personalized wash cycle based on their individual needs. Customers will appreciate the large LED display that leads the user through the washing process.
9. The automatic-fully washer extractor are usually used for hotel, restaurant, school, hospital, counterpane factory and laundry house, etc.
10. With CE and ISO9001 certificates.
Specification:
| Model | XTQ-15H | XTQ-20H | XTQ-30H | XTQ-50H | XTQ-70H | XTQ-100H |
| Rated capacity (kg) | 10-15kg | 15-20kg | 20-30kg | 35-50kg | 50-70kg | 70-100kg |
| Motor power (kw) | 2.2kw | 2.2kw | 4.0kw | 5.5kw | 7.5kw | 7.5kw |
| Electrical power(kw) | 12kw | 15kw | 24kw | 36kw | -- | -- |
| Roller dimension (mm) | 650mm | 673mm | 902mm | 1060mm | 1200mm | 1200mm |
| Roller deep (mm) | 450mm | 550mm | 500mm | 605mm | 626mm | 815mm |
| Roller volume | 149Lit | 195Lit | 320Lit | 504Lit | 708Lit | 920Lit |
| Average speed (r/min) | 90r/min | 90r/min | 72r/min | 75r/min | 70r/min | 65r/min |
| Washing speed (r/min) | 50r/min | 45r/min | 36r/min | 35r/min | 33r/min | 31r/min |
| Middle dewater speed (r/min) | 450r/min | 400r/min | 420r/min | 380r/min | 350r/min | 310r/min |
High dewater speed
(r/min) | 890r/min | 820r/min | 780r/min | 760r/min | 680r/min | 680r/min |
| Steam pipe | 3/4" | 3/4' ' | 1" | 1" | 1" | 1" |
| Cold water pipe | 3/4" | 3/4' ' | 3/2" | 3/2" | 3/2" | 3/2" |
| Hot water pipe | 3/4" | 3/4' ' | 3/2" | 3/2" | 3/2" | 3/2" |
| Drain valve | φ 70mm | φ 70mm | φ 140mm | φ 140mm | φ 140mm | φ 140mm |
| Power supply | Standard: 380+N-3PH-50HZ |
|
Overall size
(length*width*height) mm | 1010*1110
*1510 | 1100*1020
*1500 | 1410*1430
*1760 | 1650*1750
*1900 | 1850*1800
*2300 | 1850*2000
*2300 |
| Weight (kg) | 950kg | 980kg | 1900kg | 2600kg | 2800kg | 3130kg |
Taizhou Tongyang Washing Machinery Co., Ltd. is specializing in producing industrial and commercial washing machines with various specifications available.
Our main products include fully-automatic washers and extractors, carpet washing machines, extracting machines, drying machines and ironing machines. These products are new in type and low in power consumption. They are widely used in various trades, such as textile, printing, dyeing, silk, garments and chemical industries, hotels, restaurants and hospitals.
Recently, our factory successfully developed a chlorine washing machine and a foam washing machine which filled up domestic blank. They can replace the ones we had always imported from the USA.
Our products have a ready market not only in China but also in Southeast Asia. We ensure superb quality and reasonable price. We take full responsibility of repair, replacement or refund if serious quality problems happen. All our products enjoy life-long service and all the spare parts for them are available.
You are welcome to visit our factory and order our products.
