Product Specifications
| Prod Model: |
671RFGC |
| Markets: |
North America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Door Thickness: |
30mm-60mm |
| RFID Card: |
Opened by 125kHz Card or 13.56MHz Mifare Card |
| Fireproof Grade: |
UL |
| Hotel Software Interface: |
Dll Sdk |
| Usage: |
Hotel |
| Type: |
Mifare Card |
| Material: |
Stainless Steel |
| Certification: |
FCC |
Product Description

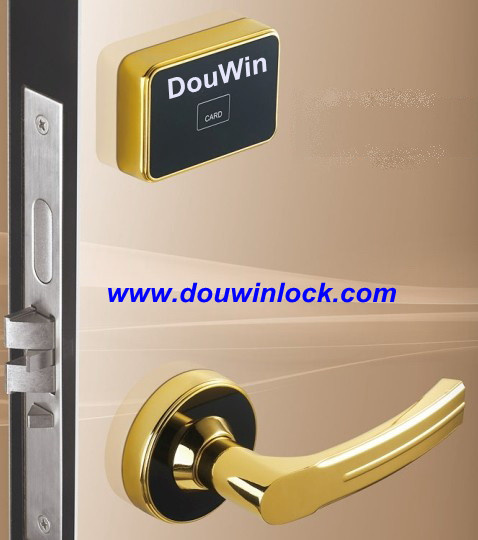

13.56MHz Mifare Card Split Lock software system for Hotel door
Mifare card lock System Construction
DouWin locks, computer, management software, Encoder, 125khz Temic card or 13.56Mhz mifare card, energy saving switch.
Multiple functions
1. Five levels of control: General control, building control, floor control, area control and room control.
2. Password control: System password and operating password together to ensure security.
3. Cipher coding to key card: Each card has a different code that cannot be copied. Compulsory decoding will destroy the card automatically.
4. Area control: Cards of different types and levels can open different locks in different locations.
5. Timing control: Working clock is set inside locks to control the effective time limit of card keys.
6. File record: All issued card keys have records including each opening(also mechanical key opening).
7. Loss reporting: Open function can be cancelled when the card is missed.
C. Strong compatibility and expansiveness
The system can be run above WINDOWS 3.1 operating system. In provided with strong expansiveness, it can link with the hotel management system. The system is in kind system interface which is easily operated.
Basic Technical Functional Index:
1. Power Supply: DC6V, use of 4 pieces of No. 5 (or No. 7) AA batteries, with lack of voltage indications.
2. Static Power Supply: <1u A
3. Dynamic Power Supply: About 200mA
4. Lifetime of battery: For the allowed door open times, it normally can exceed 20, 000.
5. Open door Record inside the lock: 512 lines for standard type.
6. Setting Requirement: Working temperature -20º C~70º C, humidity: 98%max.
7. Anti-static Electricity: 15, 000V, it ensures information inside the lock not missing under the interference of strong static electricity.
After-Sale service:
A. We are in charge of training work of installation(including lock and management software)for free in our factory.
B. Our period of warranty is two years. All the spare parts is free during the period. If it is really something wrong with our products we can't solve it, we will ask the customer send the bad lock back and change a good one to them for free.
C. If the customers have any question of our product, we can help them solve it by e-mail. We will help them until they solve it.
Certificate: FCC&CE
Driving means:
motor/motor&mechanic dual control |
Working power;
1.5v alkaline battery*4 |
Battery Life-Span:
about 20,000 times for IC card; about 12,000 times for RF card |
Low-voltage warning :
when low voltage warning is given, the door can still be opened fifty times. |
Opening time:
Effectively open the door within six seconds after inserting the card overtime the door wil be locked again automatically to guarantee security. |
|
Illegal card:The PCB will not be damaged when any illegal card, especially conductive metal card is inserted into the lock.The lock can still work normally under such conditions |
|
Antistatic ability: above 15,000V |
|
Working humidity:20%-90% |
Working temperature:-20vºC-+65ºC
|
DOUWIN Lock's main(douwinlock. COM) products consist of hotel lock, card key lock, 13.56MHz mifare lock, 125kHz RF lock, RFID card lock, IC card lock, combination lock, fingerprint lock, password+card lock, digital lock, hotel safe, hotel doorbell, hotel room lamp control system, cabinet lock, locker lock, electronic lock, magcard lock, magnetic card lock, IC lock, RF lock, mifare card lock, hotel card lock, hotel door lock, electronic door lock, hotel lock system, sauna lock, cabinet lock, one card pass, smart card lock, intelligent lock, ID lock, swipe card lock, stripe card lock, digital lock, energy saving switch, etc. Our products and systems are widely used in guesthouses, hotels, flats and office intelligent estates, and the quality and service of our products are widely acknowledged by our users.
Nowaday our hotel card door lock system can integrate with other access system(such as Parking system, hotel lobby entrance, elevator entrance, swimming pool entrance, Massage entrance, etc. ). Thus, the Guest can use his card open his room and other entrances(such as Parking system, hotel lobby entrance, elevator entrance, swimming pool entrance, Massage entrance, etc. ). It is convenient for hotel management.
For dependable and safety performance but low cost, DOUWIN Lock series of products are very popular to domestic markets. Especially, our locks passFCC, CE verification by SGS and have been exported to the worldwide for many years.
We may say should you favor us with inquiries for specific requirements(such as detailed type, quantity, destination), we are in a position to supply you with the first class products at competitive price. Please send your fax to us, so that we can confirm it.
