| Supplier: | Quellduis Holding Co., Ltd. |
|---|---|
| Price: | US $ 60-90/Piece |
| Min Order: | 100/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,EXW |
|
|

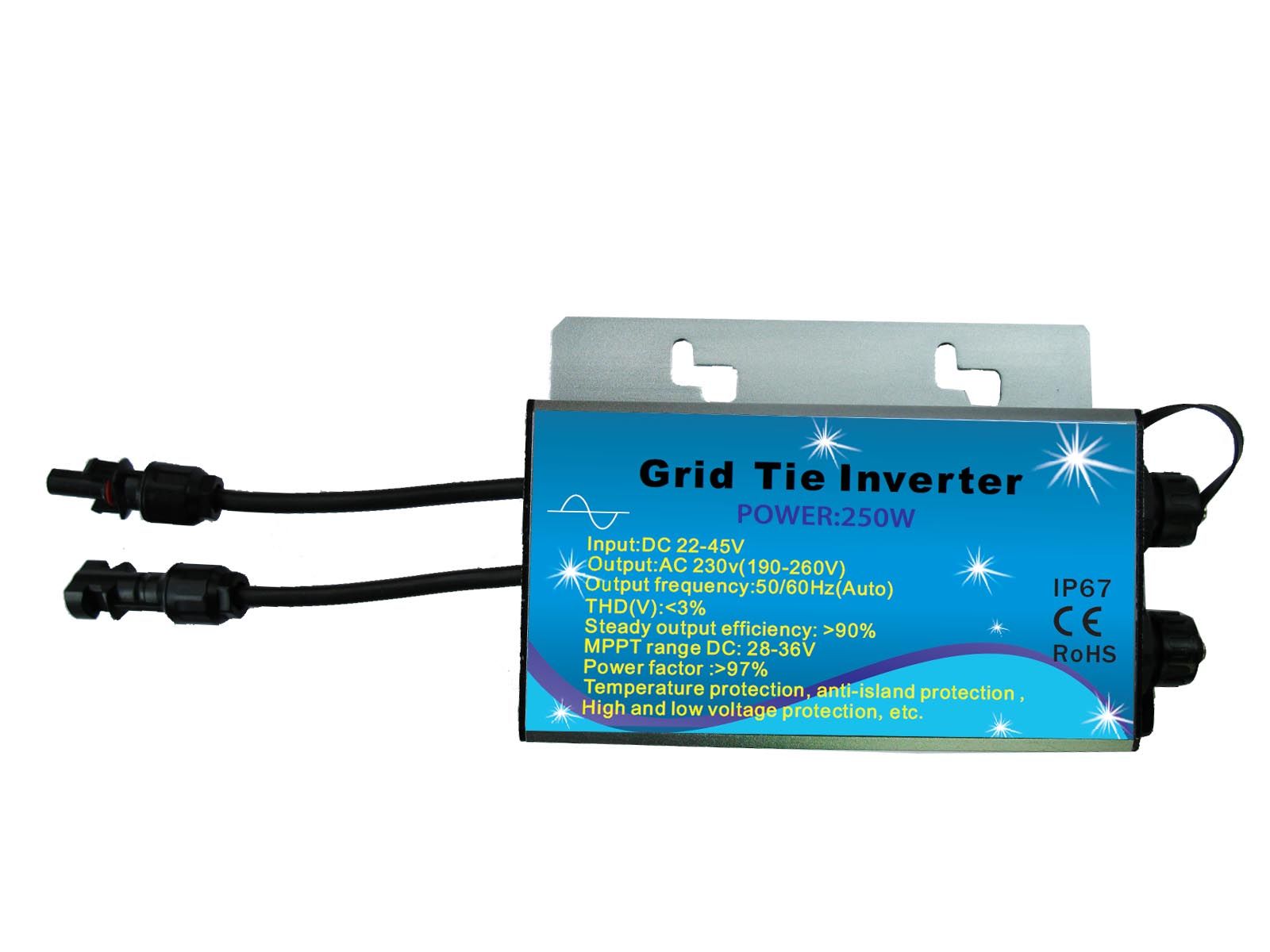

| Prod Model: | QS-250G-IP67 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: | 5 Years |
| Colour: | Iron Grey |
| Sample: | Available |
| OEM: | Available |
| Weight: | 2kgs |
| Type: | DC/AC Inverters |
| Phase: | Single |
| Power Source: | Solar Power |
| Output Power: | 201 - 300W |
| Item | QS-250G-IP67 |
|
Compatiable with solar panel |
72 cells/250-300W |
| Voc: 42-46V, Vmp:35-39V | |
| DC Voltage | 24-45Vdc |
| MPPT Voltage | 28-36V |
| MPPT Algorithm | CVT+PO |
| Efficiency | 91% |
| AC Voltage | 220VAC(170-250Vac) |
| Waveform | Pure Sine Wave |
| Max. Output Power Factor | 99%(at MPPT Voltage) |
| Frequency | 45Hz-53Hz/55Hz-63Hz(Automatic Detection and Adjustments) |
| Over Temperature | >65°C |
| Low Voltage Shut Down | <23V |
| Over Voltage Shut Down | >48V |
| Reverse Voltage Protection | Reverse Connection Circuit |
| Short Circuit | Fuse |
| Islanding Protection | Detect islanding within 0.02S, shut down output within 0.5S |
| Working Temperature | 25 to 60°C |
| Working Humidity | 0-90%(Waterproof Design) |
| Communication | RF: Wireless Communication |
| Waterproof | IP67 |
| Total Harmonic Distortion | THDIAC(V) |
| Phase Shift Rate | <1% |
| Standby Power | <2W |
| Cooling Ways | Natural Convection |
| Certificate | CE |
