1. Produce by manufacture dierctly in Qingdao
2. Full-developed hydrauliv system

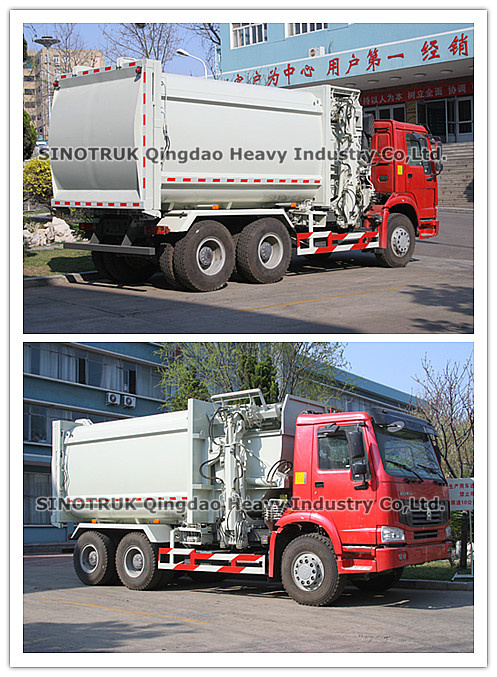

3. Side lifting garbage truck
4. Popular all around the world
Thanks a lot for paying our great attentions to our Company. I'm Levana from Sinotruk Qingdao Heavy Industry Co. Ltd
I would like to take this opportunity to introduce our company to you very briefly. Sinotruk Qingdao Heavy Industry Co. Ltd is one of the wholly owned subsidiaries of China National Heavy Duty Truck Corp., Ltd. It is one of the biggest special truck R&D, manufacturing and exporting base in China. A bountiful supply of spare parts, considerate after-sales services, abundant technical strength can provide timely and satisfaction service for the overseas users.
|
Model |
ZZ3257M3847C |
Gross Vehicle Weight |
25000kg |
|
Engine |
Brand SINOTRUK |
Dead Weight |
14690kg |
|
WD615.97C EURO III |
Tyres |
12.00R20(Radial) |
|
Maximum Output |
300HP |
Cab |
HW70(no bed) |
|
Loading Mass |
10180kg |
Rated engine power
(KW/r/min) |
220/2200 |
Lifting time of
filler (s) |
8 to 10 |
|
Transmission |
HW15710
(10forwards, 2reverse) |
Pressure of fluid
system (Mpa) |
18 |
|
Front Axle |
HF9
Max loading: 9000kg |
Time of one
filling cycle(s) |
≤ 45 |
|
Rear Axle |
AC16
Max loading: 16000kg |
Filler Volume |
2.0m3 |
|
Steering |
ZF8098 |
Discharging Angle |
≥ 43 |
|
Overall Dimension mm |
8075× 2500× 3490 |
SINOTRUK QINGDAO HEAVY INDUSTRY Co., Ltd (original named as Special Truck Company, CNHTC) (here reference SINOTRUK Qingdao) is located in Qingdao, a beautiful seaside city. It is one of the wholly owned subsidiaries of SINOTRUK and the famous enterprise in special truck industry in China.
In 2011, our company expands the production scope, and increases the engineering machinery products, then the company rename "Special Truck Company, CNHTC" to "SINOTRUK Qingdao Heavy Industry Co., Ltd", and move to new factory located in Qingdao High-tech Industrial Development Zone. With over 2, 000 staffs working there, SINOTRUK Qingdao has the capacity of manufacturing 20, 000 special trucks and over 60, 000 sets of hydraulic components per year. The company owns a fixed capital of USD400 million and occupying 899, 100 square meters. The main products cover Excavator, Dump Truck, Concrete Mixer Truck, Garbage Truck, Aircraft Tractor, Military Vehicle, Semi-trailer, Water Tank Truck, Fuel Tank Truck, Fire Fighting Truck, Mobile Workshop, hydraulic component, etc.
SINOTRUK Qingdao is one of the 52 national vehicle export base enterprises and 53% of the products are exported to more than 50 countries and regions, such as Southeast Asia, Africa, South America, Middle Asia and Russia, etc. SINOTRUK Qingdao can provide best service for the overseas users in plenty of spare parts supply, after-sales services, abundant technical strength, regular customers visit and professional training.
It is your choice to choose us, to supply directly from manufacturer, quality trucks, best service, genuine spare parts.
