Product Specifications
| Prod Model: |
HPD-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type Of Output: |
Two Output(AC to DC) |
| Type Of Power Supply: |
Open Frame |
| Output Type: |
Dual |
| Warranty: |
2 Years |
| Output Power: |
1 - 50W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
TUV,En60950 |
| Input Voltage: |
85~264VAC |
| Energy Transmission: |
Dual Output |
| Brand: |
Dhecn |
Product Description
Features:
· High efficiency, high reliability
· Universal AC input/ full range
· Low leakage current <0. 5Ma
· Protections: Short circuit/ Over load/ Over voltage / Over temp
· 100% full load burn-in test
· Cooling by free air convection
· Fixed switching frequency at 100KHz
· 2 years warranty
· Dimensions: 107*61*28mm(L*W*H)
Specification:
1)INPUT
· Voltage Range: 85~264VAC127~370VAC47~63Hz
· AC Current: 0. 65A/115VAC0. 4A/230VAC
· Efficiency: 71%(HPD-25A); 77%(HPD-25B); 73%(HPD-2505); 74%(HPD-2512); 75%(HPD-2515);
· Inrush Current: Cold start 32A
· Leakage Current: <0. 5 mA/240VAC
2)PROTECTION
· Over Load: >105% Protection type: Hiccup mode, recovers automatically after fault condition is removed
· Over Voltage: 115%~135% Protection type: Shut down o/p voltage, re-power on to recover
· OVER TEMP: U1≥ 135º C, shut down o/p voltage, recovers automatically after fault condition is removed
3)ENVIRONMENT
· Working Temp., Humidity: -10º C~+60º C; 20%~90 %RH
· Storage Temp., Humidity: -20º C~+85º C; 10%~95 %RH
· Vibration: 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes
4)SAFETY AND STANDARD
· Withstand Voltage: I/P-O/P: 3KVACI/P-FG: 1. 5KVACO/P-FG: 0. 5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
· Safety Standard: Design refer to UL60950-1, TUV EN60950-1
· EMC Standard: Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5

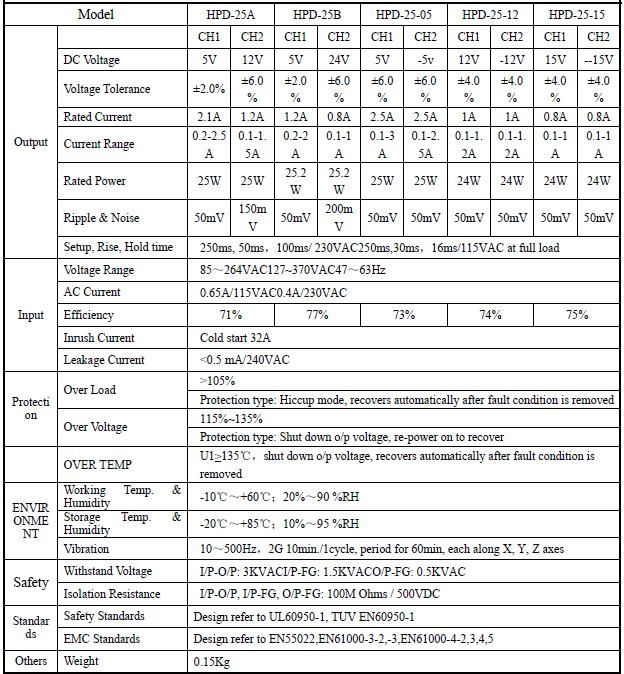

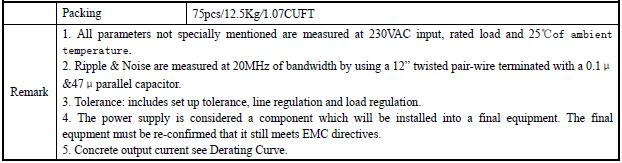

5)OUTPUT
· Model: HPD-25A | HPD-25B | HPD-2505 | HPD-2512 | HPD-2515
CH1 | CH2 | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 | CH1 | CH2
· DC Voltage: 5V | 12V | 5V | 24V | 5V | -5v | 12V | -12V | 15V | --15V
· Voltage Tolerance: ± 2. 0% | ± 6. 0% | ± 2. 0% | ± 6. 0% | ± 6. 0% | ± 6. 0% | ± 4. 0% | ± 4. 0% | ± 4. 0% | ± 4. 0%
· Rated Current: 2. 1A | 1. 2A | 1. 2A | 0. 8A | 2. 5A | 2. 5A | 1A | 1A | 0. 8A | 0. 8A
· Current Range: 0. 2-2. 5A | 0. 1-1. 5A | 0. 2-2A | 0. 1-1A | 0. 1-3A | 0. 1-2. 5A | 0. 1-1. 2A | 0. 1-1. 2A | 0. 1-1A | 0. 1-1A
· Rated Power: 25W | 25W | 25. 2W | 25. 2W | 25W | 25W | 24W | 24W | 24W | 24W
· Ripple & Noise: 50mV | 150mV | 50mV | 200mV | 50mV | 50mV | 50mV | 50mV | 50mV | 50mV
· Setup, Rise, Hold Time: 250ms, 50ms, 100ms/ 230VAC250ms, 30ms, 16ms/115VAC at full load
