Hpu3006c Field-Testing Instrument
Product Specifications
| Prod Model: |
HPU3006C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy Class: |
0.05/0.1 |
| Output Frequency Range: |
45Hz~65Hz; |
| Input Current: |
Terminal Input: 0 ~ 5A (1A) |
| Clamp Type Meter Input: |
0 ~ 5A or 0 ~ 800A |
| Measuring Accuracy: |
Voltage: 0.1% ( 0.05% ) |
| Dimension: |
275mm(L) ×163mm(W) ×60mm(H) |
| Type: |
Universal Testing Machine |
| Weight: |
0-100Kg |
| Maxcapacity: |
0.1A~5A |
| Accuracy Grade: |
0 ~ 5A or 0 ~ 800A |
| Control: |
Computer Control and Manual Control |
| Power Source: |
10V ~ 450V |
Product Description

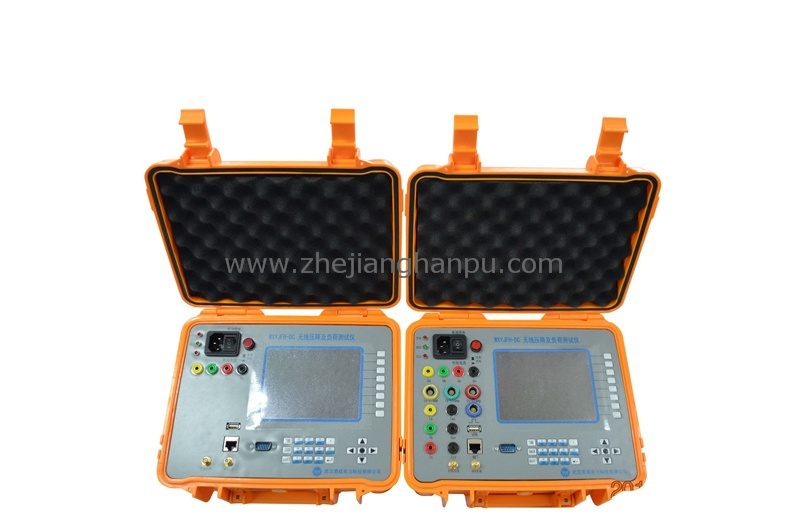

HPU3006 Field-testing Instrument
1. FeaturesThe field-testing instrument HPU-3006 is made by using the newest
international digital electron technical skill.
To use DSP, the Digital Signal processor, as the axis to install this intelligent comprehensive automation field testing instrument, which comes
with a portable computer, operation menu suggestion.
This instrument is simultaneously able to measure the value of single or 3 phase parameters as voltage, current, frequency, energy, power factorand etc. In the field, it can test the various type of energy meter, and it also can analyse harmonic and judge wiring connection. The results can be saved for a long term.
The HPU-3006 can communicate with computer by RS-232 port, and
save the measuring results into another computer disk.
This instrument is having the features of high accuracy, good stability,
small volume, easy to carry on and simple to operate; which is the perfect field testing equipment for energy measuring department and comprehensive automation test. 2. Specification2.1 Accuracy class: 0.1 (0.05)2.2 Frequency range: 45Hz ~ 65Hz2.3 Input Voltage: 10V ~ 450V2.4 Input Current: Terminal input: 0 ~ 5A (1A)Clamp type meter input: 0 ~ 5A or 0 ~ 800A2.5 Measuring accuracy:Voltage: 0.1% ( 0.05% )Current: 0.1% (0.05% ) Terminal input),0.5%(Clamp type meter input)Watt/Var: 0.1% (0.05%) Terminal input),0.5%(Clamp type meter input)Watt/Var: 0.1% (0.05%) Terminal input),0.5%(Clamp type meter input)Power Factor: 0.1% (PF 0.5 - 1)Frequency: 0.05%2.6 The movement display on Vector diagram: it can have the movement display on vector diagram and measuring and displaying the phase voltage.2.7 Wiring: differentiate the wiring under the three phase three cable system, positive/negative 2.8Harmonic analysis: It can analyze the harmonic (up to 63 times) and test the distortion. Also, it can have the movement display for real wave form on random parameters which is under the testing. It has the feature of oscilloscope.2.9 Input Current: Clamp type meter input, 1A terminal input, 5A terminal input.2.10 Data: It can save 250 pieces information of energy meter in local facility2.11 Power supply: AC/DC 80~265V,It can automatic cut if voltage overstep limit.2.12 Communication port: RS232, It can online test with communicate compute.2.13 Volume: 280x225x155 (mm) 2.14 Weight: 3 kg
Hanpu Power Technology Co., Ltd is a Sino-foreign joint venture which is incorporated with Zhejiang Harnpu Power Technology Co., Ltd, Haiyan Hyper Electric Co., Ltd, Hangzhou Hsing Cheng Electrical Machinery Co., Ltd and Suzhou Hsing Cheng Power Technology COM., Ltd. We have inherited the experience, adios, tradition, market and service of four companies.
With 20 years of experience, our products is more than 20 series, and 200 types and cover Single and Three Phase Energy Meter Test Bench, Portable Meter Testing Equipment, Reference Standard Meter and various of Accessaries.
Hanpu covers an area of 13, 000 square meters and has a standard factory building more than 7000 square meters. Technical staff w has more than 80 engineers ho engaged in research and development of new products, product technical updates, and we have more than 20 years' experience of automation of electric systems, electrical metering and IPD. Hanpu have an absolute competitive advantage in the domestic market as hundreds of specialize staff in R&D, manufacture, marketing and management.
Our company product has been exporting to many countries, such as Indonesia, Iran, Taiwan, Peru, India, Pakistan, Brazil, Portugal, Egypt, Malaysia, Lebanon, Viet Nam and Japan, and so on. All product is in strict accordance with GB and ISO9001: 2008.
Based on the China, Oriented towards the whole world, adhering to the "integrity, quality, technology, innovation, service" tenet, being one of best Power enterprises., we believe that tomorrow will be better!
