Piezoresistive Silicon Chip Employed.
MEMS Technology.
Cable Ventilated.
Non-aggressive Media Application.
Excellent long term stability.

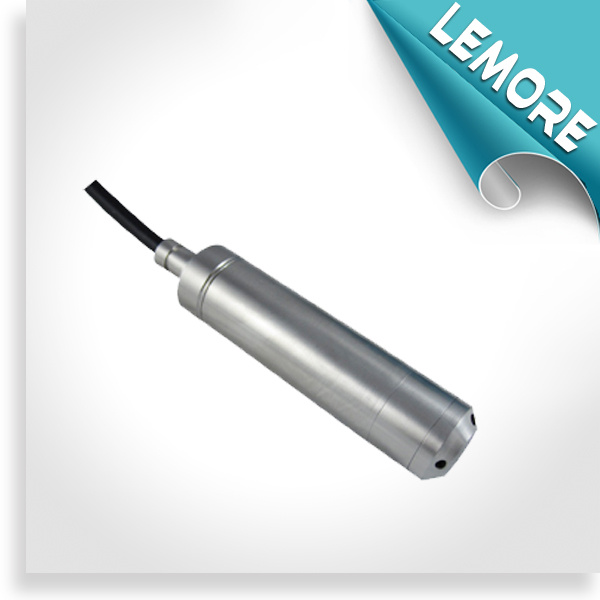

HR-PTM260 level transmitter is a standard and most economic transmitter applied in liquid level measuring. A high sensitivity piezoresistive silicon pressure chip is employed in the transmitter
Typical Application
Depth and level measurement in
1. Wells
2. Reservoirs
3. Lakes
4. Rivers
5. Sewage treatment plant
6. Water tank
7. Ground water monitoring
8. Surface water monitoring
Pressure range |
1m, 2m, 5m, 10m, 20m, 50m, 100m, 200m H2O |
Output Signal |
Output |
4 to 20mA / 1 to 5V / 0 to 5V |
Performance |
Accuracy(including linearity, hysteresis and repeatability) |
±0.5%F.S.(Typical) |
Overpressure |
200%F.S. |
Excitation |
24V DC |
Compensated temp. |
0--70ºC |
Medium temp. |
0--60ºC |
Storage temp. |
-40-125ºC |
Zero temp. coefficient |
≤±0.03%F.S./ ºC |
Span temp. coefficient |
≤±0.03%F.S./ ºC |
Long term stability |
<0.2%F.S./year |
Housing material |
Stainless Steel 304 (SS316 for sensor inside) |
Weight |
245g(approx.) |
The Shanghai Lemore Trading Co., Ltd. was founded in 2008, which is known as a professional pressure sensor and temperature control solution expert over global market, .
Shanghai Lemore invested in 5 standard factories which in dealing various electric appliances such as water pump pressure control, general application pressure sensor and temperature datalogger and other relevant products, Due to the Industry develpment and spare parts inner support. That's make sure our customers can get competitive price, reliable quality and good sevice from us.
Why choose us?
Client-orientated_let customers feel valuable to work with us
You can get professional technology support, enjoy absorbed service attitude, feel like you are the VIP customer.
Speed_reply your email within 24 hours
Flexibility_accept OEM and small trial orders, even can supply products with your target price
Further more, we always focus on new products in Chinese market.
Consistency_from the first contact to the after sell service with fixed sales team.
Professional_have related engineers, active sales team, offer competitive price in reliable quality
international standards such as CE, UL, FCC, IEC, KEMA, SEMKO, FIMKO, ESC, RoHS, VDE, CB
