Changzhou Hongjian Tools Co., Ltd. >> HRC55 2z Corner Raduis CNC Machine Tool for Steel

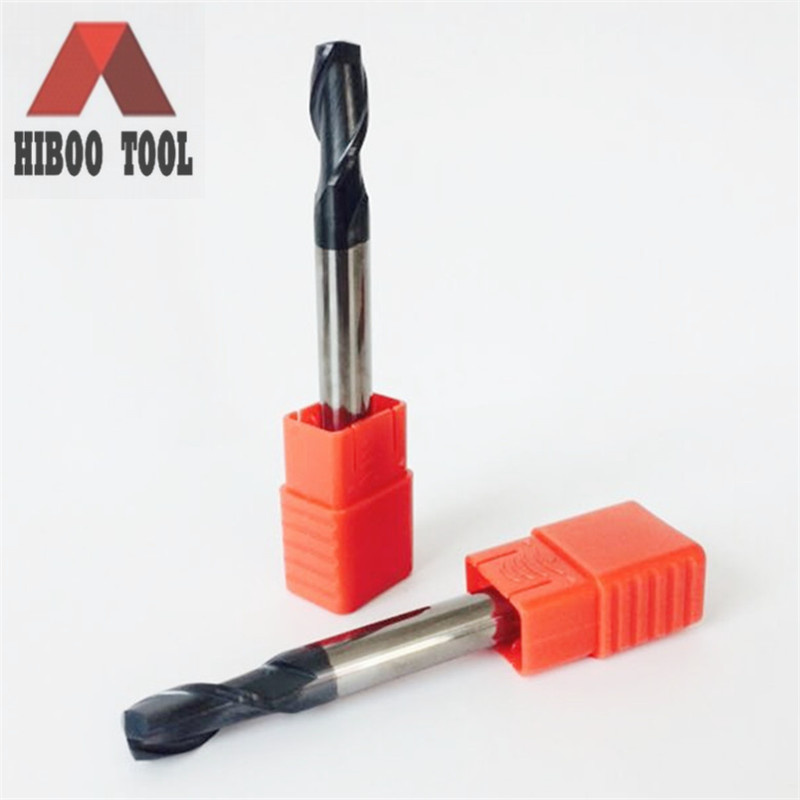

HRC55 2z Corner Raduis CNC Machine Tool for Steel

Name: HRC55 2z Corner Raduis CNC Machine Tool for Steel
Brand: china-manufacturer-directory.com
SKU: 761355715
Availability: InStock
Rating: 4.6 (55 reviews)

Supplier:	Changzhou Hongjian Tools Co., Ltd.
Price:	US $ 4.5-60/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	corner raduis end mills
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	1-20mm
Length:	50-100mm
Hardness:	HRC55
Cutting Flutes:	2z
Coating:	Altin
Samples:	Available
OEM:	Accept
Work Piece:	Steel,Stainless Steel,Cast Iron
Type:	Cutter
Work Type:	Spot Facing Work
Material:	Carbide

Product Description

HRC55 2Flutes corner raduis end mills

1. Raw Materials

HRC45	HRC55	HRC60	HRC65
YG10X	YG10.2 &WF25(Taiwan)	K44 & K40	Sandvik H10F
Grain Size:0.7um Co:10 % Flexural strength:3320N/mm2	Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2	Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2	Grain Size:0.4um Co:12.5 % Flexural strength:4300N/mm2

2. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.

3. Super TiAlN Coating, reduce the coeffiction of friction, and improve the tools life much.

	AlTiN	TiAIN	TiSiN	Nano
Hardness(HV)	3200	2800	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation Temp(°)	900	800	1000	1200
Friction Coeffient	0.3	0.3	0.45	0.4
Color	Black	Violet	Copper	Blue

4. Each end mill is inspected by Zoller measuring and inspected machine.

5. We accept the specification as your requirement.

6. Work Piece: Carbon steel, alloy steel, cast steel, tooling steel, mould steel, heat-treament steel. Aluminum alloy steel, Non ferrous alloy

order number	cutting	Flute	Shank	Corner	A.0.L
order number	d	l	D	R Corner	L
1×3×4D×R0.2×50L×2F	1	3	4	R0.2	50
1×3×4D×R0.3×50L×2F	1	3	4	R0.3	50
1.5×3×4D×R0.2×50L×2F	1.5	4	4	R0.2	50
1.5×3×4D×R0.3×50L×2F	1.5	4	4	R0.3	50
2×6×4D×R0.2×50L×2F	2	6	4	R0.2	50
2×6×4D×R0.3×50L×2F	2	6	4	R0.3	50
2×6×4D×R0.5×50L×2F	2	6	4	R0.5	50
2.5×8×4D×R0.2×50L×2F	2.5	6	4	R0.2	50
2.5×8×4D×R0.5×50L×2F	2.5	6	4	R0.5	50
3×8×3D×R0.3×50L×2F	3	8	3	R0.3	50
3×8×3D×R0.5×50L×2F	3	8	3	R0.5	50
3×8×4D×R0.3×50L×2F	3	8	4	R0.3	50
3×8×4D×R0.5×50L×2F	3	8	4	R0.5	50
4×10×4D×R0.5×50L×2F	4	10	4	R0.5	50
4×10×4D×R1.0×50L×2F	4	10	4	R1.0	50
4×10×6D×R0.5×50L×2F	4	10	6	R0.5	50
4×10×6D×R1.0×50L×2F	4	10	6	R1.0	50
5×13×6D×R0.5×50L×2F	5	13	6	R0.5	50
5×13×6D×R1.0×50L×2F	5	13	6	R1.0	50
6×15×6D×R0.5×50L×2F	6	15	6	R0.5	50
6×15×6D×R1.0×50L×2F	6	15	6	R1.0	50
8×20×8D×R0.5×50L×2F	8	20	8	R0.5	60
8×20×8D×R1.0×50L×2F	8	20	8	R1.0	60
8×20×8D×R1.5×50L×2F	8	20	8	R1.5	60
10×25×10D×R0.5×50L×2F	10	25	10	R0.5	75
10×25×10D×R1.0×50L×2F	10	25	10	R1.0	75
10×25×10D×R1.5×50L×2F	10	25	10	R1.5	75
10×25×10D×R2.0×50L×2F	10	25	10	R2.0	75
12×30×13D×R1.5×50L×2F	12	30	12	R1.5	75
12×30×13D×R2.0×50L×2F	12	30	12	R2.0	75

7.Hiboo Shipping and delivery
For samples , we dispatch your tools in 7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .

8.Why Choose Hiboo Tools
several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest

We located In Changzhou City, About 1 Hours from Shanghai, China. We has committed to manufacturing solid carbide end mills, Drills, reamers, Inserts, Both standard and Nonstandard tools, offering high quality cutting tools, competitive price and unequaled customer service.

Our carbide cutting tools For the medical fields including Orthodontics, Orthopedics, Catheters, and Surgical instruments; For the automotive parts and engines, motorcycles, snowmobiles, and bicycle industries; For pattern and mold makers; For general manufacturing in marine, recreational and consumer products industries; For the plastics industry, and For the woodworking industry.

Efficient workshop and 5AXIS grind machines run by skillful operators. We have our partners as complementarities sited around our factory in 5 Km who is product turning tools, holder And others, they are all around our factory in 5 Km. So, you can trust us that we must satisfy your needs.

We earned reputation of good quality, Fast producting, Delivery in time, reliable service. Hiboo will continue to introduce some new series of tools to meet different requirements. Sincerely Welcome to inquiry products and visit our company, thanks.
