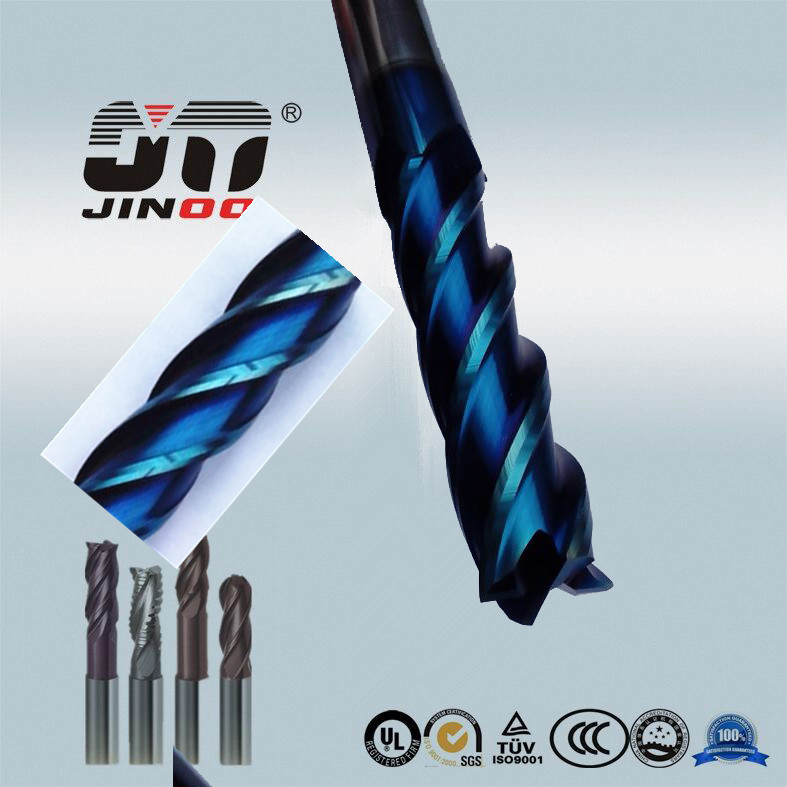

HRC60 Tungsten Solid Carbide Cutter 4 Flutes Square End Mill Tools

Product Specifications

Prod Model:	X1515
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	10mm
Cutting Length:	25mm
Shank Diamater:	10mm
Over Length:	75mm
Precision:	High Precision
Machine Type:	Milling Machine
Flutes:	2/4 Flutes
Suitable For:	Wood, Plastic, Aluminum
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Point to Point Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	High-End CNC Machine Tools

Product Description

HRC60 Tungsten Solid Carbide Cutter 4 Flutes Square End Mill Tools
1.Raw Material

HRC50

Gurhng K44UF

Grain Size:0.4um Co:12% Flexural strength:4300N/mm2

2. Best Material

SANDVIK of Sweden

kennameatl of American

Teagutec of Korean

Guhring of Germany


3.. The processing equipents:

Walter CNC machine from Germany

ANVA CNC machine from Australia

MICRO CNC machine from Germany

Rollomatic CNC machine from Switzerland

4.Strict Test

Zoller detecting instrument from Germany.

Guhring detecting instrument from Germany.

Mitutoyo detecting instrument from Japan

PARLEC tool presetter from America

5.Coating of tools


Type	Color	Coating Temperature	Thickness (um)	HV	Application Temperature	Friction coefficient
TiAlN	Purple-Gray	<600°C	3-5	3300	800 °C	0.3
AliTiN	Black	<600 °C	3-5	3500	900 °C	0.3
TiSiN	Copper	<600 °C	3-5	3500	1500 °C	0.4
NaNo	Blue	<600 °C	3-5	3800	1200 °C	0.4
CrN	Silver Gray	<480 °C	2-2.5	2500	700 °C	0.3

 6.PACKING
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group

7.DELIVERY TIME

For samples , we dispatch your tools in 7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity of HRC60 Tungsten Solid Carbide Cutter 4 Flutes Square End Mill Tools

 8.The following Specification for your refer, We also provide the OEM or ODM service

order  number	cutting	Flute	Shank	Corner	A. 0. L
	d	l	D	R  Corner	L
1 ×  3 ×  4D ×  R0.2 ×  50L ×  2F	1	3	4	R0.2	50
1 ×  3 ×  4D ×  R0.3 ×  50L ×  2F	1	3	4	R0.3	50
1.5 ×  3 ×  4D ×  R0.2 ×  50L ×  2F	1.5	4	4	R0.2	50
1.5 ×  3 ×  4D ×  R0.3 ×  50L ×  2F	1.5	4	4	R0.3	50
2 ×  6 ×  4D ×  R0.2 ×  50L ×  2F	2	6	4	R0.2	50
2 ×  6 ×  4D ×  R0.3 ×  50L ×  2F	2	6	4	R0.3	50
2 ×  6 ×  4D ×  R0.5 ×  50L ×  2F	2	6	4	R0.5	50
2.5 ×  8 ×  4D ×  R0.2 ×  50L ×  2F	2.5	6	4	R0.2	50
2.5 ×  8 ×  4D ×  R0.5 ×  50L ×  2F	2.5	6	4	R0.5	50
3 ×  8 ×  3D ×  R0.3 ×  50L ×  2F	3	8	3	R0.3	50
3 ×  8 ×  3D ×  R0.5 ×  50L ×  2F	3	8	3	R0.5	50
3 ×  8 ×  4D ×  R0.3 ×  50L ×  2F	3	8	4	R0.3	50
3 ×  8 ×  4D ×  R0.5 ×  50L ×  2F	3	8	4	R0.5	50
4 ×  10 ×  4D ×  R0.5 ×  50L ×  2F	4	10	4	R0.5	50
4 ×  10 ×  4D ×  R1.0 ×  50L ×  2F	4	10	4	R1.0	50
4 ×  10 ×  6D ×  R0.5 ×  50L ×  2F	4	10	6	R0.5	50
4 ×  10 ×  6D ×  R1.0 ×  50L ×  2F	4	10	6	R1.0	50
5 ×  13 ×  6D ×  R0.5 ×  50L ×  2F	5	13	6	R0.5	50
5 ×  13 ×  6D ×  R1.0 ×  50L ×  2F	5	13	6	R1.0	50
6 ×  15 ×  6D ×  R0.5 ×  50L ×  2F	6	15	6	R0.5	50
6 ×  15 ×  6D ×  R1.0 ×  50L ×  2F	6	15	6	R1.0	50
8 ×  20 ×  8D ×  R0.5 ×  50L ×  2F	8	20	8	R0.5	60
8 ×  20 ×  8D ×  R1.0 ×  50L ×  2F	8	20	8	R1.0	60
8 ×  20 ×  8D ×  R1.5 ×  50L ×  2F	8	20	8	R1.5	60
10 ×  25 ×  10D ×  R0.5 ×  50L ×  2F	10	25	10	R0.5	75
10 ×  25 ×  10D ×  R1.0 ×  50L ×  2F	10	25	10	R1.0	75
10 ×  25 ×  10D ×  R1.5 ×  50L ×  2F	10	25	10	R1.5	75
10 ×  25 ×  10D ×  R2.0 ×  50L ×  2F	10	25	10	R2.0	75
12 ×  30 ×  13D ×  R1.5 ×  50L ×  2F	12	30	12	R1.5	75
12 ×  30 ×  13D ×  R2.0 ×  50L ×  2F	12	30	12	R2.0	75
O rder   N umber	Diameter	Cutting Length	Shank Diameter	Overall Length
D1X3X4DX50X2F	1	3	4	50
D1.5X4X4DX50X2F	1.5	4	4	50
D2X6X4DX50X2F	2	6	4	50
D2.5X7X4DX50X2F	2.5	7	4	50
D3X8X3DX50X4F/ D3X8X4DX50X4F	3	8	3/4	50
D3.5X10X4DX50X4F	3.5	10	4	50
D4X11X4DX50X4F	4	11	4	50
D4.5X13X6DX50X4F	4.5	13	6	50
D5X13X5DX50X4F/ D5X13X6DX50X4F	5	13	5/6	50
D6X15X6DX50X4F	6	15	6	50
D8X20X8DX60X4F	8	20	8	60
D10X25X10DX75X4F	10	25	10	75
D12X30X12DX75X4F	12	30	12	75
D14X45X14DX100X4F	14	45	14	100
D16X45X16DX100X4F	16	45	16	100
D18X45X18DX100X4F	18	45	18	100
D20X45X20DX100X4F	20	45	20	100
D22X45X22DX100X4F	22	45	22	100
D25X45X25DX100X4F	25	45	25	100
