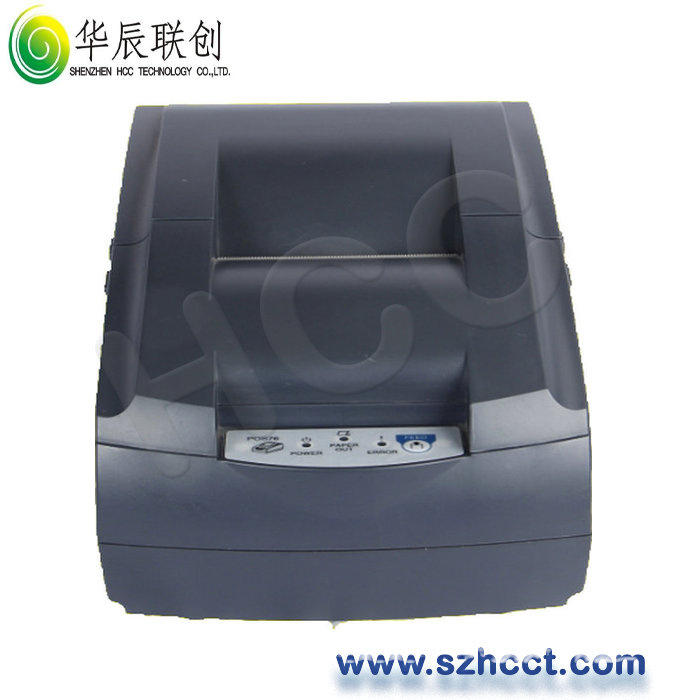

Hrp POS76II Impact DOT Matrix POS Printer
Product Specifications
| Prod Model: |
HRP POS76II |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
230x146x145mm |
| Weight: |
1.36kg |
Product Description
HRP POS76II 76mm Impact DOT Matrix POS Printer
Features
l 4.4 lines/s high printing speed, support various language
l Exquisite design, easy to use;
l Multiple interfaces optional, USB+Serial, USB+Parallel, USB+Serial+Ethernet.
l Support black mark printing, compatible with ESC/POS;
l Cutter optional, support double color printing;
Specifications
Printing Performance | Printing Method | 9 pins serial impact dot matrix |
| Printing Density | 210 dots (whole dots)/420 dots (half dots) |
| Effective Printing Width | 42CPL(7 X 9)/35CPL(9 X 9)
40CPL(7 X 9)/33CPL(9 X 9) |
| Printing Speed | 4.4 lines/sec |
| Paper Out Alarm | Support |
| Detection Method | Overheat Protection | Support |
| Black Mark Printing | Support |
| Interface Parameter | Serial Interface | DB-9 core socket |
| Parallel Interface | DB-25 core socket (Pin type) |
| USB Interface | Optional |
| Ethernet Interface | Optional |
| Power Supply Parameter | Drawer Port | DC24V, 1A, 6 line RJ-11 socket |
DC Power Supply
| Input DC 24V/2.5A |
| Reliability | MCBF | 9 million lines |
| Ribbon | Ribbon Cassette | ERC-39 purple, black or red and black double ribbon |
| Printing Paper | Paper Type | High quality 1 layer ordinary continuous paper or 2-3 layers copy paper |
| Printing Width | 76±0.5 mm |
| Paper Thickness | Single-layer paper thickness: 0.06 ~ 0.085 mm
Multi-layer paper thickness: 0.05 to 0.08 mm, total thickness <0.20 mm |
Paper Roll Diameter
| 75 mm (Outside Diameter) / 12 mm (Inside Diameter) |
| Power Supply Parameter | Loading Way | Not easy loading, with auto feeding function |
| Cutting Way | Manual tearing or auto cut |
| Operation Temperature/Humidity | 0~50ºC/10~80%(Relative humidity) |
| Storing Temperature/Humidity | -20~60ºC/10~90%(Relative humidity) |
| Outer Dimension (mm) | 251×160×138(L×W×H) |
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of Intelligent Commercial Equipment, such as:
Multi-payment product line -- Handheld POS terminal, Retail POS, mPOS etc.
Automatic Fare Collection (AFC) product line -- Bus validator machine and system etc.
E-commerce Logistics and IOT industry product line -- Handheld PDA, Mobile printer, Barcode scanner / printer, RFID device etc.
Our factory had obtained ISO9001 certificates over 15 year, and production department is over 3, 000 SQM. We are also professional in OEM and ODM service, welcome to customize and develop the smart device to meet customers' indeed application.
Most of our products have passed CE/FCC/RoHS international standard, and also approved by Unionpay, EMV, PCI, Visa, MasterCard Industry Professional Certifications, which greatly ensure the highest level safety and quality of our products.
In the past 11 years, we have deepened in printing and payment industry and expanded markets in Southeast and Central Asia, Middle East Asia, South America, Africa and Europe etc. Our products obtain sustained growing market share, and exported to clients over 100 foreign countries and regions.
Our company's slogan is "Professional Solution Provider for Intelligent Commercial Equipment --- Smart and Reliable".
Shenzhen HCC sincerely wish to cooperate with your esteemed company, and provide most suitable products and solution to your customers. We co-create one more Intelligent and glamorous business world.
Business Type: Manufacturer/Factory
Management System Certification: ISO 9001,HACCP
International Commercial Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, EXW
Terms of Payment: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 21~50 People
Export Year: 2008-03-05
Export Percentage: 71%~90%
Main Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Have Own Export License
Factory Address: Rm. 306, 3/F, Bldg. 6, Changyuan New Material Port, No. 2 Gaoxin C. Ave. 1st, Nanshan Dist, Shenzhen, Guangdong, China
R&D Capacity: OEM, ODM, Own Brand(HCCTG)
No. of R&D Staff: 5-10 People
No. of Production Lines: 6
Annual Output Value: US$10 Million - US$50 Million
