Product Specifications
| Prod Model: |
HS-2600/2800/21000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printing Material: |
Plastic Film, Paper |
| Color Number: |
2 Colors |
| Color & Page: |
Multi-Colour Printing Press |
| Plate: |
Relief Printing |
| Embossing Structure: |
Platen Press |
| Type: |
Ink Jet |

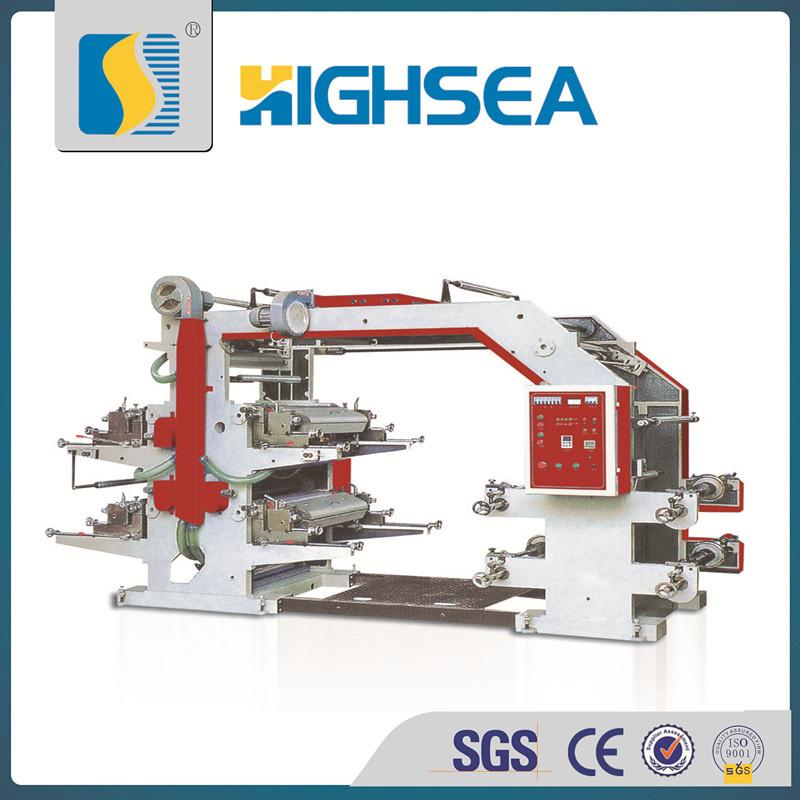

Product Description
Suitable Material:
This machine is suitable for aluminum Foll, BOPP, PET, PVC, PE, CPP and Paper etc roller to roller printing.
It is widely use in High-grade packaging material printing.
Specification:
1. The meter counter can set printing quantity according to the requirement. Stop the machine automatically at the set quantity or when the material is cut off.
2. Lift and lower the printing plate cylinder manually. It will automatically stir the printing ink after lifting
3. The printing ink is spread by the knurled cylinder with even ink color.
4. Realiable drying system coordinated with high-speed rotation, it will automatically brek circuit when the machine stops.
5.360 continuous and adjustable longitudinal register device.
6. There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
One-on-one full service:
1. Providing solutions to customer's project
2. Designing the machine upon user's needs
3. Manufacturing the machines in our factory
4. Testing before shipment
5. Delivering machines to user's factory
6. After-sale service
Understand your needs, Individual is designed upon user's need, In- time service, On-line/overseas technical support, Fast delivery, Always here for your service.
Shipping & Payment:
1. Terms of payment of machines:
30% T/T deposit in advance and balance 70% before shipment. Or 30% L/C payment, balanced during 30-60 days.
2. Delivery time:
Within 30-35 days from the date of receipt of 30% deposit.
3. Packing:
Standard wooden case
4. Warranty:
Free service of machine warranty by one year from the date of delivery.
Paid service after free service period, the labor and parts costs are charged. The buyer has to buy round tickets and arrange all local facilities including food, lodging, and during their staying period in buyer's country. Salary: 80 USD/Day
5. Port:
Ningbo
6. Trade Terms:
FOB, EXW&CIF
Our Company Warranty:
1. CE, SGS&ISO9001 institution CERTIFICATE
2. Attend Chinaplas Exhibition every year, Canton Fair sometimes and Asian Pacific exhibition optional.
3. Own product PATENT
4. Use international and national famous brand PARTS, like KASKAWA, CKD, DELTA etc. Provide global
After-sales service.
5. Provide Technical support online service, Technical files service, On-site training service and Spare parts replacement and repair service
Main technical Parameters:
|
Model |
HS-2600
|
HS-2800
|
HS-21000 |
|
Printing |
Max. Web Width |
600mm |
800mm |
1000mm |
|
Max. Effective Printing Width |
560mm |
760mm |
960mm |
|
Range of Repeat Printing Length |
191-914mm |
191-914mm |
191-914mm |
|
Roll |
Max. Diameter of Roll Material |
φ 600mm |
φ 600 |
φ 600 |
|
Plate |
Plate Thickness(including Two-side Clue Paper) |
2.38mm |
2.38mm |
2.38mm |
|
Machine |
Printing Speed |
50m/min |
50m/min |
50m/min |
|
Total Power(kw) |
8kw |
10kw |
12kw |
|
Weight(kg) |
1800kg |
2000kg |
2200kg |
|
Dimension(L*W*H) |
2.3*1.86*2.145m |
2.3*2.06*2.145m |
2.3*2.26*2.145m |
