Hs Best Price 6 Color Flexo Printing Machine

Name: Hs Best Price 6 Color Flexo Printing Machine
Brand: china-manufacturer-directory.com
SKU: 731313695
Availability: InStock
Rating: 4.3 (90 reviews)

Supplier:	Wenzhou High Sea Machinery Co., Ltd.
Price:	US $ 15000-38500set
Min Order:	1set
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	HS-61000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	High Sea
Colors:	6
Delivery Time:	30-45days
Port:	Ningbo
Width Of Printing:	1000mm
Length Of Printing:	180-990mm
Speed Of Printing:	80m/Min
Total Of Power:	28kw
Weight Of Machine:	480020002800
Voltage:	380V

Product Description

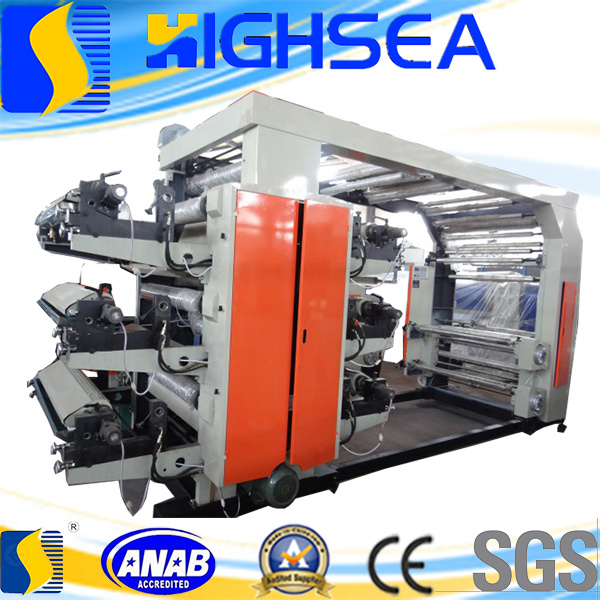

Hs Best Price 6 Color flexo printing machine
Use:
This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Characteristics:
1. Easy operation, flexible starting, accurate colour register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with even ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360 degree continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Model	Printing Width	Printing length		Printing speed		Plate Thickness		Machine Dimension
HS-6600	600mm	180-990mm		80m/min		2.38mm		4800×1600×2400mm
HS-6800	800mm	180-990mm		80m/min		2.38mm		4800×1800×2800mm
HS-61000	1000mm	180-990mm		80m/min		2.38mm		4800×2000×2800mm
Printing width Item	600mm	800mm	1000mm		1200mm	1400mm	1600mm	1800mm	2000mm
Printing material	Single adhesive paper ,Double adhesive paper ,Copper plate paper ,Kraft paper :50-180g/ m 2 Single filter membrance paper ,Double filter membrance paper : 80-300g/ m 2
Printing color	4 special color
Material feeding width	700mm	900mm	1100mm		1300mm	1500mm	1700mm	1900mm	2100mm
Printing length	7.5" -40"( 190mm-1016mm) /7.5" -50"( 190mm-1270mm) /7.5" -60"( 190mm-1524mm)
Printing plate lifting system	Pneumatic/Hydraulic press control
Mechanical speed	120m/min
Printing speed	10-100m/min
Anilox cylinder	80DK-170DK(Germany)/180LPI-800LPI
Register precision	Longitude: ±0.1mm Transverse: ±0.1mm
Rewinder/Unwinder DIA	ø 1000mm /ø 1200mm /ø 1500mm
Master motor	5.5W		7.5KW			11W		15KW
Rewinder motor	5.5KW					7.5KW
Unwinder motor	5.5KW					7.5KW
Electrical header	26KW		32KW			38KW		45KW
Blower of header	0.75KW		1.1 KW W			1.5 K W		2.2 K W
Blower of nature wind	0.75 KW		1.1 KW			1.5 KW		2.2 KW
Inking motor	370W					750W
Master frequency converter	5.5KW		7.5KW			11KW		15 KW
Master power	45KW		54KW			68KW		82KW
Weight	8100Kg	8760Kg	9300 Kg		9750 Kg	10120Kg	10500Kg	11000Kg	11700Kg
