Product Specifications
| Prod Model: |
HS-2600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
High Sea |
| Condition: |
New |
| Delivery Time: |
25-35days |
| Place Of Origin: |
Wenzhou, Zhejiang, China |
| Computerized: |
Yes |
| Usage: |
Bill , Paper ,Plastic Printer |
| Automatic: |
Yes |
| Voltage: |
220V/380V |
| Gross Power: |
20kw |
| Dimensions(L*W*H): |
2800*1600*2200mm |
| Color & Page: |
Two-Colour Printing Press |
| Plate: |
Relief Printing |
| Embossing Structure: |
Rotary Letterpress |
| Type: |
Ink Jet |
| System Supported: |
Windowsxp32 |
| Printing Interface: |
USB2.0 |
| Printing Speed: |
6.7CPI |
Product Description

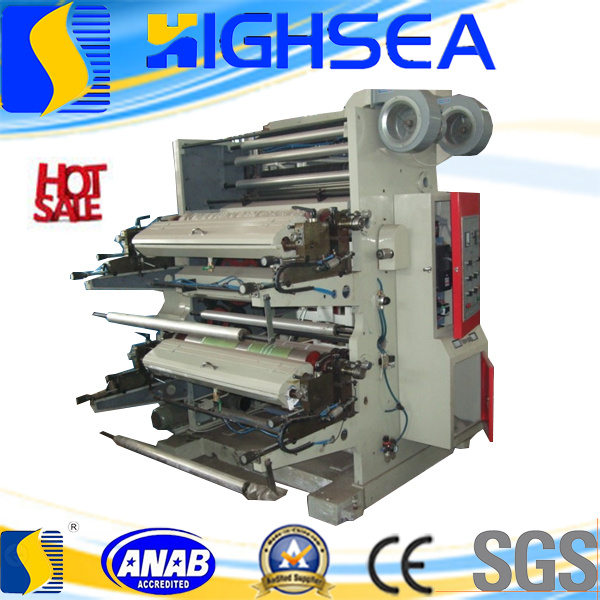

Hs CE 2 Color Flexographic Print Machine Relief Printing machinery
Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360 continuous and adjustable longitudinal register device.
7. The imported frequency control if motor speed adapts to different printing speeds.
8. There are inching /Stopping buttons on the plate roller base and material rolling rack, so as to make it easy operate the machine when the plate is installed.
Characteristics:
1)Ink: Adopt the automatic circle system, running ink by single small motor, with the electrical clutch device
2)Timing: Adopt Japanese inverter controlled, running by small fluctuations
3)Unwinding EPC: Adopt the high quality automatic EPC controller device
4)Unwinding and rewinding method: Adopt the magnetism Auto tension controller
5)Ink way: Our company has special design for the doctor blade device with the ink pump can suck the ink automatically
6)Up and down plate: Adopt the hydraulic pressure rising and down the printing plate automatically
Main Technical Parameter:
|
Model |
HS-2600 |
HS-2800 |
HS-21000 |
|
Printing Width |
600mm |
800mm |
1000mm |
|
Printing Length |
180-1200mm |
180-1200mm |
180-1200mm |
|
Printing Speed |
50m/min |
50m/min |
50m/min |
|
Thickness of Film |
2.38mm |
2.38mm |
2.38mm |
|
Diameter of Roll Material |
450mm |
450mm |
450mm |
|
Total Power |
kw |
kw |
kw |
|
Weight |
kg |
kg |
kg |
|
Overall Dimensions (L×W×H) |
2800×1600×2200mm |
2800×1800×2200mm |
2800×2000×2200mm |
Wenzhou High Sea Machinery Co., Ltd, established in 1996, is a professional manufacturer specializing in plastic packaging machinery. Since its establishment, our company has always been persisting in the faith of " quality first, service first, credibility first".
Our main products: T-shirt bag making machine, flat bag making machine, handle bag making machine, D-shape bag making machine, plastic glove making machine, film blowing machine, film extruder, printing machine, recycling machine, whole sets of plastic packaging machines and equipments etc.
The quality of our products takes the lead through the CE and ISO9001. On the basis of 15 years effort, our company has been strengthened with advanced technology and complete service.
Now our products have been sold well all over the country and exported to dozens of countries and regions such as East Europe, North America, South America, South-east Asian, Africa, the Middle East etc. Without any exception, we have received a high reputation from our customers who come from at home and abroad.
We sincerely welcome customers at home and abroad to pay a visit and build good relationships to get a win-win outcome.
