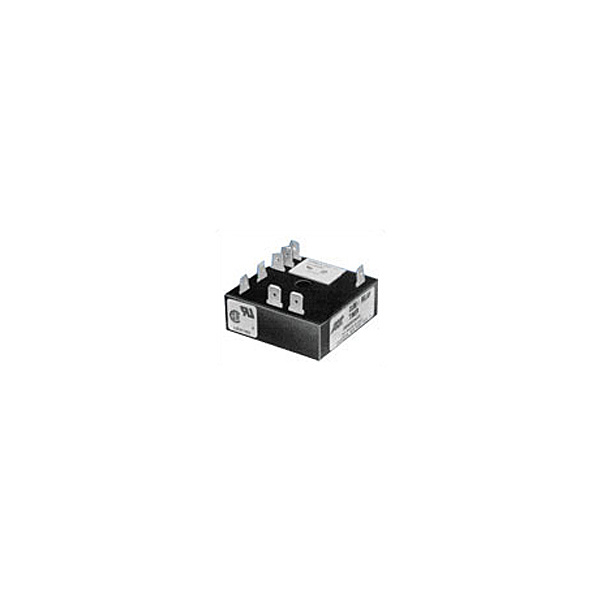

Hsj Series Solid State Timers

Name: Hsj Series Solid State Timers
Brand: China-Manufacturer-Directory.com
SKU: 765997005
Availability: InStock
Rating: 4.7 (80 reviews)

Supplier:	Elecal Electric Appliance Co., Ltd.
Price:	US $ 10/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Pole:	1
Size:	Miniature
Theory:	Thermal Relay
Type:	Electric Parameter Relay
Usage:	Household Appliances Relay
Electricity Type:	AC
Phase:	3

Product Description

FEATURES :

High current carrying capacity up to 20 amps
Transient protected
No leakage in N.O. position
No heat sinking required .
Available in any time delay period required .
Digital CMOS timing .
No minimum load required .
Totally encapsulated for protection from harsh environments .
100% Operational testing before shipping .

TIMING MODE :

Often called Interval, Interval Dealy, Delay on Energization with Instantaneous Transfer. When power is applied to the input voltage terminals, the load is energized immediately and the time delay cycle starts. At the end of the delay period, the timer transfers back to its pre-power position. Removal and re application of input voltage resets the timer .

SELECTING CODE :

Teahnical Data :

Input Voltage: VDC: 12, 24 or 48 VAC: 24, 48, 120 or 230, 50/60 Hz
Time Delay: Timing Mode: Delay On Make Type: Digital CMOS Time Range: 0.2 seconds to 24 hours Time Adjustments: Factory-fixed time period; variable, with adjustments on timer, or terminals for external resistor or potentiometer Repeatability: 0.5%
Setting Accuracy: Fixed time period: 10% of nominal time. Variable time range: +15% -5% max. time, 10% min. time
Reset/Recycle Time: 25 milliseconds Initiate Time: 6 milliseconds or less
Relay Output Form: Standard: SPST N.O. Optional: SPST N.C., SPDT
Relay Life Expectancy: Mechanical: 10 million operations Electrical: 100,000 operations Contact Material: Silver nickel, gold plated, or silver cadmium oxide
Protection: Polarity Protection: All DC units have reverse polarity protection Transient Protection: 18 joules or 30 joules (230VAC) MOV Dielectric Strength: 1800V RMS 60 Hz Temperature Ranges: Storage: -40ºCto +85ºC
Operating: -25ºCto +85ºC Physical Data: Mounting: Surface with one #8 screw Connection & Termination: 0.25" quick connects .

Dimension and connection diagram :
