Product Specifications
| Prod Model: |
HSM-35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
Single |
| Output Power: |
1 - 50W |
| Voltage Regulating Mode: |
Width Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
1 Year |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Dhecn |
| Input Voltage: |
176~264 VAC |

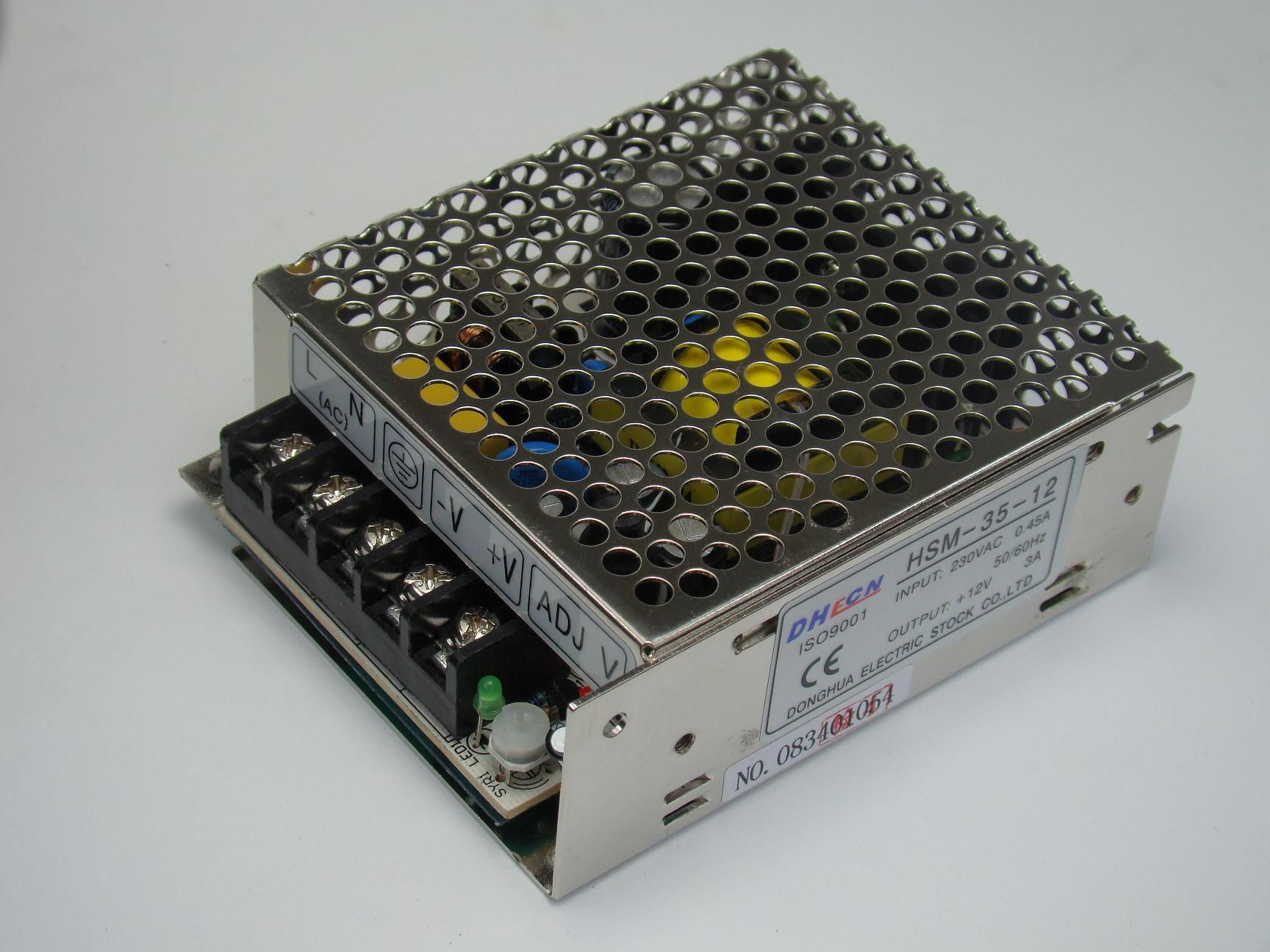

Product Description
Power supply
Features:
High efficiency, high reliability, low cost
Protections: Short circuit / Over load
Cooling by free air convection
LED indicator for power on
Fixed switching frequency >66KHz
1 year warranty
Dimensions: 99*82*36mm(L*W*H )

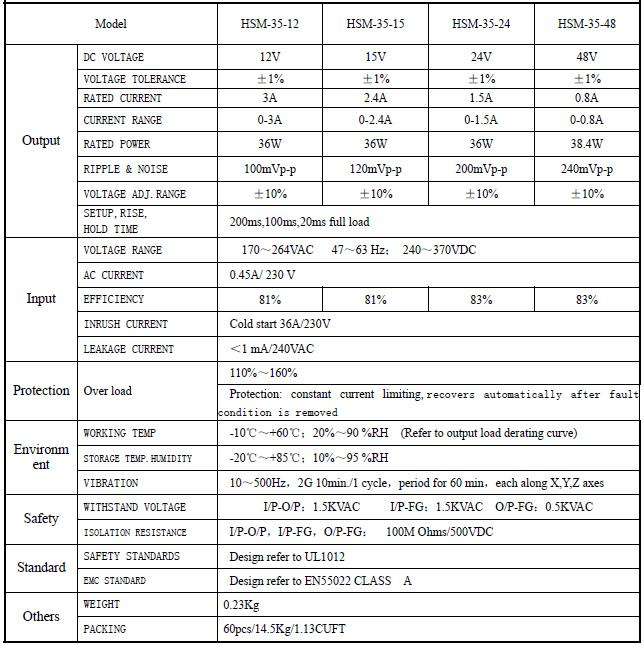

MODEL HSM-35-12 HSM-35-15 HSM-35-24 HSM-35-48
DC VOLTAGE 12V 15V 24V 48V
VOLTAGE TOLERANCE ± 1% ± 1% ± 1% ± 1%
RATED CURRENT 3A 2.4A 1.5A 0.8A
CURRENT RANGE 0-3A 0-2.4A 0-1.5A 0-0.8A
RATED POWER 36W 36W 36W 38.4W
RIPPLE & NOISE 120mVp-p 120mVp-p 200mVp-p 240mVp-p
DC ADJUSTMENT RANGE ± 10% ± 10% ± 10% ± 10%
OUTPUT
SETUP, RISE, HOLD TIME 200ms, 100ms, 20ms at full load
VOLTAGE RANGE AC 170264VAC 4763 HzDC 240370VDC
AC CURRENT 0.45A/ 230 V
EFFICIENCY 81% 81% 83% 83%
INRUSH CURRENT Cold start: 36A/230V
INPUT
LEAKAGE CURRENT 1 mA/240VAC
PROTECTION OVER LOAD
110%160% Constant current limiting, recovers automatically after fault
Condition is removed
WORKING TEMP., HUMIDITY -10+6020%90 %RH (Refer to output load derating curve)
ENVIRONMENT STORAGE TEMP., HUMIDITY -20+8510%95 %RH
VIBRATION 10500Hz, 2G 10min. /1cycle, period for 60 min, each along X, Y, Z axes
WITHSTAND VOLTAGE I/P-O/P2KVAC I/P-FG1.5KVAC O/P-FG0.5KVAC
SAFETY
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
SAFETY STANDARD Design refer to UL1012
STANDARD
EMC STANDARD EN55022 CLASS A
WEIGHT 0.3Kg
OTHERS
PACKING 60pcs/18Kg/0.9CUFT
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient
Temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1μ &
47μ Parallel capacitor.
3. Tolerance: Includes set up tolerance, line regulation and load regulation
