GuangZhou JieBao Electronics Technology Development Co., Ltd. >> Ht518 5inch Touch Screen Android Portable Data Terminal

Ht518 5inch Touch Screen Android Portable Data Terminal

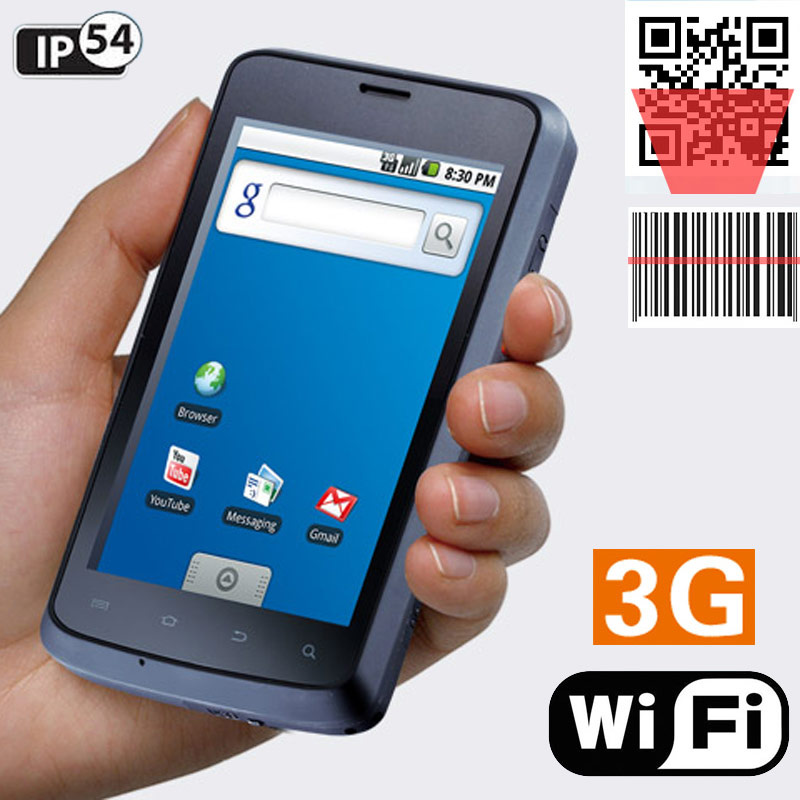

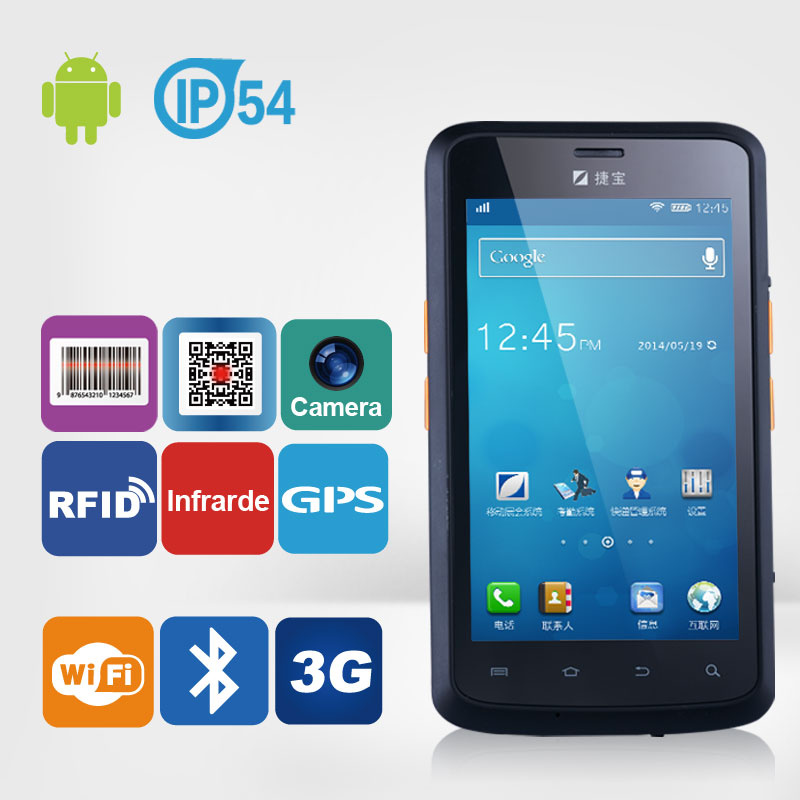

Name: Ht518 5inch Touch Screen Android Portable Data Terminal
Brand: china-manufacturer-directory.com
SKU: 698966232
Availability: InStock
Rating: 4.7 (60 reviews)

Supplier:	GuangZhou JieBao Electronics Technology Development Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	HT518
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Key Type:	Android Portable Data Terminal
Operating System:	Android 4.0
Processor:	Cortex-A8 1GHz
Weight:	285g
Protection Grade:	IP54
RFID:	Support 1443A Protocol
Memory Capacity:	512MB
Type:	Handheld Computer
OS:	Android
Screen Size:	5inch
CPU Type:	Cortex A8 1GHz
Classification:	Ordering PDA
Internet Connection:	Wi-Fi, 3G, GPRS
Applications:	Wireless Restaurant Food Ordering PDA

Product Description

Android Portable Data Terminal

Data Terminal Support Wi-Fi,3G,GPRS,Barcode,RFID,Bluetooth,GPS

HT518 is an IoT-based intelligent Wireless Portable Data Terminal, designed and manufactured by Jepower Technology based on Android4.0 operating platform.

Features

OS : Android 4.0

Industrial Protection : IP54

Screen : 5 inch

Symbol Scanning Head : 1D/2D Supported

Data Terminal with 1D/2D Barcode Scanner - Jepower HT518

With IP54 Industrial Protection of Waterproof and Dustproof

We are the verified supplier of

'State Grid' and 'China Southern Power Grid'.

Equipped with GSM/WCDMA and industrial full touch screen operation, HT518 is an IoT-based intelligent Data Terminal independently developed, designed and manufactured by Jepower Technology based on Android4.0 operating platform. With fashionable appearance, industrial design and a 5-inch 480*800 LCD, it's quite powerful and applicable to a wide range of industries such as retail, clothing, medical service, express delivery, asset management, traffic enforcement, government and public utilities.

Stable performance, firm and durable structural design, industrial IP54 packaging design standard, good performance in resistance to water and dust, ensure normal operation under complex and demanding conditions, high-capacity lithium polymer battery to ensure long service life, thus providing more comfortable and relaxing user experience.

Support GSM/WCDMA wireless communication mode. Configured with the universally applied WCDMA 3G communication model to automatically switch to 2G GPRS service without 3G network, so as to ensure data transmission speed and provide strong support to customers in real-time field data transmission.

Boasting over 10 years of R&D experience and abundant project implementation experience, Jepower Technology is able to provide professional technical support to customers, thus enjoying immediate professional support in case of any development problem.

Performance of HT518 Android Portable Data Terminal
CPU	Cortex-A8 Dominant frequency 1GHz
OS	Android 4.0
Memory	512MB
Flashmemory	512MB
Display	5-inch LCD (480*800)
Touchscreen	Multi-touch capacitor screen
System development software	Android SDK
Application environment	Support Java
Data collection
1D barcode*	Support: Code 39; Codabar; Code 128; Discrete 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E; EAN 8; EAN 13; MSI; EAN 128; Code 39;ISBN,ISSN
2D barcode*	1D Symbologies: Code 39; Codabar; Code 128; Discrete 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E; EAN 8; EAN 13; MSI; EAN 128; Code 39;ISBN,ISSN
2D barcode*	2D Symbologies: PDF417,MicroPDF417,Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse
Infrared communication*	Built-in, support DL/T645-97(07)regulation
RFID*	Support 1443A protocol
GPS*	Positional accuracy less than 10m, rate accuracy less than 0.01m/s
Wireless Communication
WiFi*	IEEE 802.11b/g/n
Communication Module*	Support GSM / WCDMA
Bluetooth*	Support protocol version 2.0 (optional configuration, built-in),support Bluetooth communication and printing.
Physical Parameters
Camera*	5 megapixels with Auto-Focus and Flashlight
Dimension	151mm(length)84mm(width)18.7mm(thickness)
Weight	<285g (including battery)
Backlight	LED backlight, adjustable
Button	Four side buttons, 1 switch button, and three user-defined buttons
Battery capacity	3100mAH rechargeable polymer battery (Working time over 8hrs)
Expansion slot	SIM*1, Micro SD(TF)card
Speaker	Built in 1.2W speaker
Keyboard	Virtual QWERTY keyboard, handwriting input
Operating Environment
Working temperature	-10~+50°C
Storage temperature	-25~+70°C
Relative humidity	5%RH-95%RH (no condensation)
Anti-seismic height	6 sides could undertake the impact by falling from 4 feet (1.2m) to the cement ground for may times within the scope of operating temperature
Protection Grade	IP54 standard
Accessories
Optional accessories	USB Cable x1, Portable Charger x1, Battery x1, Softward Disc x1
Warranty	12 months (Accessories are exclusive)
PS. *mark stands for optional funtion

Guangzhou JIebao Electronic Technology Development Co. Ltd. which was established in 2001 and is located in Gao Tang Park, Guangzhou National Software Industry base, is a supplier and information service provider of smart terminal and solution for the internet of things industry.

JIebao has devoted to building and applying internet of things over the years. Relying on core intelligent technology and reliable products with perfect solutions, it has been rewarded "high and new tech enterprises", "software enterprise certificate" "ISO9001international quality management system certification enterprises", "CMMILevel 3 certification enterprises", "AAA level China Quality Credit Enterprise" and "the recommending enterprise selected for national power grid construction and reform". And its products are widely used in the internet of things industry such as smart power grid, smart business and smart logistics.

In the field of smart power grid, JIebao took the lead in boosting the intelligent development and application of Long-distance Meter Reading, Power Load Management Terminal, Transformer Terminal Unit, high/low voltage reactive compensation device, voltage monitor, and power routing inspection system device. It provides superior systematic solution for provincial administration of power supply in State Grid and China Southern Power Grid, serving as a pioneer in applying internet of things industry to smart power grid.

In the field of smart business, JIebao specializes in various smart terminals that integrate barcode technology and RFID, products such as cash register, financial POS, handheld terminal, electronic scale, scanner, bill printer, solutions and information service.

In the field of smart logistics, JIebao focuses on logistic management and sets up logistic digital management by intelligent technology, finally fulfills smart operation in all stages including storage, package, loading-unloading, route plan and risk control.

According to the national 12th 5-Year plan for the internet of things industry, in order to propel building smart city in different regions, JIebao promotes deep application of internet of things in various fields, among which smart power grid, smart business and smart logistics are the key area, and provides all-round technical support and solution, depending on the superior resource and project experience.

JIebao bears the mission of "enhancing efficiency by science and technology, producing profits by expertise" to meet the needs of society and industry, establish all-round industry application solution, promote the development of internet of things in society at large, and build a smart commercial society for better work and life.

Smart JIebao creates a world connected by things. JIebao devotes to promoting the technology of internet of things and makes contribution to the development of society informatization and intelligentization.
