Product Specifications
| Prod Model: |
CHS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cordierite |
| Common Specification: |
Diameter<120mm/Diameter<200mm,etc |
| Certification: |
ISO9001 |
| Component: |
Catalytic Converter |
| Discharge Standard: |
Euro IV |
| Body Material: |
Ceramic |
Product Description

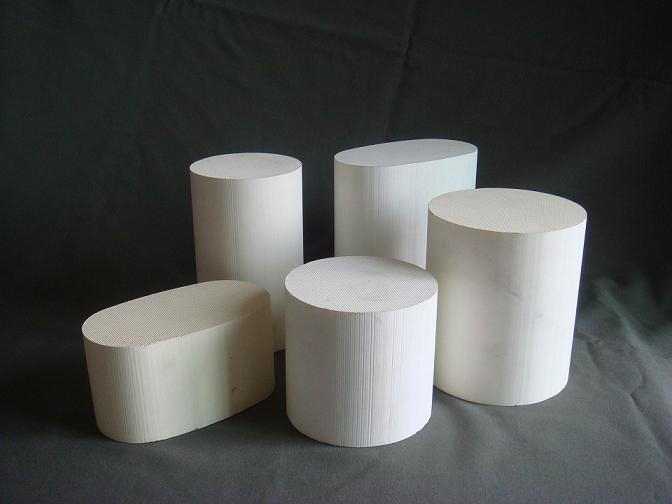

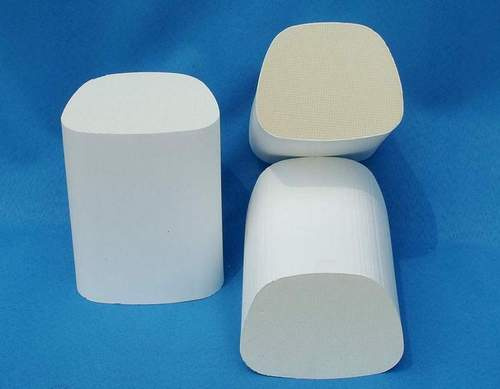

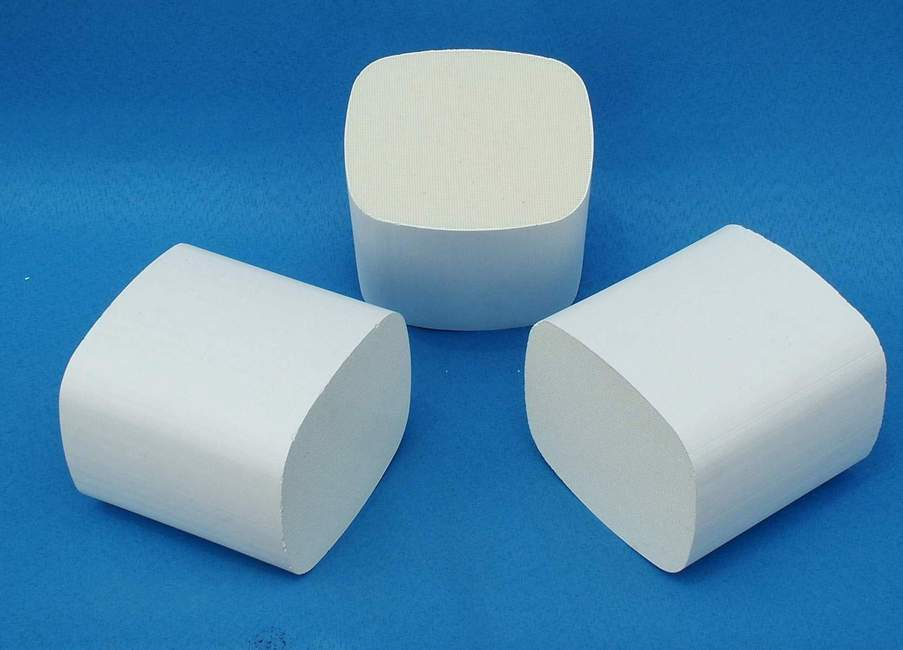

Ceramic honeycomb (Porous Cordierite Honeycomb Monolith) used for RTO application
Cordierite is a magnesium alumina silicate material, which has very low linear expansion, low
coefficient of thermal expansion and excellent resistance to thermal shock. Cordierite also offers
an excellent range of mechanical strength, porosity criteria, and excels in cost-effective extruded
and dry-pressed forms.
Used in the petroleum chemical engineering, garbage incineration, coating and paints chartered
plane, also applied in the industry waster gas and waste water processing etc
Specifications:
*Porous Cordierite Honeycomb
*Al2O3:31-34% ,
Material: Monolith, Cordierite
divided into two types:porous type and compact type
|
SiO2 |
Al2O3 |
MgO |
Fe2O3 |
Na2O |
K2O |
|
48-51% |
31-34% |
14-16% |
<0.5% |
<0.5% |
<0.5% |
|
Index |
Value |
|
Cordierite gross density(g/cm3) |
1.9-2.0 |
|
Average linear expansion(20-1000celsius degree) (10-6/k-1) |
<2 |
|
Specific heat capacity(KJ/Kg) |
830-900 |
|
Temperature cycle resistance(K) |
300 |
|
Max operation Temp.(celsius degree) |
1300 |
|
Thermal shock resistance(celsius degree) |
800 |
|
Acid resistance(%) |
>99 |
|
Alkali resistance(%) |
>85 |
|
Spec. |
Quantity of channels |
Wall thickness (mm) |
Surface area (m2/m3) |
Free volume (%) |
Average weight (min.) (kg/m3) |
|
150*150*300 |
60*60 |
0.5 |
1315 |
70 |
680 |
|
150*150*300 |
50*50 |
0.7 |
1050 |
58 |
680 |
|
150*150*300 |
40*40 |
0.7 |
883 |
65 |
518 |
|
150*150*300 |
25*25 |
1.0 |
573 |
67 |
502 |
