Product Specifications
| Prod Model: |
HTF-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Voltage: |
300V |
| Cross-Section Shape: |
Round |
| Connection Type: |
Seamless |
| Standard: |
UL E249875 |
| Morphology: |
Solid |
| Type: |
Tube |
Product Description

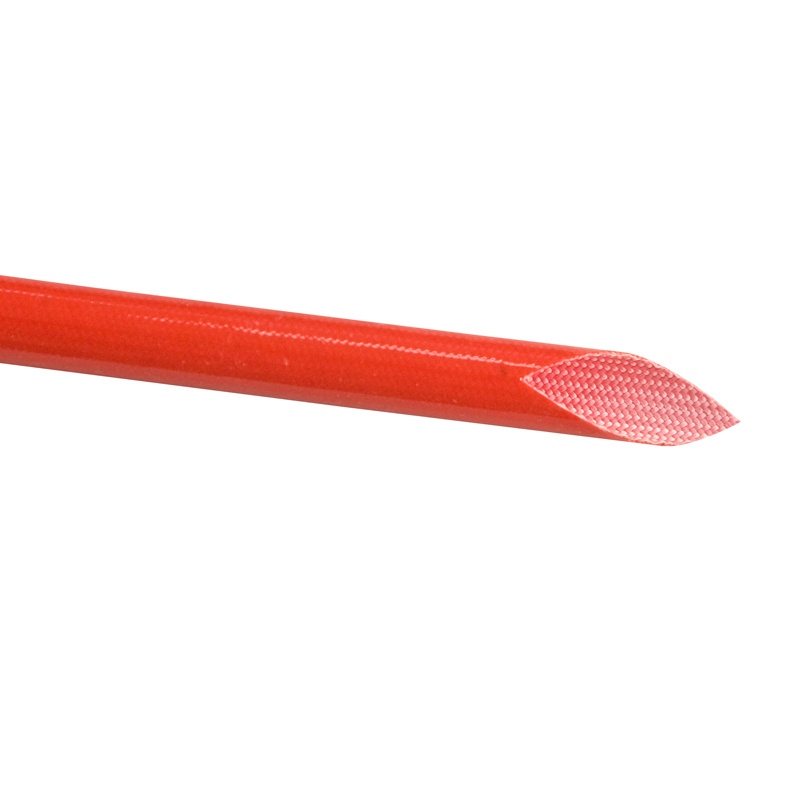

HTF-1 Fiberglass Braided Tubes
Technical Data:
1. Nominal Voltage: 300V
2. Temperature Range: -60 ° C ~+200° C
3. Testing Voltage: 1500V
4. Colours: White or made to order according to the customers' request.
5. Test by UL VW-1
6. USE: Insulation protection for electronic and electric equipment, lightings, industrial machine and electric heating products etc.
7. Certificate No.: UL E249875
8. Appearance: Natural white
9. Heat-proof: No harden after combustion in funace of 500 deg C± 1 deg C, slight smoke is allowed.
10. Cutting characteristic: After cut, section scatters.
Specifications:
| Inner diameter (mm) | Thickness | Remarks |
| Size | Tolerance | Min | Max |
|
| 1.0-1.5 | -0.1~+0.2 | 0.18 | 0.23 | Make to order according to the customers' request |
| 2.0-3.5 | -0.1~+0.3 | 0.21 | 0.26 |
| 4.0-6.0 | -0.1~+0.4 | 0.4 | 0.50 |
| 7.0-8.0 | -0.1~+0.5 | 0.5 | 0.58 |
| 9.0-12.0 | -0.1~+0.6 | 0.6 | 0.70 |
Wuxi Yuanda Electrical Material Co., Ltd. (Jiangyin Yuanda Electric Material Co., Ltd) is a Chinese manufacturer of various kinds of cables including car cables, coaxial cables for communications, high-temperature cables applicable to household appliances, electric machines, transformers and lightings, silicon rubber cables, teflon insulated cables, PE and PVC cables, high-temperature tubes/sleeves as well as other silicon rubber items.
