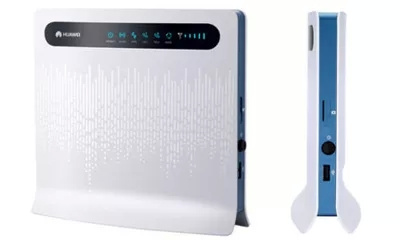

Huawei B593 4G Lte FDD-Lte 800/900/1800/2100/2600MHz Tdd2300/2600MHz CPE WiFi Gateway Router

Huawei B593 4G Lte FDD-Lte 800/900/1800/2100/2600MHz Tdd2300/2600MHz CPE WiFi Gateway Router
Supplier: Telewins (HK) Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: EXW
contact supplier

Product Specifications

Prod Model: HUAWEI B593
Type: Wireless
Firewall: Firewall
Transfer Rate: 150Mbps

Product Description

* World\'s First TDD/FDD LTE CPE Router


* 3G HSUPA/HSDPA/UMTS/DC-HSPA+ 900/2100 MHz


* 4G: LTE 800/900/1800/2100/2600 MHz


Huawei B593 4G LTE CPE Router is world\'s first 4G LTE TDD FDD Broadband CPE Router. It\'s launched to market by Sweden operator Tele 2, and HUAWEI B593 4G LTE Router also have many branch models such as HUAWEI B593U-12, B593s-82, B593s-42, B593u-501, B593u-513, B593u-91, B593s-601 etc. They are born to meet the 4G LTE Band requirements for different markets. They incorporates similar configuration and have even same functions.



Here now we just know some of the brand models of HUAWEI B593, they support 4G LTE Frequencies as below:

HUAWEI B593u-12:  LTE  FDD 800/900/1800/2100/2600MHz

HUAWEI B593s-22:  LTE  FDD 800/900/1800/2100/2600MHz and TDD 2600MHz, LTE Category 4 CPE (Speed up to 150Mbps)

HUAWEI B593s-82: TDD 2300/2600MHz

HUAWEI B593u-91: LTE TDD 2300/2600MHz

HUAWEI B593s-42:

HUAWEI B593u-501:

HUAWEI B593u-513:

HUAWEI B593u-41:



4G LTE CPE HUAWEI B593 Router is the first LTE TDD wireless broadband router of the world, supports LTE TDD/FDD 800/1800/2300/2600MHz, up to 100Mmbs download speed and access to up to 32 WIFI devices that become an ideal home entertainment and information exchange hub.It supports multi-devices simultaneous high speed access, perfect for SOHO\'s and small businesses with its connectivity options of the world.



Frequencies:

* 2G: EDGE/GPRS/GSM 850/900/1800/1900 MHz

* 3G HSUPA / HSDPA / UMTS / DC-HSPA+ 900/2100 MHz

* 4G LTE TDD FDD 800/900/1800/2100/2600 MHz



Features:

PORTS:
  * 4 x LAN
  * 2 x USB

Transmission speed 4G (MAX)

   * Download 100 Mbit / s
   * upload 50 Mbit / s


TRANSMISSION SPEED 3G (MAX)
   * download 42.2 Mbit / s
   * upload 5.76 Mbit / s

WI-FI: Wi-Fi(802.11 b / g / n)

Addistional antenna location: two antenna ports

SIZE: 190 mm x 35 mm x 176 mm

WEIGHT: 500g



Operation systems it\'s compatible with:

* Windows 2000/ Windows XP/ Windows Vista/ Windows 7
* Mac OS 10.5/ Mac OS 10.6/ Mac OS 10.7
* Linux

1. POWER Indicator                  2. WLAN LED                          3. WPS indicator                         4. TEL indicator                     5. MODE indicator
6. SIGNAL indicator                  7. SIM card slot                        8. POWER button                       9. USB Port                            10. Power supply position
11. USB-Port                             12. Telephone port                  13. LAN port                                14 LAN indicator lights         15. WPS button
16. RESET button                     17. WLAN mode



Application Instroduction:

1. Insert the SIM card into the SIM card slot.

2. Connect the power cord to the modem and the wall socket.

3. Turn on your computer and any other devices modem LAN and USB ports.

4. Turn on your modem POWER button.



CONNECTING PC TO THE MODEM WLAN CONNECTION

1. Turn on your modem POWER button.

2. Make an indicator that the WLAN is enabled. To activate the WLAN feature on and off by holding the WLAN button for more than 3 seconds.

3. Select your network from the list of wireless networks, the SSID name is the same as the name of your modem and press connect. Enter the network security key.

             Note: * The SSID and network security key can be found on the label on the back of the modem.

                        * You can review and change the WLAN security settings for the network-management page under General Settings> WLAN Settings > Security.

4. If the PIN code request is active, log network management page (http://192.168.1.1 ) and enter the correct PIN code in the field provided.


Network Management Page Opening

1. Make sure that your flash drive and a computer or device the connection is established correctly.

2. Start a web browser and enter the address http://192.168.1.1

3. If the PIN code request is active, asking the network management side of it. The default PIN is 0000.

Light Indicators:

light Mode               light                      Description
MODE                      Blue                     This light is a constant blue, when the modem is connected to the 4G network, but no data is transferred. The indicator light     flashes blue when data is being transferred.
MODE                      Green                 This indicator light is constantly green when the modem is connected to a 3G network, but no data is transferred. The indicator light flashes Green when data is being transferred.
MODE                      Orange               This light is constantly orange when the modem is connected to a 2G network, but no data is transferred. The indicator light flashes orange when data is being transferred.
MODE                      White                  This light will flash white when the modem to connect to the wireless network.
MODE                       Red                     This light is constantly red when the modem cannot connect to a wireless network or modem is not a wireless network.
MODE                  Mulberry                 This light is on when the SIM card is not recognized, or PIN has not been or PIN authentication fails.
WLAN                       On                        WLAN function is enabled.
LAN1-LAN4             On                       This light is on when the computer or other device is connected to the LAN port.
SIGNAL                    On                       More bars are lit, the stronger the wireless signal.

If you already have LTE CPE B593, you may need the 4G Antenna for Huawei B593, we can provide the original Huawei B593 as requested. There are three models for your reference:

1. First one: No cable, just plug the antenna to Huawei B593. Read more details about this antenna on http://www.4gltemall.com/huawei-b593-4g-antenna.html

 2. Second one: There is cable with the antenna, the antenna body with two connector suitable for LTE CPE B593. Read more details of this antenna on http://www.4gltemall.com/4g-antenna-two-sma-connector.html

3. Third one: the antenna body has only one antenna connector, the shape is different from the first one, you can check more details on http://www.4gltemall.com/huawei-b593-4g-lte-antenna.html

Here now there are many 4G LTE Category 4 Router available, such as Huawei B880 4G WiFi Router, Huawei B890 LTE Wireless Gateway. And we note that Huawei E5186 LTE Cat6 WiFi Router is released by Huawei. We believe the 4G Wireless Router will bring some changes to your life!

Telewins is a Hong Kong-based global online retailer that has been a worldwide business leader in selling 4G LTE Mobile Wireless Broadband since 2010. From the moment we founded Telewins, our vision was to empower people worldwide in buying them to share 4G LTE wireless technology, and most important to enjoy the fantastic 4G speed that the 4G broadband bring us. More and more people has chance have opportunity to see how 4G technology changes our lives!

Whoever you are, and wherever you are, 4G Mobile Broadband Shopping Mall offers the same price to all: The budget price possible. Whether you're a geek trying to find the latest new electronics, or a common shopper looking to get hold of the latest network products for your home, office or outdoor use, LteMifi. COM provides light-speed service and best wireless or wired network solutions. Our professional quality control system ensures our products are all original and not copy units while maintaining the highest of standards. Our technical team would give perfect network solution for our entire customers focusing every detail.

We serve customers from virtually every country in the world, and our goal is to be able to serve everyone worldwide. But our vision won't change: Share the Latest 4G LTE Mobile Broadband, Enjoy 4G Fantastic Speed with Anybody!
