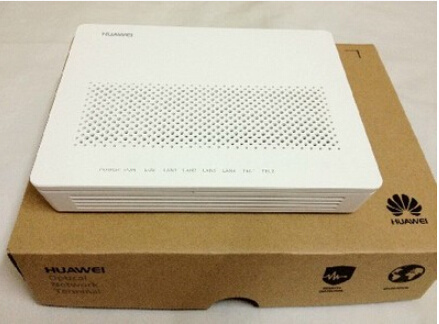

Huawei Hg8342r Gpon ONU SIP, English Software with WiFi

Product Specifications

Prod Model:	HG8342R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Silver/Black
Stock:	Yes
Surface:	New
Type:	Wireless
Firewall:	Firewall
Application:	SOHO
Transfer Rate:	10/100/1000Mbps
Ports:	≤4
Port Structure:	Modular
Network:	HSUPA

Product Description

Detailed Description
4x 1G LAN
2x POTS SIP
1x 300M WiFi
English setup interface, CE
EU power supply with CE


HUAWEI EchoLife HG8245/HG8245A/HG8245C/HG8245THUAWEI ONT/ONU 2POTS + 4GE + 1USB + 1Wi-Fi Bridge/Route+Voice
HUAWEI EchoLife HG8245/HG8245A/HG8245C/HG8245THUAWEI ONT/ONU 2POTS + 4GE + 1USB + 1Wi-Fi Bridge/Route+Voice
Huawei ONT/ONU EchoLife HG8010/8010H/8010C/HG8242/HG8110/8110F/HG8240/HG8240F/HG8245/HG8245A/HG8245C/HG8245T/HG8247/HG8247T/HG8447/HG850A/HG850E
The EchoLife HG8245, an optical network terminal (ONT), is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8245 provides two POTS ports, four GE/FE auto-adapting Ethernet ports and one Wi-Fi port. The HG8245 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8245 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

Features

GPON features

Class B+ optical module.
Security authentication mode: SN, password or SN+password.
Upstream/downstream FEC.

Voice features

SIP and H. 248 protocols.
Media stream and signaling stream separation.

Multicast features

IGMP V2&V3 snooping/IGMP proxy.

Wi-Fi features

802.11b/g/n, certified by the Wi-Fi Alliance.

Routing features

NAT function.
Internet, IPTV and VoIP services are automatically bound to ONT ports.
Virtual server, port trigger, DMZ, and DDNS.

Maintenance features

Local management using Web and remote management using TR069 and OMCI.
Optical power monitoring.
802.1ag Ethernet OAM.
Loop-line test of POTS ports, call emulation and PPPoE dialup emulation.

Reliability features

Dual systems for software protection.
Type B protection and rogue ONT detection.
Lithium battery backup and backup battery monitoring.

Greenengery-saving features

Dynamic power consumption adjustment.
With a backup battery, the guaranteed services can be selected flexibly.

Specifications

Dimensions(W x D x H): 195 mm × 174 mm × 34 mm
Port: 2POTS + 4GE + 1USB + 1Wi-Fi
Average power consumption: 8 W
Operating environmentTemperature: 0° C~+40° C;
Humidity: 5%95%, non-condensing
Power supplyAdapter input: 100240 V AC, 5060Hz;
Adapter output: 1114 V DC, 2 A
Weight: About 550g (including the power adapter)

Deployment Scenarios

Plug-and-play (PnP): Internet, IPTV and VoIP services can
