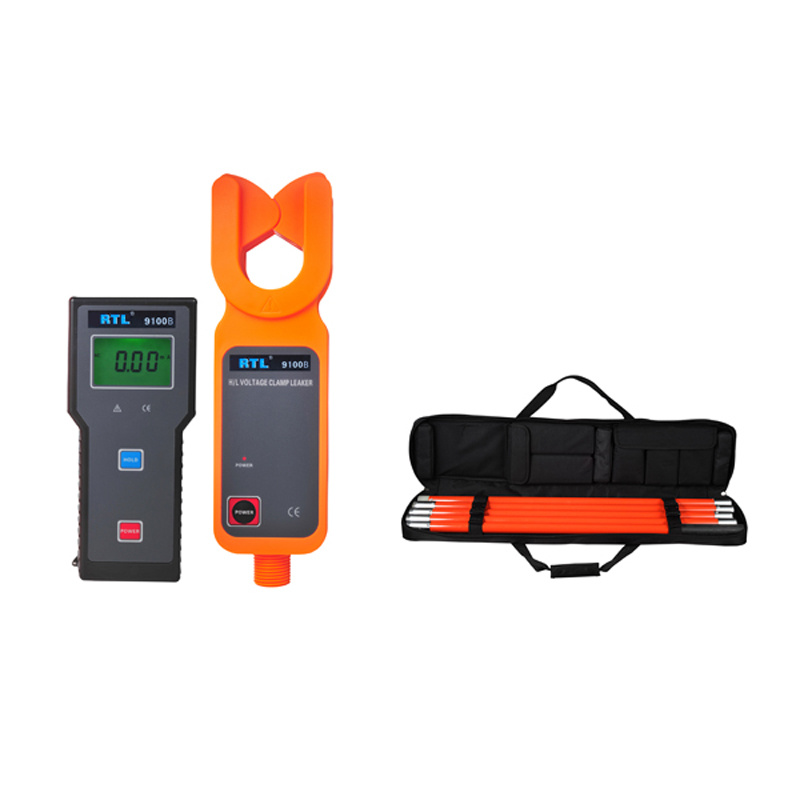

RTL H/L Voltage Clamp Meter has unique automatic plug function, which is specially designed for high voltage current measurement; adopt latest CT technology and integrated mask digital technology; composed of special high voltage detector, wireless receiver and high voltage insulation rods. Wireless transmission can receive the data by through storey building barriers or 30m without obstacle. Without insulated rods, it can used as high-precision low-voltage clamp meter and leakage current meter, can accurately measure the current or leakage current.
The integrated design of clamp and lead zone of RTL H/L Voltage Clamp Meter ensures the operation is safety, fast, high precision, high reliability and high stability test.
The rods of RTL wireless H/L voltage clamp meter can be use for high voltage line current measurement and online current measure below 60kV, also with the functions of peak value holding, data holding, data storage and wireless transmission, etc.
RTL H/L Voltage Clamp Meter is widely used in power plant, substation, industrial and mining enterprise, Inspection station, electrician maintenance department for current sensing and field working. It can also be used as high and low voltage changing ratio tester, that is, respectively test the first loop and secondary loop high and low voltage current, and then obtain the voltage change through manually calculation.
| Technical Parameter | |
| Function | High voltage AC current measurement, low voltage AC current, current leakage measurement, online AC current measurement |
| Power Supply | DC6V alkaline dry battery(1.5V AAA×4) |
| Test Mode | Clamp CT, integral approach |
| Transmission Mode | Wireless transmission, the maximum distance of straight line transmission is about 30m |
| Display Mode | 4 bit LCD display, with backlight function |
| LCD Dimension | 47mm×28.5mm |
| Meter Dimension | LWH: 68mm×245mm×40mm |
| Clamp Dimension | 33mm |
| Sampling Rate | 2 times/second |
| Measurement Scope | 0.00mA~600A (50/60Hz automatic) |
| Resolution | 0.01mA |
| Shift | 0.00mA~600A automatic shift |
| Accuracy (23ºC±5ºC, below 70%RH) | 0.00mA~100.0A: ±1%±5dgt |
| 100.0A~600.0A: ±2%±5dgt | |
| Line Voltage | Below 60KV line test (with 5 insulation rods operation) |
| Data Memory | 99 sets, memory process is shown by MEM , full storage is shown by blinking FULL |
| PEAK value maintaining | Automatically maintain the high test value, in usual testing mode, press key HOLD till the lighting of PEAK, that is, start PEAK to maintain this function. |
| Data Hold | In usual testing mode, press HOLD key to keep data, shown by "HOLD" |
| Data Access | "MR" indication, can access to all data |
| Overflow Display | Over-range overflow function: shown in "OL A" |
| Automatic Shutdown | 15 minutes after boot |
| Battery Voltage | When battery voltage is lower than 4.8V, battery voltage is shown in low symbol to remind battery replacement |
| Meter Weight | Detector: 335g (with battery), the total mass of meter: 2.5kg (including insulation rod and battery) |
| Working Temperature and Humidity | -25ºC~40ºC; below 80%Rh |
| Storage Temperature and Humidity | -10ºC~60ºC; below 70%Rh |
| Insulation Rod Dimension | φ32mm, 1m/piece (5pieces) |
| Insulation Strength | AC 100kV/rms (between the 5th insulation rod and high voltage current clamp core) |
| Structure | Anti-drip type II |
| Safety Provisions | IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT III(600V), IEC61326(EMC standard) |
| Accessories | Clamp Meter : 1 piece; receiver: 1 piece; meter box: 1 piece; insulation rod (1m): 5 pieces; battery (alkaline battery AAA): 4 pieces |
| Model | RTL9100 | RTL9100B | RTL9100S |
| Product Image | Bitmap | Bitmap | Bitmap |
| Function | Measurement of H/L AC leakage current, current online test;indirect test of current transforming ratio | ||
| Power supply | DC6V Alkaline LR03×4 | DC6V Alkaline LR03×8 | DC6V Alkaline LR03×4 |
| Display mode | 4 Digits LCD display, backlight; LCD dimension: 47mm×28.5mm | ||
| Test Mode | Clamp CT, integration mode | ||
| Transmission Mode | / | Wireless transmission, the maximum, distance of straight line transmission is about 30m | / |
| Meter Dimension | Tester: 68×245×40(mm) | Tester: 68×245×40(mm) Receiver: 75×170×30(mm) | Tester: 68×245×40(mm) |
| Clamp Size | 33mm | ||
| Resolution | 0.01mA | ||
| Range and Accuracy (23ºC±5ºC Below 80%RH) | 0.00mA~100.0mA: ±1%±5dgt | ||
| 100.0A~600A: ±2%±5dgt | |||
| Circuit Voltage | 60KV(bare wire below35KV) (operated with 5 isolation rods) | 10KV(bare wire below1KV) | |
| Data Memory | 99 sets, memory process is shown by MEM , full storage is shown by blinking FULL | ||
| PEAK Holding | Automatically maintain the high test value, in usual testing mode, Press key HOLD till the lighting of PEAK, that is, start PEAK to maintain this function. | ||
| Data Hold | In usual testing mode, press HOLD key to keep data, shown by HOLD | ||
| Data Access | MR indication, can access to all data | ||
| Overflow | Over-range overflow function: shown in OL A | ||
| Auto power-off | 15 minutes after boot | ||
| Battery replace | When battery voltage is lower than 4.8V, it will indicate to replace the battery. | ||
| Meter Mass | Tester: 335g ;Total: 2260g | Tester: 575g ;Total:2500g | Tester:335g ;Total:1600g |
| Size of rod | Φ32mm, 1m/piece (5 pieces) | ||
| Humiture | - 25ºC ~ 40ºC; below 80%Rh | ||
| Insulation Strength | AC 100kV/rms. (between the 5th insulation rod and high voltage current clamp core) | ||
| Accessories | Meter: 1pc, case: 1 pc Rod: 5 pcs, battery(LR03):4pcs | Meter:1 pc receiver:1 pc Case: 1 pc, rod:5pc Battery(LR03):8pc, | Meter:1pc, case:1pc, Rod:5pc,battery(LR03):4pc. |
