Product Specifications
| Prod Model: |
QHS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
304, 316 |
| Certification: |
CE, ISO, etc. |
| Processing Material: |
Natural Ingredients |
| Process: |
Mild Processing |
| Composition: |
Material Mixing |
Product Description

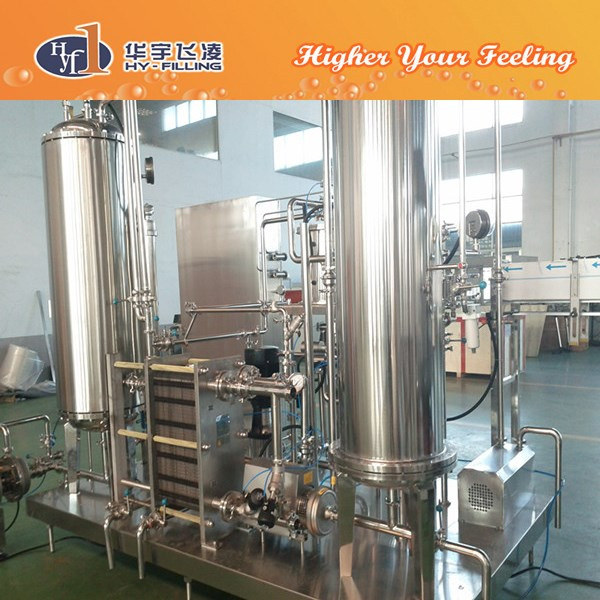

The machine is mainly used for carbonated beverage (water, syrup, carbon dioxide), such as lemon, cola, sprite, juice, etc.
Technical parameters
Model
(QHS) |
3000B |
5000B |
7000B |
10000B |
15000B |
Production Capacity (kg/h) |
3000kg/h |
5000kg/h |
7000kg/h |
10000kg/h |
15000kg/h |
Water-sugar mixing rate |
3:1--6:1 |
CO2 content |
3.8times |
Mixing precision |
≤1.5% |
Pressure of compressed air (Mpa) |
0.6-1 |
Consumption of compressed air |
5m3/h |
Pressure of CO2(Mpa) |
0.8--1 |
CO2 consumption (m3/h ) |
2 |
2.5 |
3 |
5 |
5 |
Pressure of purified water(Mpa) |
0.4-0.8Mpa |
0.4-0.8Mpa |
0.4-0.8Mpa |
0.4-0.8Mpa |
0.4-0.8Mpa |
Mixing temperature (°C) |
< 4°C |
< 4°C |
< 4°C |
< 4°C |
< 4°C |
Heat exchange area (m2) |
8 |
8 |
10 |
12 |
12 |
Power consumption (kw) |
4.45kw |
5.9kw |
7.2kw |
10.2kw |
13.6kw |
Dimension (mm) |
2900×1500×2610 |
3000×2000×3000 |
3000×2000×3000 |
3500×2300×3200 |
3800×2600x3200 |
|
|
|
|
|
|
|
HY-FILLING, as one of famous beverage and dairy packaging machinery manufactures in China, it is located in Zhangjiagang city which is very near Shanghai with beautiful scenery and convenient transportation. Owning the top-ranking R&D center and more than 20 senior engineers and 30 senior technicians, our products has covered all the domestic markets. Furthermore, we have exported our products all over the world, such as American, Argentina, Brazil, Russia, Poland, Turkey, Iran, South Africa, and Southeast Asia, etc, and more than 600 filling lines running all over the words till to now. We also offer our customers with the best technical plan, superior products, and perfect after-sale service to optimize the process of production, and supply our customers with reliable machinery. With persistent development, now our company is becoming larger and larger, thanks for your support and trust on our machinery. We consider "Exploring the highest technology in machinery industry; Creating a brilliant future in this field" as our company policy. And we deeply believe that tomorrow of HUAYU COMPANY will be much more brilliant.
Main Products:
1.2000-48000 BPH Mineral/Pure Water Bottling Line;
2.2000-40000 BPH Juice Bottling Line;
3.2000-40000 BPH Carbonated Beverage Bottling Line;
4.3000-40000 BPH Beer Bottling Line;
5.6000-30000BPH Aluminium Can Filling Line;
6.120-2000 Barrels/Hour 3-Gallon & 5-Gallon Filling Line;
7. Edible Oil Filling Line;
8. Aseptic Brick Packing Machine;
9. Aseptic Pouch Packing Machine (Pillow Type);
10. PET Preform Injection Machine;
11. Bottle Blow Moulding Machine;
12. Water Treatment;
13. UHT Plant;
14. Carbonating Mixer;
15. Bottle Unscrambler;
16. Film Shrink-wrapping or Carton Box Packaging Machine;
17. PA-Depalletizer;
18. Turn Key Project.
