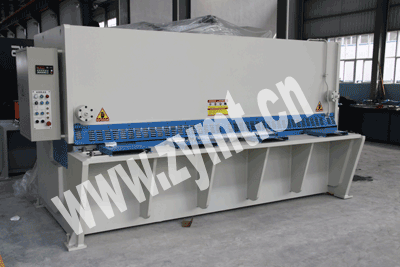

Hydraulic CNC Guillotine 8X3050 Pgp401/ CNC Cutting Machine/CNC Shearing Machine
Product Specifications
| Prod Model: |
QC12K-8X3050 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Equipped Controll System: |
Mpf Digital Display |
| Backgauge Travel: |
600mm |
| Controller With Movable Arm: |
Yes |
| Front And Back Protection Fence: |
Yes |
| Backgauge With Ball Screw: |
Yes |
| Shandow Line Lighting: |
Yes |
| Emergency Button: |
Yes |
| Performance Classification: |
Economical CNC Machine Tools |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Numerical Control: |
CNC/MNC |
| Movement Method: |
Linear Control |
| Control Method: |
Semi-Closed Loop Control |
Product Description
Key Words:
Guillotine Shear/Guillotine Shearing Machine/Hydraulic Guillotine Shearing Machine/Hydraulic Guillotine Shear/Hydraulic Shearing Machine/Hydraulic Shear Machine/Shearing Machine /Guillotine Cutter/Guillotine Cutting Machine/Hydraulic Guillotine Cutter/Hydraulic Guillotine Cutting Machine/Shear/Shearer
1. Digital Display2. 1 year warraty
3. CE/ISO
4. Ball Lead Screw and Liner Guide for Opt
Equipments for ZYS Series
Functions&Features

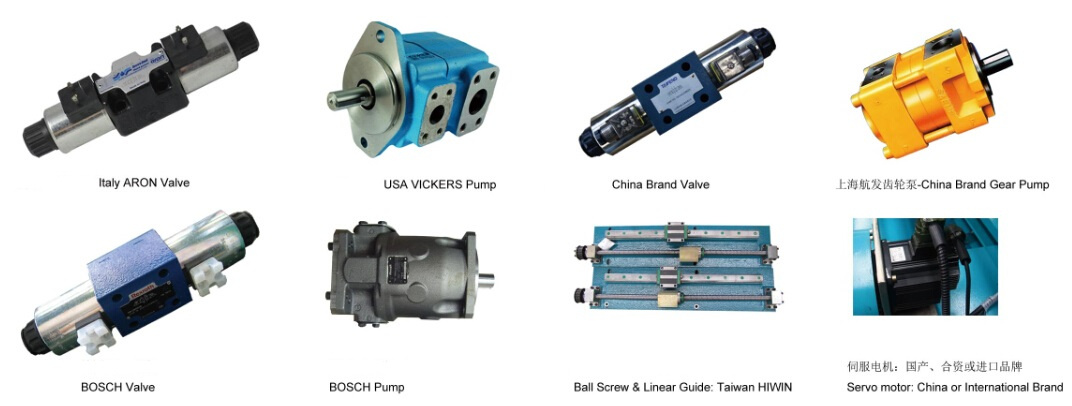

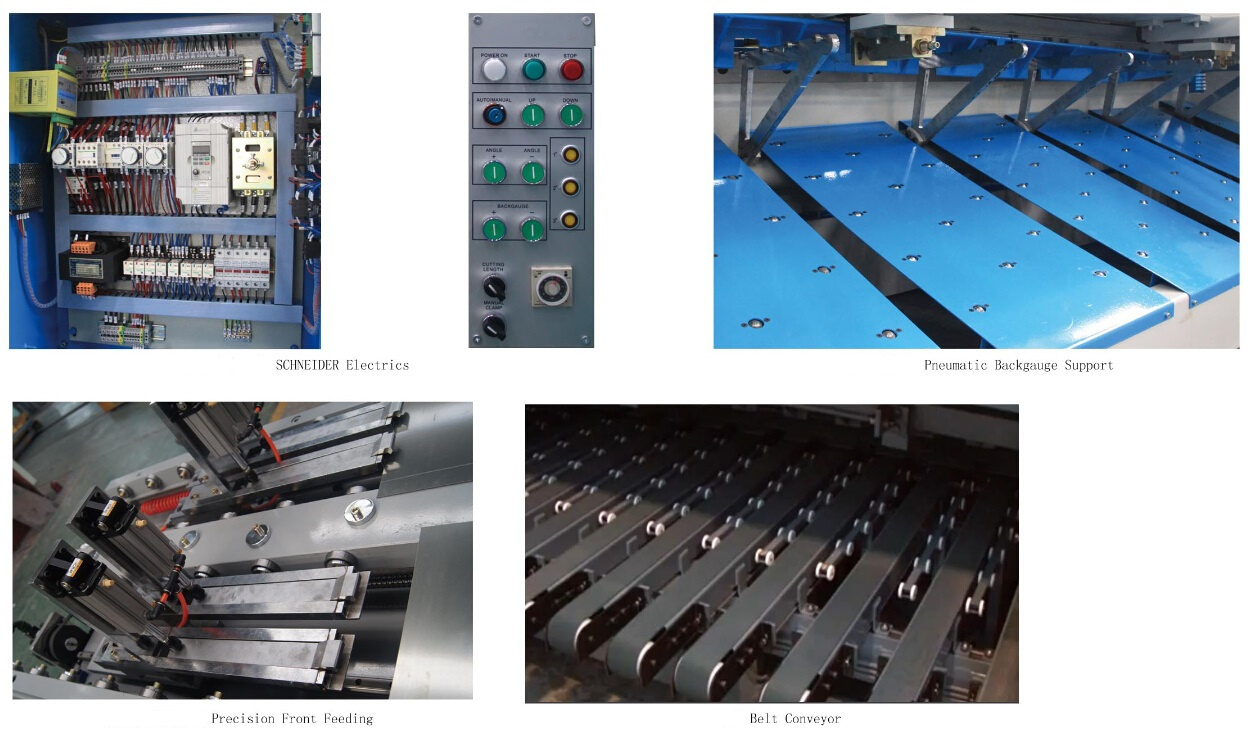

Standard Equipments for Digital & Single Axes GuillotineHydraulics: Italy ARON for 6-12mm models China TAIFENG for up 13mm modelsPump: USA VICKERS(6-12mm models)China HANGFA Gear Pump for up 13mm modelsElectrics: SCHNEIDER/TELEMECANIQUEO-rings: German FIETZ, Taiwan DZ, Japan NOKBaldes gap manual adjustableDigital: Italy MPFSingle Axes Controller: China E21S/E200SItaly HT071, German ELGO P40Standard Equipments for Multi-Axes CNC GuillotineHydraulics: Italy ARON for 6-12mm models China TAIFENG for up 13mm modelsPump: USA VICKERS(6-12mm models)China HANGFA Gear Pump for up 13mm modelsBall screw & linear guide: Taiwan HIWINElectrics: SCHNEIDER/TELEMECANIQUEQ-rings: German FIETZ, Taiwan DZ, Japan NOKBlades gap adjustable by motorizedServo motor: Chinese/Joint-venture/Imported BrandCNC controller: Holland DELEM DAC310/DAC360OptionalGerman BOSCH valve/pumpBackgauge Pneumatic SupportFront FeedingBelt Conveyor and collection mechanismLaser alignment deviceBack light guardsDAC-360The DAC-360 control provides a complete solution for shearing machines. It includes the control of backguage, cutting angle, stroke length and gap, based on state of the art electronics;Beside backgauge control, the DAC-360 automatically calculates the required setting for the cutting angle and gap depending on material properties and thickness. The stroke length is limited for minimal production time and related to the material length to cut;Full pressure control for clamping and cutting is on board the DAC-360;With its bright LCD screen a clear and easy operation is offered. The numerical programming is user-friendly and guides the operator through the programming possibilities;DAC-360 features:Bright LCD screen, Backgauge control, Retract function, Cutting angle control, Cutting gap control, Stroke length limitation, Force control, Manual movement of axes;Optional controllers:DELEM DAC310, China E200S, E21S, E10, Italy HT071, German ELGO P40, details please see P21-P22 of this catalogue.Packaging & Shipping(1)Before packing, the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.(2)Before loading, stable package, professional and skilled loader reduce damage of product during transport.
(3)After loading, our professional documentary staff will follow the order till the product departs from port.Our Services1. Shearing blades and accessories-Customized to your specifications. In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases-even for complex technical ones.
2. Service package
Basic: we offer you rapid trouble shooting through telephone support and costs for on-site missions are reduced.
Special: Engineers available to service machinery overseas for the necessary maintenance.
Partner: Our located dealers or customers who sell or use our machines are fully behind you, they are our friendly partner and supply good advice to you.
3. Technical Service(After-sale service)
Installation and start-up(Available for complex and big machines or if you have demand)Features
1. Front Operated Motorised Backgauge - Range 10 to 750mm;
2. Electro hydraulic variable rake angle adjustment 1° To 3° ;
3. Quick Blade gap adjustment by handle behind machine on both sides;
4. Individual pump and pressure setting for hydraulic holddowns;
5. Vickers double vane pump with individual pump for cutting and plate clamping;
6. Shadow line lighting and well design finger guard for clear view of cutting line;
7. Shear Blades - four sided, quality high-carbon high chrome blades D2 quality;
8. Manual inching mode for easy setting of Blades clearance;
9. Safety foot switch operation. Top blades will return to top position when foot is remove from foot pedal;
10. Hydraulic-full protection against overload through build-in safety valve;
11. 1 meter Side Squaring Arm with disappearing stops;
12. Ball screw and linde guide rail as optional for guarantee the higher precision;
13. Italy HT071 single axis controller as optional for customer choice.
Parameters
Model |
Cutting thickness
(mm) |
Cutting width
(mm) |
Cutting angle
(°) |
Backgauge range(mm) |
Stroke number
(times/min) |
Main motor
(kw) |
Weight
(kg) |
Overall dimensions
(L*W*H)(mm) |
4*2500 |
4 |
2500 |
1.5 |
20-400 |
10 |
5.5 |
3800 |
3000*1550*1600 |
4*3200 |
4 |
3200 |
1.5 |
20-600 |
10 |
7.5 |
5700 |
3850*1550*1600 |
4*4000 |
4 |
4000 |
1.5 |
20-600 |
8 |
7.5 |
7600 |
4500*1700*1700 |
4*6000 |
4 |
6000 |
1.5 |
20-600 |
5 |
11 |
17800 |
6500*2100*2300 |
6*2500 |
6 |
2500 |
1.5 |
20-600 |
10 |
7.5 |
5500 |
3000*1700*1650 |
6*3200 |
6 |
3200 |
1.5 |
20-600 |
9 |
7.5 |
6500 |
3850*1700*1650 |
6*4000 |
6 |
4000 |
1.5 |
20-600 |
8 |
7.5 |
8200 |
4600*1850*1700 |
8*2500 |
8 |
2500 |
1.5 |
20-600 |
10 |
7.5 |
5800 |
3050*1700*1700 |
8*3200 |
8 |
3200 |
1.5 |
20-600 |
8 |
7.5 |
6800 |
3860*1700*1700 |
8*4000 |
8 |
4000 |
1.5 |
20-600 |
8 |
15 |
8800 |
4650*1700*1700 |
10*2500 |
10 |
2500 |
1.5 |
20-600 |
9 |
15 |
7200 |
3050*1800*1700 |
10*3200 |
10 |
3200 |
1.5 |
20-600 |
9 |
15 |
8500 |
3900*2000*1700 |
10*4000 |
10 |
4000 |
1.5 |
20-600 |
8 |
18.5 |
12500 |
4650*2100*2000 |
12*2500 |
12 |
2500 |
1.5 |
20-800 |
9 |
18.5 |
9800 |
3150*2050*2000 |
12*3200 |
12 |
3200 |
1.5 |
20-800 |
9 |
18.5 |
11600 |
3900*2150*2000 |
12*4000 |
12 |
4000 |
2 |
20-800 |
8 |
18.5 |
13800 |
4700*2150*2100 |
16*2500 |
16 |
2500 |
2 |
20-800 |
9 |
18.5 |
11000 |
3150*2250*2000 |
16*3200 |
16 |
3200 |
2 |
20-800 |
8 |
18.5 |
12600 |
3900*2250*2000 |
16*4000 |
16 |
4000 |
2.5 |
20-800 |
8 |
22 |
17300 |
4650*2250*2200 |
20*2500 |
20 |
2500 |
2.5 |
20-800 |
8 |
30 |
14800 |
3450*2300*2500 |
20*3200 |
20 |
3200 |
2.5 |
20-800 |
8 |
30 |
17000 |
4510*2350*2700 |
20*4000 |
20 |
4000 |
2.5 |
20-800 |
5 |
30 |
23000 |
4850*2600*2800 |
25*2500 |
25 |
2500 |
3 |
20-800 |
5 |
37 |
19000 |
3200*2700*2900 |
25*3200 |
25 |
3200 |
3 |
20-800 |
5 |
37 |
23000 |
4200*2700*3000 |
30*2500 |
30 |
2500 |
3.5 |
20-1000 |
5 |
37 |
28000 |
3300*2900*3000 |
30*3200 |
30 |
3200 |
3.5 |
20-1000 |
5 |
37 |
33000 |
4200*2900*3200 |
