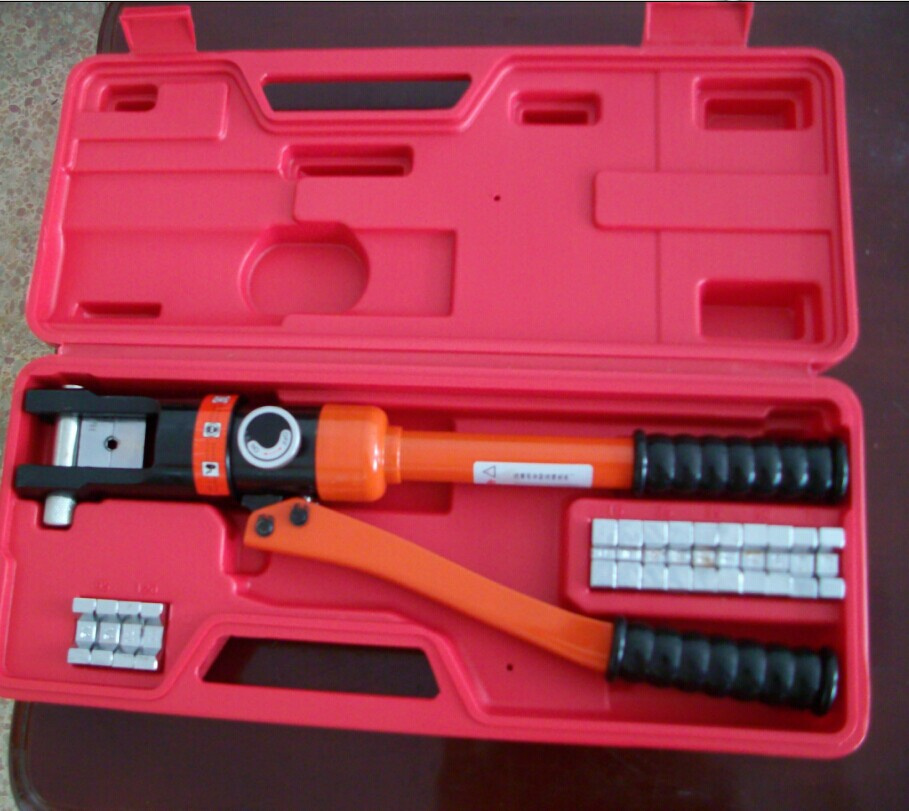

Hydraulic Crimping Tool with Crimping Range 16~300mm2

Product Specifications

Prod Model:	YQ-30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	Yq-30
Applicable For:	Crimping on Power Cable and Wire
Output:	12t
Crimping Capacity:	16-300mm2
Export Markets:	Global

Product Description

Hydraulic hand crimping tool,hand crimping tools,terminal crimping tool 1. Hexagon crimping fortubular cable lug and connector 2. Two speed action allowed:fast advancing  speed for rapid approach of the dies to the  connectors and slower more powerful speed  for crimping 3. Fitted with safety valve ,which will release automatic when max pressure is reached 4. Package: plastic box Weight:6.kg Size:410*216*65mm Max travel :20mm Max pressure:13T Capacity: 16-300mm2. Moudle disopsition:10 16 25 35 50 70 95 120 150 185 240 300
