Product Specifications
| Prod Model: |
YQ-300A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Crimping Force: |
8 Ton |
| Stroke: |
16mm |
| Weight: |
6.4kg |
| Packing&Size: |
755X130X230mm |
| Certification: |
CE |
Product Description

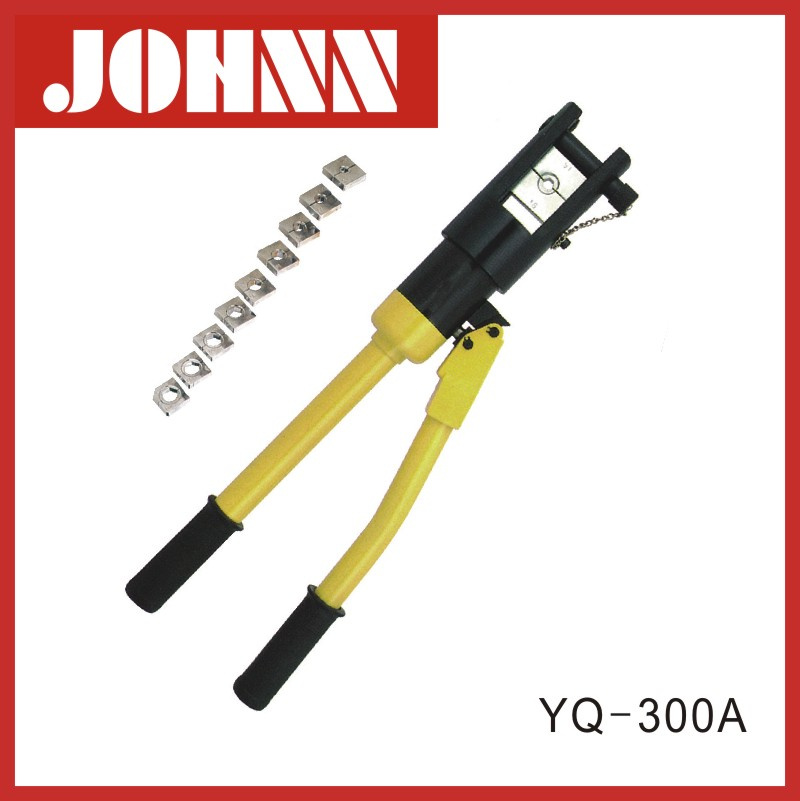

The detailed information of YQK-300A
It is applied to overthead distribution and press connection for copper terminals and sleeve of underground cable.
Hexagona mould is adopted to ensure tight press connection. Good electric conduction and non-easy shedding.
Range of Application:
10-185mm2(AL Terminal)
16-300mm2(Cu Terminal)
Crimping force: 8 ton
Stroke: 16mm
Standard dies: 16, 25, 35, 50, 70, 95, 120.150, 185, 240, 300mm2
Weight: 6.4Kg
Packing&Size: 755x130x230mm
Package: Plastic Case
