Perfect Surface Finish, smoothness without burrs
Material: Carbon Steel, Stainless Steel, Brass
Size: All kinds of Sizes are available
Surface Treatment: Trivalent Silver Zinc, Trivalent Yellow Zinc, Hexavalent Yellow ZInc, Chrome Plate, Electric-Polish etc.
Inspection: 100% before package
MOQ 500~1000 PCS
Delivery time: 35-45 days
Competitive Price
High precision according to Standard
Perfect surface finish
Reliable Quality
Strong supply capability
Applications
Hydraulic Equipment, Industrial Components, Machine, Hose Crimping etc.
OEM & ODM, any your customized fittings we can help you to design and put into product.
We offer a wide range of hydraulic fitting & Adapter: Stainless Steel hydraulic fitting, Carbon Steel hydraulic fitting, Brass hydraulic fitting, high pressure hydraulic fitting, Hose Fitting, JIC hydraulic fitting, BSP hydraulic fitting, DIN hydraulic fitting
You could provide engineering drawing or sample to us for production.
|

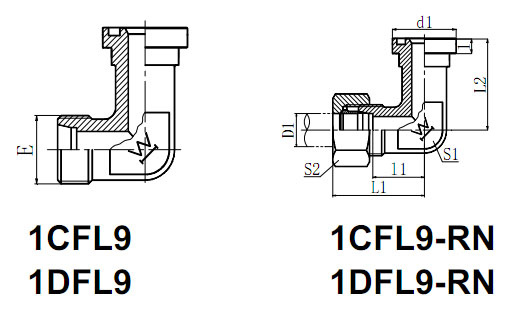

90°ELBOWMETRICMALEBITETYPE/L-SERIESFLANGEISO6162-1 |
|
1CFL9-RN |
|
1DFL9-RN |
|
|
|
|
|
|
DIMENSIONS |
|
|
PART NO. |
THREAD E |
FLANGE SIZE |
TUBE O.D.D1 |
O-RING |
d1 |
l |
l1 |
L1 |
L2 |
S1 |
S2 |
MPa |
|
1CFL9-22-08 |
M22X1.5 |
1/2" |
15 |
O210 |
30.2 |
6.7 |
29 |
44 |
36 |
24 |
27 |
31.5L |
|
1CFL9-26-12 |
M26X1.5 |
3/4" |
18 |
O214 |
38.1 |
6.7 |
32 |
48 |
42 |
30 |
32 |
|
1CFL9-30-12 |
M30X2 |
3/4" |
22 |
O214 |
38.1 |
6.7 |
34 |
50 |
42 |
30 |
36 |
16L |
|
1CFL9-36-16 |
M36X2 |
1" |
28 |
O219 |
44.4 |
8 |
37 |
53 |
45 |
36 |
41 |
|
1CFL9-45-20 |
M45X2 |
1.1/4" |
35 |
O222 |
50.8 |
8 |
47 |
68 |
50 |
41 |
50 |
|
1CFL9-52-24 |
M52X2 |
1.1/2" |
42 |
O225 |
60.3 |
8 |
47 |
70 |
55 |
50 |
60 |
|
1DFL9-24-08 |
M24X1.5 |
1/2" |
16 |
O210 |
30.2 |
6.7 |
30 |
48 |
36 |
24 |
30 |
35S |
|
1DFL9-30-12 |
M30X2 |
3/4" |
20 |
O214 |
38.1 |
6.7 |
33 |
54 |
42 |
30 |
36 |
|
1DFL9-36-12 |
M36X2 |
3/4" |
25 |
O214 |
38.1 |
6.7 |
33 |
57 |
42 |
30 |
46 |
|
1DFL9-42-16 |
M42X2 |
1" |
30 |
O219 |
44.4 |
8 |
37 |
63 |
45 |
36 |
50 |
|
1DFL9-36-20 |
M36X2 |
1.1/4" |
25 |
O222 |
50.8 |
8 |
43 |
67 |
50 |
41 |
46 |
28S |
|
1DFL9-42-20 |
M42X2 |
1.1/4" |
30 |
O222 |
50.8 |
8 |
44 |
70 |
50 |
41 |
50 |
|
1DFL9-52-20 |
M52X2 |
1.1/4" |
38 |
O222 |
50.8 |
8 |
43 |
74 |
50 |
41 |
60 |
|
1DFL9-52-24 |
M52X2 |
1.1/2" |
38 |
O225 |
60.3 |
8 |
48 |
79 |
55 |
50 |
60 |
21S |
|
Note:Incaseifyouareinterestedto order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO.for example 1DFL9-52-24RN. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
90°ELBOWMETRICMALEBITETYPE/H-SERIESFLANGEISO6162-2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1DFS9-RN |
|
|
|
|
|
|
DIMENSIONS |
|
PART NO. |
THREAD E |
FLANGE SIZE |
TUBE O.D.D1 |
O-RING |
d1 |
l |
l1 |
L1 |
L2 |
S1 |
S2 |
MPa |
|
1DFS9-24-08 |
M24X1.5 |
1/2" |
16 |
O210 |
31.7 |
7.8 |
30 |
48 |
39 |
24 |
30 |
40S |
|
1DFS9-24-12 |
M24X1.5 |
3/4" |
16 |
O214 |
41.3 |
8.8 |
37 |
55 |
48 |
32 |
30 |
|
1DFS9-30-12 |
M30X2 |
3/4" |
20 |
O214 |
41.3 |
8.8 |
36 |
57 |
48 |
32 |
36 |
|
1DFS9-36-12 |
M36X2 |
3/4" |
25 |
O214 |
41.3 |
8.8 |
36 |
60 |
48 |
32 |
46 |
|
1DFS9-36-16 |
M36X2 |
1" |
25 |
O219 |
47.6 |
9.5 |
41 |
65 |
60 |
41 |
46 |
|
1DFS9-42-16 |
M42X2 |
1" |
30 |
O219 |
47.6 |
9.5 |
42 |
68 |
60 |
41 |
50 |
|
1DFS9-42-20 |
M42X2 |
1.1/4" |
30 |
O222 |
54 |
10.3 |
45 |
71 |
68 |
46 |
50 |
|
1DFS9-52-20 |
M52X2 |
1.1/4" |
38 |
O222 |
54 |
10.3 |
45 |
76 |
68 |
46 |
60 |
31.5S |
|
1DFS9-52-24 |
M52X2 |
1.1/2" |
38 |
O225 |
63.5 |
12.6 |
56 |
87 |
76 |
50 |
60 |
|
Note:Incaseifyouareinterestedto order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO.for example 1DFS9-52-24RN. |
Hydraulic Thriving Company Limited is a professional manufacturer located in China Hardware manufacturing base ---Yuyao, Zhejiang province, China. We are specialized in Hydraulic Cylinder, Hydraulic fitting, Hydraulic Shock absorber, BMI cycloidal hydraulic motors at affordable price and good quality.
The company has passed " ISO9001: 2002", and can provide ODM, OEM services to customers. In addition, our company is easily accessible, which is located at the Yuyao exit of Hangyong express way. It is about 80 Km to Ningbo port, 190 Km to Shanghai Pudong International Airport, 250 Km to Shanghai port.
The company always perseveres in the management concept of "Customer foremost, keep enterprising", and provide customers with quality services. We are looking forward to cooperating, growing and developing with you sincerely
