Anhui Huafeng Machine Manufacturing Co., Ltd. >> Hydraulic Folding Machine (WF67Y/WF67K(WC67Y/WC67K))

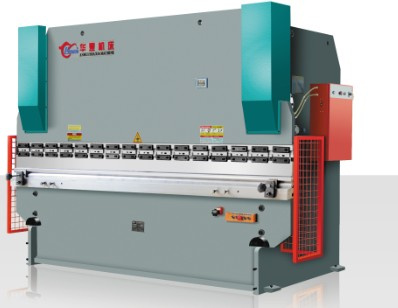

Hydraulic Folding Machine (WF67Y/WF67K(WC67Y/WC67K))

Name: Hydraulic Folding Machine (WF67Y/WF67K(WC67Y/WC67K))
Brand: china-manufacturer-directory.com
SKU: 712341805
Availability: InStock
Rating: 4.6 (138 reviews)

Supplier:	Anhui Huafeng Machine Manufacturing Co., Ltd.
Price:	US $ 1-20000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	WF67Y/WF67K(WC67Y/WC67K)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automation:	Manual
Type For Fold-bending Machine:	Manual Fold-bend Machine
Application:	Machinery & Hardware
Type:	Press Brake

Product Description

Features of this press brake:
This machine is designed limiting limit elements analyzing and optimization made of entirely steel structure. Using libration effort to eliminate inner stress, the rigidity of machine is guaranteed.
Slider adopt torsion shaft synchronization mechanism, high-precision twisting axis centering taper bearings at both ends of torsion shaft, and to install loads, can make the workpiece acquire better precision of bending.
The bending angle adjustment by reducer driven by a mechanical block inside the fuel tank, trip counter display value.
Installed long-distance pressure-regulator valve on column right side.
Wallboard inside with manual pumps

Controller Optional MD11 $760
Ballscrew Optional Abba/Hiwin $500
Backdoor Optional $100
Light Curtains front of machine Optional $350
Upper & lower die Standard 0
Quick Clamping Device Optional 3200mm $470

Ton	kN	mm	mm	mm	mm	mm	mm	mm	kW	Mpa	mm	T
Type	Nominal Pressure	Workbench Length	Workbench Width	Poles distance	Throat depth	Slipper Stroke	Max Opening Height	slipper stroke adjust Length	Main motor	Hydraulic System Max Work Pressure	Dimension(L×W×H)	Machine weight
40T/2200	400	2200	130	1600	200	100	320	70	5.5	P=22	2300×1100×1900	2.5
40T/2500	400	2500	130	1900	200	100	320	70	5.5	P=22	2600×1100×1900	2.8
50T/2200	500	2200	160	1600	200	100	320	70	5.5	P=22	2300×1150×1940	2.8
50T/2500	500	2500	160	1900	200	100	320	70	5.5	P=22	2600×1150×1940	3.2
63T/2500	630	2500	160	1900	250	120	345	100	5.5	P=22	2600×1500×2200	4.1
63T/3200	630	3200	160	2600	250	120	345	100	5.5	P=22	3300×1500×2200	4.6
63T/4000	630	4000	160	3100	250	120	345	100	5.5	P=22	4200×1500×2300	5.1
80T/2500	800	2500	180	1900	250	120	350	100	5.5	P=22	2600×1700×2320	5.0
80T/3200	800	3200	180	2600	250	120	350	100	5.5	P=22	3300×1700×2320	5.5
80T/4000	800	4000	180	3100	250	120	350	100	5.5	P=22	4100×1700×2320	6.8
80T/5000	800	5000	180	4000	250	120	380	100	7.5	P=22	5100×1700×2500	9.2
100T/2500	1000	2500	180	1900	320	120	380	100	7.5	P=22	2600×1750×2420	5.6
100T/3200	1000	3200	180	2600	320	120	380	100	7.5	P=22	3380×1750×2420	6.6
100T/4000	1000	4000	180	3100	320	120	380	100	7.5	P=22	4000×1750×2420	7.8
100T/5000	1000	5000	180	4000	320	120	380	100	7.5	P=22	5000×1750×2520	9.2
100T/6000	1000	6000	200	4800	320	120	380	100	7.5	P=22	6000×1750×2620	12.0T
125T/2500	1250	2500	180	1900	320	120	380	100	7.5	P=22	2600×1750×2520	6.2
125T/3200	1250	3200	180	2600	320	120	380	100	7.5	P=22	3200×1750×2520	7.2
125T/4000	1250	4000	180	3100	320	120	380	100	7.5	P=22	4000×1750×2520	9.2
125T/5000	1250	5000	200	3950	320	120	380	100	7.5	P=22	5000×1750×2520	10.5
125T/6000	1250	6000	200	4800	320	120	380	100	11	P=22	6100×1750×2720	13.5
160T/2500	1600	2500	200	1900	320	200	450	150	11	P=22	2700×1850×2700	8.2
160T/3200	1600	3200	200	2550	320	200	450	150	11	P=22	3300×1850×2700	9.5
160T/4000	1600	4000	200	3040	320	200	450	150	11	P=22	4100×1850×2700	11

We specialized with plate rolling machine, guillotine shearing machine and other related products. We understand our customers, we care about the future of our business. We want to ensure that you get our good service, not only high quality and speedy delivery.

Press brake, shearing machine, rolling machine, press brake tools.
