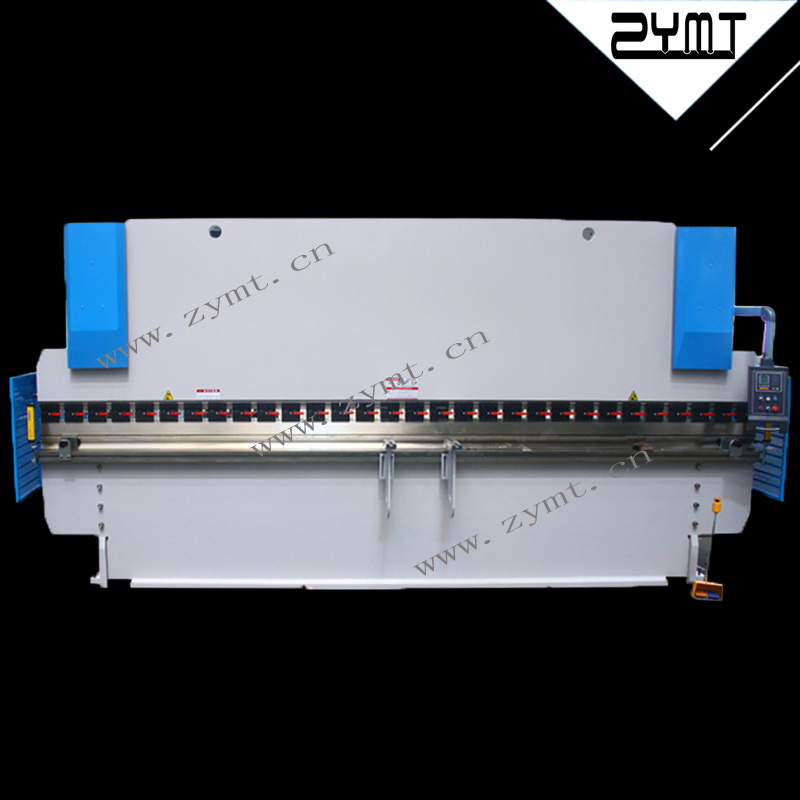

Hydraulic Machine Tool (Wc67k-160t*5000) with ISO 9001 Certification Bending Machine

Our factury:

With a fast speed development since founded in 2001,ZYMT maanshan Middle Asia Machine Tools Manufacture Co.,Ltd, today is placed as a professional manufacture and global supplier of sheet metal working machinery specialized in the production of all the types of hydraulic CNC/NC/Conventional press brakes, hydraulic CNC/NC/Conventional guillotine shear machine s& hydraulic CNC/NC/Conventional swing beam shearing machines.
For its manufacturing operations ZYMT occupy 10,000,000 square meters with a production workshop of 5,000,000 square meters, making it one of the Chinese largest facility for professional sheet metal fabrication machinery.The total workforce at ZYMT is currently numbered at 450 employees and is composed of highly trained and qualified machine operators and assembly technicians supported by a staff of experienced engineers and designers.
All the ZYMT products are manufactured with the Chinese AAA level good standardization and accredited for the ISO9001:2008 and CE certification.In the past years ZYMT has progressed to become a major exporter of sheet metal machineries to the world markets with customers located in all the machine tools consuming countries.ZYMT is currently represented in over 60 countries and regions worldwide through appointed dealers.In the base market of china, we have more than 40 branches in the quality development and service.
Here, with a long and strong engineering experience behind, ZYMT wishes to present itself as a quality-conscious,  professional machinery building company serving the industry.


Features
WC67K series Bending Machine

1:The machine is metal plate welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2:Double hydraulic cylinders are applied for upper transmission, provided with mechanical limit stopper and synchronize torsion bar, typical of stable and reliable operation, as well as high precision.
3:Electrical control and manual fine-turning mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with numeric controller basis on the WC67Y series press brake.
4:Upper punch clamping fitted with deflection compensation device.
5:Multi-steps programming function is able to achieve an automatic operation and continues positioning of multi-steps procedures, as well as an automatic precision adjustment for positions of rear stopper and upper beam.
6:The machine is provided with bend counting function, real-time display of processing quantity, power-failure memory of positions of rear stopper, upper beam, programs and parameters.


Main parts list and basic technicals of Bending Machine:
1:Basic standard NCmachine with E21 controller

NO.	Parts name	Brand	Brand location	Model
1.	Main motor	Siemens	Germany
2.	Bacguage motor	Detong	Shanghai China
3.	Ram motor	Kongte	Nanjing China
4.	Electrics	Schneider	France
5.	Oil cylinder	Yuhua	Maansh China
6.	Seal ring	Nok	Japan
7.	Hydraulic valve	Rexroth	Germany
8.	Pump	Hangfa	Shanghai China
9.	Controller	E21	Nanjing China
10.	Mould	Guoling	Maanshan China
11.	Pipe connector	EMB	Germany
12.	Footswitch	Karcon	South Korea
13.	Ball screw	Hiwin	Taiwan
14.	Controller with moveable arm		YES
15.	Front and back protection fence		YES
16.	Backguage with ball screw		YES
17.	Backguage travel		500MM
18.	Emergency button		YES


2:E200 higher level NC controller with servo motor of X-Y-axis

NO.	Parts name	Brand	Brand location	Model
1.	Main motor	Siemens	Germany
2.	Bacguage motor	Eston	Nanjing China	Servo motor
3.	Ram motor	Eston	Nanjing China	Servo motor
4.	Electrics	Schneider	France
5.	Oil cylinder	Yuhua	Maansh China
6.	Seal ring	Nok	Japan
7.	Hydraulic valve	Rexroth	Germany
8.	Pump	Hangfa	Shanghai China
9.	Controller	E21	Nanjing China
10.	Mould	Guoling	Maanshan China
11.	Pipe connector	EMB	Germany
12.	Footswitch	Karcon	South Korea
13.	Ball screw	Hiwin	Taiwan
14.	Guide rail	Hiwin	Taiwan
15.	Controller with moveable arm		YES
16.	Front and back protection fence		YES
17.	Backguage with ball screw		YES
18.	Backguage travel		500MM
19.	Emergency button		YES

3::Two axes DA41 NC Control system Bending Machine

NO.	Parts name	Brand	Brand location	Model
1.	Main motor	Siemens	Germany
2.	Bacguage motor	Eston	Nanjing China	Servo motor
3.	Ram motor	Eston	Nanjing China	Servo motor
4.	Electrics	Schneider	France
5.	Oil cylinder	Yuhua	Maansh China
6.	Seal ring	Nok	Japan
7.	Hydraulic valve	Rexroth	Germany
8.	Pump	Hangfa	Shanghai China
9.	Controller	DA41	Holland
10.	Blades	Jinshan	Shanghai China
11.	Pipe connector	EMB	Germany
12.	Footswitch	Karcon	South Korea
13.	Ball screw	Hiwin	Taiwan
14.	Guide rail	Hiwin	Taiwan
15.	Controller with moveable arm		YES
16.	Front and back protection fence		YES
17.	Backguage with ball screw		YES
18.	Backguage travel		500MM
19.	Emergency button		YES

Technical parameters of Bending Machine

Type	Nominal force(KN)	Worktable length(mm)	Poles distance(mm)	Throat depth(mm)	Slider travel(mm)	Max open (mm)	Power (KN)	Weight	Dimension (mm)
40t/2200	400	2200	1850	230	100	320	5.5	2750	2200*1200*1900
40t/2500	400	2500	1850	230	100	320	5.5	3000	2500*1200*1900
50t/2500	500	2500	1850	230	100	320	5.5	3400	2500*1200*2000
63 t/2500	630	2500	1900	250	100	320	5.5	4000	2500*1300*2210
63 t/3200	630	3200	2560	250	100	320	5.5	4800	3200*1300*2210
80 t/2500	800	2500	1990	300	100	320	7.5	5000	2500*1400*2300
80t/3200	800	3200	2560	320	100	350	7.5	6000	3200*1500*2300
80t/4000	800	4000	3200	320	100	350	7.5	7000	4000*1500*2400
100t/2500	1000	2500	1990	320	120	350	7.5	6000	2500*1600*2400
100t/3200	1000	3200	2600	320	150	400	7.5	6800	3200*1600*2600
100t/4000	1000	4000	3200	320	150	400	7.5	8000	4000*1600*2600
125t/3200	1250	3200	2600	320	150	400	11	7000	3200*1600*2600
125t/4000	1250	4000	3200	320	150	400	11	8500	4000*1600*2600
160t/3200	1600	3200	2580	320	200	460	11	10000	3200*1700*2700
160t/4000	1600	4000	2900	320	200	460	11	11000	4000*1700*2800
160t/5000	1600	5000	3900	320	200	460	11	13500	5000*1900*3100
160t/6000	1600	6000	4900	320	200	460	11	18500	6300*1900*3200
200t/3200	2000	3200	2480	320	200	460	11	11000	3200*1950*2800
200t/4000	2000	4000	2900	320	200	460	11	12500	4000*1950*2800
200t/5000	2000	5000	3900	320	200	460	11	14000	5000*1950*3000
200t/6000	2000	6000	4900	320	200	460	11	20000	6000*1950*3300
250t/3200	2500	3200	2450	400	250	590	18.5	18500	3250*2000*3200
250t/4000	2500	4000	2900	400	250	590	18.5	20000	4000*2000*3400
