Guangdong Zhaoqing Xijiang(West River) Packaging Machinery Co., Ltd >> Hydraulic Mill Roll Stand

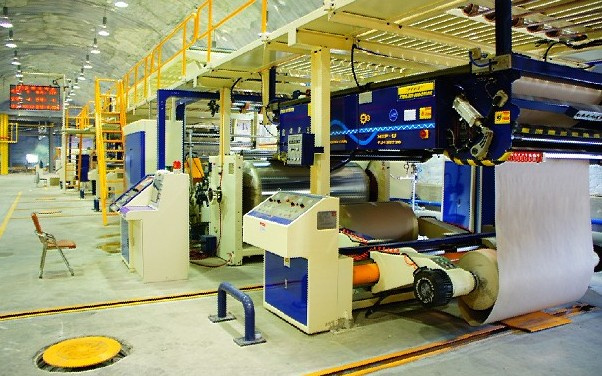

Hydraulic Mill Roll Stand

Name: Hydraulic Mill Roll Stand
Brand: China-Manufacturer-Directory.com
SKU: 710877825
Availability: InStock
Rating: 4.8 (64 reviews)

Supplier:	Guangdong Zhaoqing Xijiang(West River) Packaging Machinery Co., Ltd
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	YW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Automatic Grade:	Automatic
Type:	Carton Production Line

Product Description

1. In the course of production, support and supply paper

2. The arms of the roll stand can go up and down, clamp, transverse movement controlled by hydraulic pressure oil cylinders.

3. Might load and unload scroll without stop production.

4.6 sets of hydraulic cylinders control.

5. Pneumatic control the tension and force the ABS brake tension force controlling system.

6. Fixed type and expanding type finial are available3inch and 4inch clamping part in mutual.

Technical Parameters:

1. Max. Diameter of Scroll: 1500mm.

2. Max. Width of Scroll: 1400mm-2800mm.

3. Power: 4kw.

(mm) Max. Scroll Width	(mm) Length	(mm) Width	(mm) Height	(ton) Weight	(kw) Power
1400	3800	1800	1500	5.0	4
1600	4000	1800	1500	5.5	4
1800	4200	1800	1500	6.0	4
2000	4400	1800	1500	6.5	4
2200	4600	1800	1500	7.0	4
2500	4800	1800	1500	7.5	4
2800	5100	1800	1500	9.0	4

Guangdong zhaoqing xijiang(west river) packaging machinery Co., Ltd., built in 1954, manufactured and sold corrugated paper cardboard machine or production line worldwide over 20 years. West river machinery inherits best technology of China, according to professional knowledge and international management, combine international packaging machinery market trends knowledge, specialized in research & design, manufacture corrugated paper cardboard machine, create this industry's most quiet running high-speed wide-breadth corrugated paper cardboard production line, praised by vast domestic customers and foreign customers.
