Product Specifications
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Vulcanizing Press |
| Type Of Tire Machinery: |
Vulcanizing Press |
Product Description
The machine is applicable for vulcanizing all kinds of rubber and plastic model and non-model products.
1. Structure:

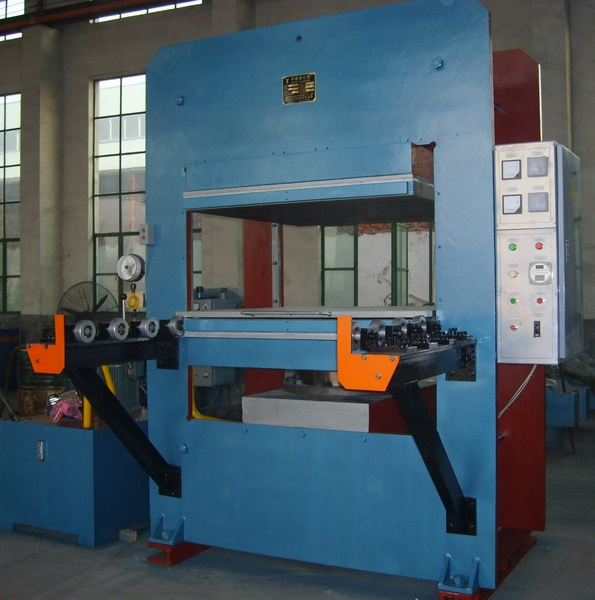

This machine is frame structure, including main machine, hydraulic station, electric controlling cabinet. Main machine is composed by base, plunger piston, platform, beam, automatic mould pushing-out device and compulsory mould opening device.
Operation:
Being a frame structure and downward pressing type, the heating plate opens by the seif-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and abrad ability, The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.
By moving the operational handle of the control value to the two different positions, the heating plate can open and close.
It uses the electric pipe for heating, thus makes the workshop clean with easy and reliable operation.
|
Type |
XLB-DQ400X400X2 |
XLB-DQ400X400X2 |
XLB-DQ600X600X2 |
XLB-DQ750X850X2(4) |
|
Total Pressure(mn) |
0.25 |
0.50 |
1.00 |
1.60 |
|
Plate Size(mm) |
400X400 |
400X400 |
600X600 |
|
|
Daylight(mm) |
125 |
125 |
125 |
125 |
|
Daylight No |
2 |
2 |
2 |
750X850 |
|
Piston Stroke(mm) |
250 |
250 |
250 |
250(500) |
|
Unit Area Pressure(kg/cm2) |
20 |
31 |
28 |
25 |
|
Main Motor Power(Kw) |
3 |
2.2 |
2.2 |
3 |
|
Overall Dimension(mm) |
1300X800X1500 |
2400X550X1500 |
1401X680X1750 |
1900X950X2028 |
|
Weight(Kg) |
1150 |
1300 |
3500 |
6500(7500 |
