Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
670HP |
| Max. Cutting Size: |
670mm |
| Min. Cutting Size: |
30mm |
| Cutting Thickness: |
80mm |
| Application: |
Machinery & Hardware |
| Automation: |
Automatic |
| Type For Cutting Machine: |
Hydraulic Cutting Machine |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Type: |
Paper Cutting Machine |
Product Description
Features:
1. Foldable paper pushing platform patented design
Convenient to remove and pack (only the serial of H)
2. Double lead screws for paper pushing
Double lead screws for pushing paper platform without slot design to make the pressure more equal and improve cutting accurancy
3. Swing arm design of blade carrier patented technology
Solving the problem that the roller slot easy to wear and tear, adjustment gap of blade carrier, ensuring cutting accurancy
4. Leak-proof design
Solving the problem of leaking in the cylinder
5. Double Hydraulic with strong power system design
Taiwan motor with strong power, imported hydraulic components for ensuring quality, with external knob for adjustment pressure of paper clamp
6. Inclined blade cutting patented technology
Any thick paper can be cut smooth and easily with inclined blade design
7. Swing cylinder of cutting patented technology
Cmpletely solve the problem of cutting paper balance, ensuring the working
8. Intelligent control, LCD
The cutting depth and size calibration can be adjusted by setting the program, 100 series programs and 21 cuts per machine, add function of the self-detection and code fault display
9. Infrared safety protection
Making according to CE standard to guarantee safety with front echelette grating, operation safer
10. External change blade switch
Blades replacement, convenient and efficient
11. Optical cutting line
Infrared laser indicating line, high-visible
12. Patent appearance design
New modern and fashion design which is suitable for Digital Express Printing office

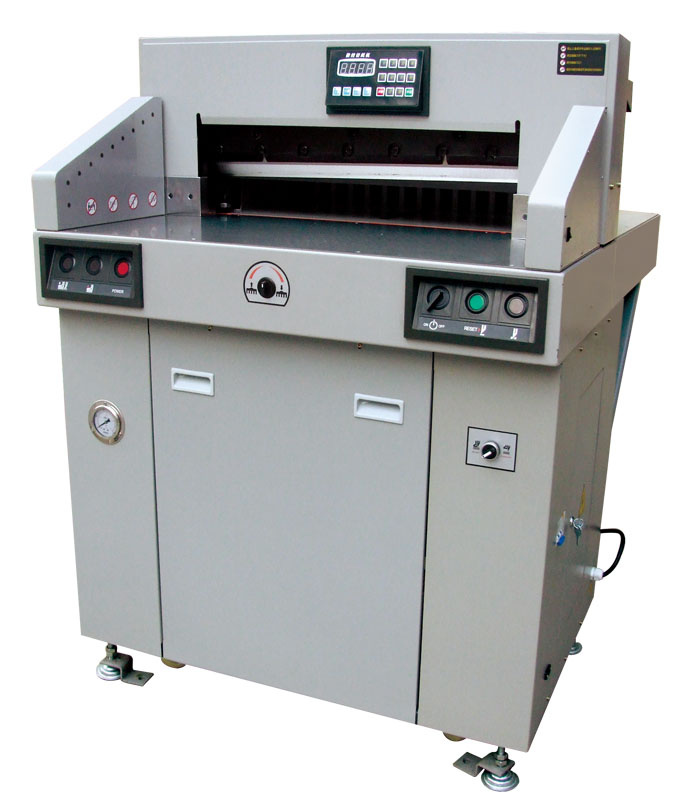

FN-670HP is a hydraulic paper cutting machine that can set 100 programs, each program can set 20 cuts, it is with two different motors for paper presser and paper cutter, it is for cutting paper sheets, books and photo albums.
| model | max.
cutting szie | min.
cutting szie | cutting
thickness | cutting
precision | pressing
paper
mode | cutting
paper
mode | pushing
page
mode | program | display | power | machine net weight |
| 670HP | 670mm | 30mm | 80mm | ± 0.2mm | Hydraulic | programl-control | YES | LCD | 220v/110v± 10%
50Hz(60Hz) | 3.1kw | 480kg |
| Size(H*D*W) | 1310x990x1290mm
|
