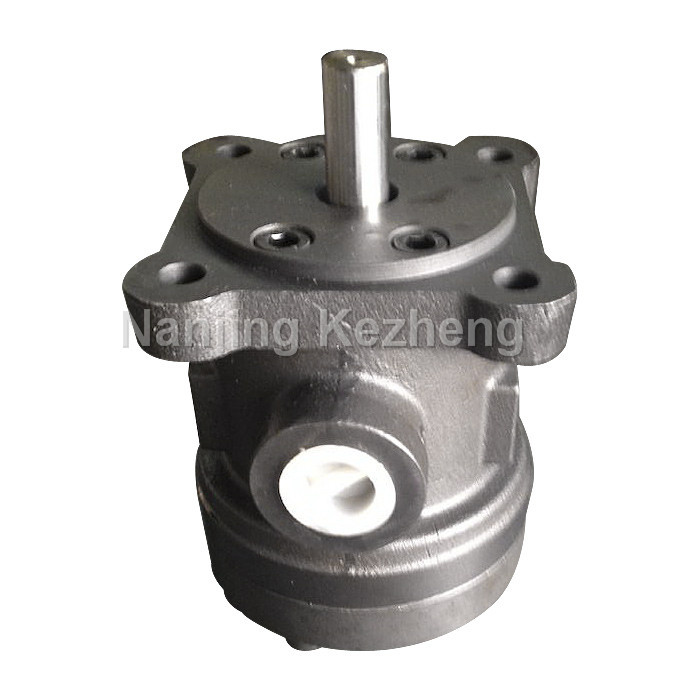

Hydraulic Pump-Low Pressure Fixed Displacement Vane Pump (50T-20)

Name: Hydraulic Pump-Low Pressure Fixed Displacement Vane Pump (50T-20)
Brand: china-manufacturer-directory.com
SKU: 768872275
Availability: InStock
Rating: 4.6 (43 reviews)

Supplier:	Nanjing Kezheng Hydraulic Machinery Co., Ltd.
Price:	US $ 50-500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	50T-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Low Pressure:	Fixed Displacement
Type:	Vane Pump
Displacement:	Fixed Displacement

Product Description

Model:

Series Number	Displacement	Installation Type	Direction of Rotation

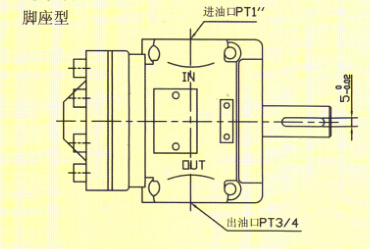

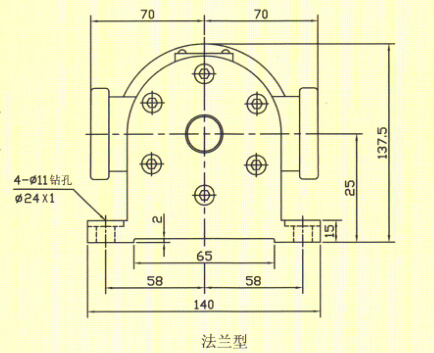

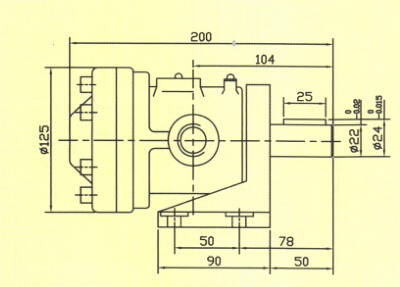

50T 150T	Details in table as follow	F:flange mounted type L: footstand type	R:Clockwise(seeing from the shaft end) L:Anticlockwise

Specification:

Type	Displacement(cc/rev)	Maximum Working Pressure	Rotation Speed(rpm)	Tubing Size		Weight(kg)
				Inlet	Outlet	footstand type	flange mounted type
50T-07	7.0	7.0	600-1800	1″	3″/4	10.5	9
50T-12	12.2
50T-14	14.5
50T-17	17.1
50T-20	20.0
50T-23	23.1
50T-26	26.3
50T-30	30.2
50T-36	36.2
50T-39	39.0
150T-48	48.2		600-1800	1 1″/2	1 1″/4	26	25
150T-61	61.4
150T-75	75.0
150T-94	94.0		600-1200
150T-116	116.2

Speciality:
1.Be with lower loads on shafting bearings and long operating life.
2.Be with simple structure and stable performance. It is easy to maintain.
3.Have pressure ring of special structure and it could use the hydraulic oil of low flame.
4.it is easy to replace internal parts.
5.It could form the motor pump combination
