Huizhou Dayawan Fox Etech Limited >> I5 Motherboard Mini Itx Motherboard Systemboard (FM5-QM77)

I5 Motherboard Mini Itx Motherboard Systemboard (FM5-QM77)

I5 Motherboard Mini Itx Motherboard Systemboard (FM5-QM77)
Supplier: Huizhou Dayawan Fox Etech Limited
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,EXW,CIF
contact supplier

Product Specifications

Prod Model: FM5-QM77
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lvds: 18/24 Bit Lvds
Integrated Graphics: Integrated Graphics
Main Chipset: Intel
Maximum Memory Capacity: 8G
Structure: Mini-ITX
Memory: DDR3
SATA Interface: SATA2.0
Printed Circuit Board: Six Layer
Main Board Structure: Integrated
Audio Effects: Not HiFi
CPU Socket: PGA988

Product Description

i5 motherboard MINI ITX MOTHERBOARD SYSTEMBOARD (FM5-QM77)



Most popular   Core I3/I5/I7 2.5GHZ CPU  MAX 8G RAM  industrial MINI motherboard


Product Description


Processor

Null

BIOS

AMI

Graphics

Integrated Intel(R) GMA 3650

System Chipset

Intel QM77

System Memory

2 x DIMM, Max 8GB DDR3 1333/1066

Graphic Interface

Integrated Intel(R) GMA 3650 24-bit LVDS, VGA, HDMI,DP

Ethernet Controller

2x RJ-45, Gigabit Ethernet_RTL8111E

Serial

6xCOM(1xRs232/422/485) 5xRs232 / Rs485

USB

6 x USB ports, USB 2.0 compliant

Watchdog Timer

1~256 levels

Key Features

Support  Core I3/I5/I7; Max 8GB RAM, 6xCOM, 4xUSB 3.0

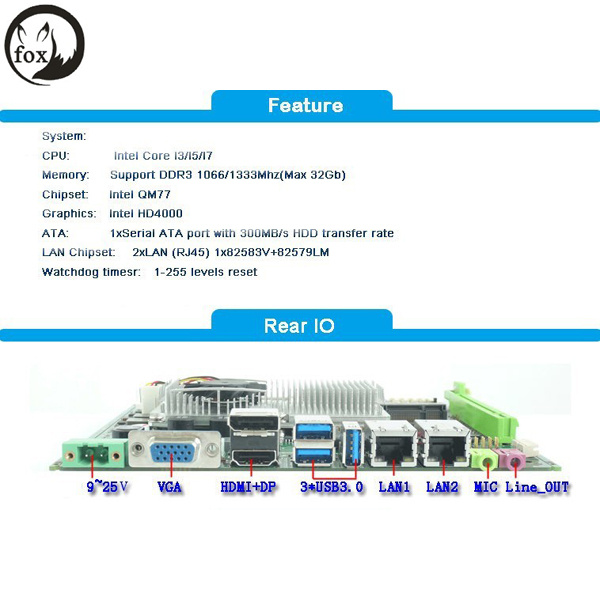

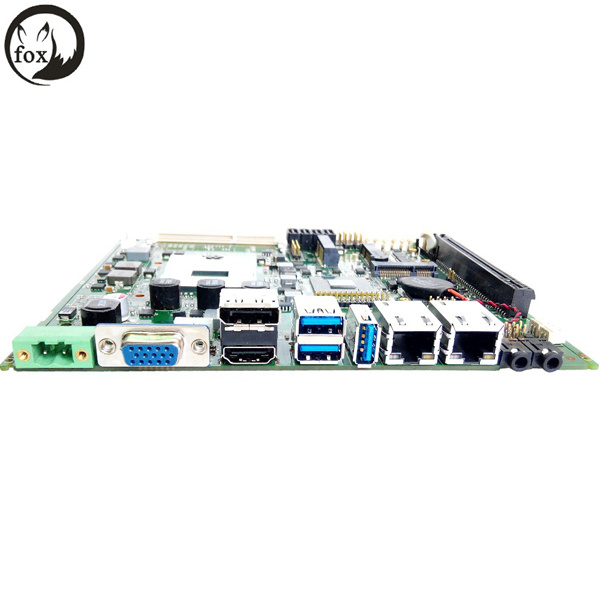

I/O Connectors

 I/O

3 x USB 3.0

1 x Power/HDD LED

1 x Power Reset Button

1 x Power on Button

1xHDMI+DP

2 x RJ-45(10/100/1000 Mbps)

1xCOM RS485

6 x COM

1 x USB 2.0

Mechanical and Environment

Dimensions (L x W)

170x170mm

Warranty

3 years

Power Input

9-25V DC IN (Lockable, Power Jack)

Net Weight (kg)

0.38KG




1.Fanless Design Industrial Motherboard in Mini-ITX form factor with Intel

Core I3/I5/I7 chipset

2.low power consumption

3.support wireless 3 G,  HDMI,24-bitLVDS+VGA;2xLAN;1xLPT;

4.1-255 step Watchdog Timer;8-bit GPIO

5.2xddr3, 2XSodimm Socket,total up to 8Gbmemory,and gigabit

nics,stabitilysecuity, seismic,adapt to bad working enviroment,Gigabit Lan

connector,provide strong communication.





Huizhou Dayawan Fox Etech Limited build in 2006, specialize in producing and selling Thin Client, Mini PC, All-In-One Computer, Embedded Computer, Industrial Motherboard and etc.

Our company's operating philosophy is "more refined, more powerful. "We always adhere to this quality policy, "the quality get market opportunities, services to win customer satisfaction, innovation promote business progress, a truth-seeking creat companies brilliant. " Pursue the eternal customer principles "credibility first, quality first and service-oriented. "

We insist on Market-oriented, technology- fundamental. In recent years, our companies get big radiation increasing in the domestic business scope, won the praise of customers, with significant achievements in the industry. Building long-term customer relations with many Middle East\European and South American companies. Rely on technological progress, we change the pressure of competition as a driving force, whick make the company's new products, new processes emerge time by time.

With the idea of "quality, service, price, " and the spirit of fighting innovation, FOX Etech LIMITED continuous self- transcendence, our company become bigger and stronger, we will provide quality services to more customers. Your satisfaction is our pursuit! We look forward to working with you to become a long-term win-win partnership!
