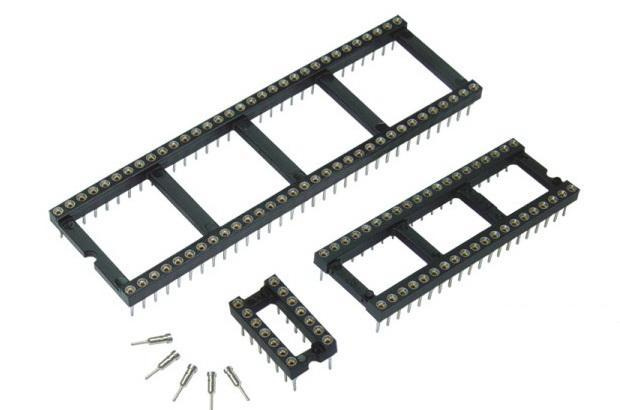

Product Specifications
| Prod Model: |
IC Socket |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IC Socket: |
DIP, pitch 2.54mm |
| Package: |
DIP(',Dual In-line Package) |
| Manufacturing Technology: |
IC Socket |
| Material: |
IC Socket |
| Type: |
IC Socket |
Product Description
ELECTRICAL:
Current Rating: 3AMP/Contact Max.
Contact Resistance: 20m OHM /Contact Max.
Insulation Resistance: 1000M OHM at 100VDC Min.
Operating Voltage: 60V AC/DC
MECHANICAL:
Average Insertion Force with steel pin of D0.43mm: 250g Max.
Average with drawal force with steel pin of D0.43mm: 25g Min.
Mechanical life cycle: 200 cycle Min.
Operating temperatures:
Gold plated: -55c to +125C
Tin plated: -40C to +105C
Soldering temperature: +260C, 10S Max.
Materail:
Pin: Brass, machined
Clip: Phosphor bronze
Plating (Pin): 50u" Ni, 100u" Sn
Plating (Clip): 50u" Ni, Gold Flash
Insulator boday(Black): PBT or Other(UL94V-0)
