Product Specifications
| Prod Model: |
CENL 2P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Structure: |
Conventional Circuit Breaker |
| Installation: |
on Symmetrical DIN Rail 35mm |
Product Description

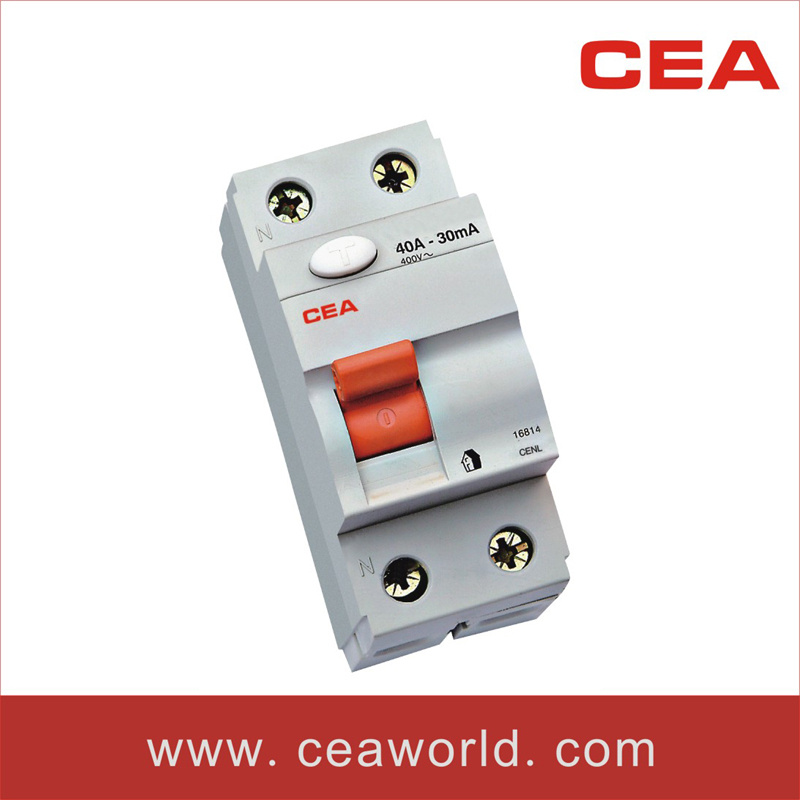

ID (new) residual current circuit breaker (mnl)
Cenl (ID-n) residual current circuit breaker
Construction and feature:
Applicable to terminal and pin/fork type busbar connection
Contact position indication
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/ leakage current occurs and exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
Technical data:
| Pole no. | 2, 4 |
| Rated making and breaking capacity | 630A |
| Rated current(a) | 25, 40, 63 |
| Rated voltage | 230/400V AC |
| Rated frequency | 50/60Hz |
| Mode | Electro-magnetic type, electronic type |
| Residual current characteristics | A, AC |
| Rated making and breaking capacity | 630A |
| Rated residual operating current Iδ N(ma) | 10, 30, 100, 300, 500 |
| Rated residual non-operating current Iδ No | 0.5Iδ N |
| Rated conditional short-circuit current inc | 6000A |
| Rated conditional residual short-circuit current Iδ C | 6000A |
| Tripping duration | Instantaneous tripping ≤ 0.1s |
| Residual tripping current range | 0.5Iδ N~1Iδ N |
| Electro-mechanical endurance | 4000 cycles |
| Connection capacity | Rigid conductor 25mm2 |
| Connection terminal | Screw terminal
Pillar terminal with clamp |
| Fastening torque | 2.0nm |
| Installation | On symmetrical DIN rail 35mm
Panel mounting |
![]()
![]()
![]()
![]()
