Product Specifications
| Prod Model: |
IDK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Certification: |
CE |
| Breaking Capacity: |
4.5 Ka 6ka 10ka |
| Operation: |
Electrical Type / Magnetic Type |
| Installation: |
DIN Type |
| Structure: |
RCCB |
| Poles Number: |
2p,4p |
Product Description

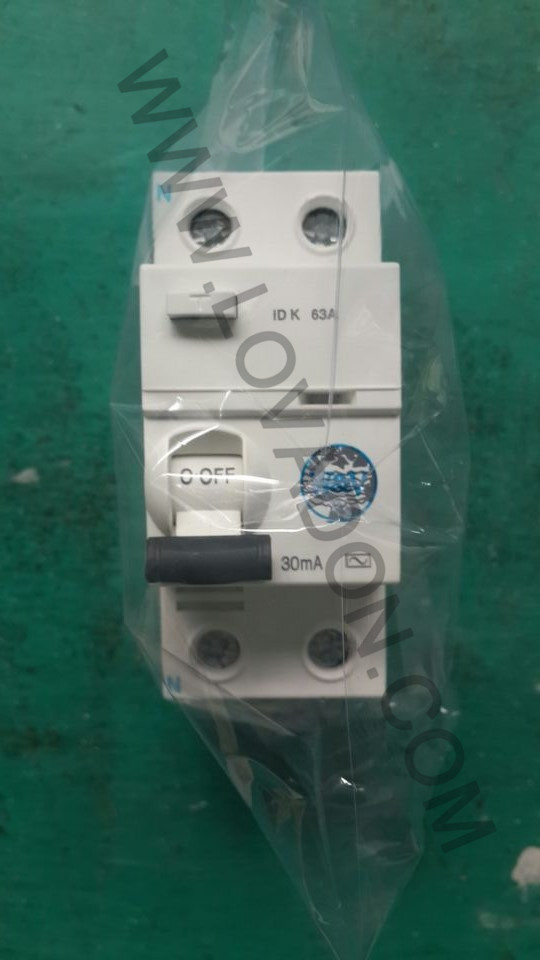

IDK Series Residual Current Circuit Breaker IDK Series Residual Current Circuit Breaker
| Number of poles | 1P+N,3P+N |
| Rated Current(A) | 16,20,25,40,50,63 |
| Rated Residual Operating Curent(In)(mA) | 30,100,300,500 |
| Rated Voltage(V) | AC230/240 |
| AC400/415 |
| Residual Operating Current Scope | 0.5n~n |
| Residual Current Off-time | ≤0.3S |
| Short Circuit Capaicity(Icu) | 6000A |
| Endurance | 4000 |
| Protection Ddgree | IP20 |
Specification
| Rated voltage | 400V |
| Rated current | 1~32A |
| Case current class | 32A |
| Breaking capacity | 6KA |
| According to standands | GB10917.1 |
| Rated residual action current | 30mA |
| Rated residual no-action current | 15mA |
| Rated residual close & break capacity | 2KA |
| Impulse withstand voltage | Uimp = 4KV |
| Earthleakage action time | ≤0.1s |
1.Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.
2.Installment plance altitude: ≤2000m
3.Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.
4.Pollution degree: 2 class
5.Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).
6.Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.
7.Mounted Category: II,III class.
Packing and shipping
-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
