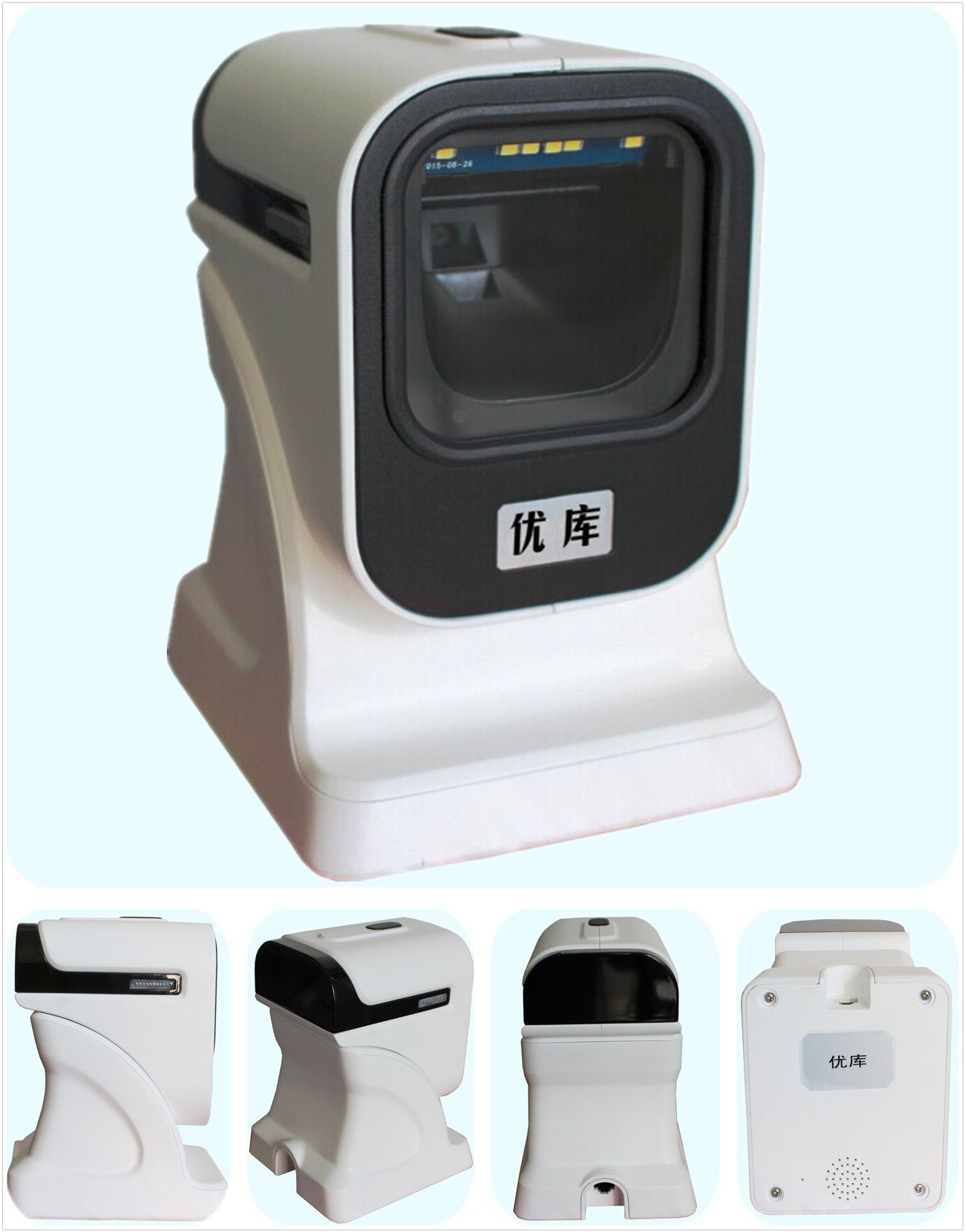

Image 2D Omnidirectional Barcode Scanner
Product Specifications
| Prod Model: |
YK-6200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Barcode Scanner |
| Interface Type: |
USB |
| Scanning Element: |
CMOS |
| Type: |
Image Barcode Scanner |
| Max Width: |
1280W*1024h |
| Kind: |
Omnidirectional |
| Optical Resolution: |
1280W*1024h |
Product Description

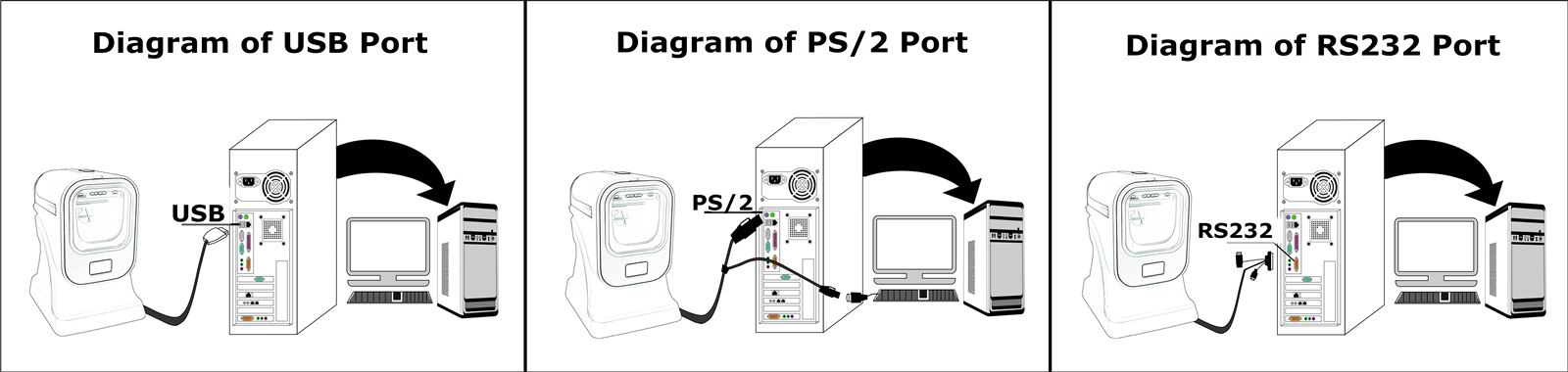

Connection
Feature
* Anti-reflective technical Exclusively, All kinds of barcode covered by glossy or special surface can be decoding quickly. such as infusion bags, plastic medicine packaging. Applicable to retail, manufacturing, medical, logistics and other industries. * Dual focus optical control technology Exclusively, High density and wide barcode available;
* Good Screen capture ability, Payment barcode, Electronic Coupon on mobile devices can be decoding easily;
* High speed camera optical technology and high-speed core architecture,Clocked at 1.2G, Design for the retail industry high speed scanning bar code.
Technical Parameters| SENSOR Resolution | SXGA-W ( 1280W*1024H) (5:4) |
Decoding Ability | 1D | EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Industrial 2 of 5,MSI,postal code ect. |
| 2D | PDF417,MICRO PDF417, Datamxtrix, QR, Maxicode, Aztec Code ect. |
| Accuracy and Depth | Testing Code | Depth(Min) | Depth(Max) |
| 3mil code39 | 90mm | 110mm |
| 4.3mil DM | 90mm | 125mm |
| 5mil DM | 90mm | 135mm |
| 6mil DM | 78mm | 135mm |
| 7mil code39 | 50mm | 190mm |
| 10mil DM | 38mm | 195mm |
| 20mil DM | 38mm | 270mm |
| Light Source | High Brightness, Infrared LED |
| Codes Available | 1D Codes printing on Paper or film, Screen Code & 2D codes |
| Speed | 2100 time /S |
| Error Rate | 1/7 million |
| Printing Contrast | 20% Minimum reflectance difference |
| Scanning Angle | Horizontal : 72° Vertical:82° |
| Light Source | Wavelength: 700 red laser |
| Host System Interface | USB2.0, PS/2,RS232, USB Virtual RS232
RJ45(Can be Customized) & Second Development |
| LED Indicator | Buzzer and bi-color light: Red-power, Blue-decoding Successfully |
| ENVIRONMENTAL PATAMETER |
| Drop | Design to withstand 2M drops to concrete |
| Environmental Sealing | IP54 |
| Operating Temperature | 0 degrees to 55 degrees |
| Storage Temperature | -40 degrees to 60 degrees |
| Temperature Humidity | 5% to 95% Relative humidity, Non-condensing |
| Storage Humidity | 5% to 95% Relative humidity, Non-condensing |
| Light Levels | 0-100000LUX |
| PHYSICAL PARAMATERS |
| Weight (pcs) | N.W: 465g/pcs G.W:720g/pcs |
| Size (pcs) | Host: 140mm*120mm*170mm Package:165mm×132mm×245mm |
| ELECTRICAL PARAMETERS |
| Operating Voltage | 5V+0.25V |
| Operating Current | 780mA |
| Power | 3.9W |
| Safety Standard | EN60950-1 |
| EMC | EN55022, EN55024 |
Field: Guangzhou Yoko Electron is one high-tech enterprise which is focus on Development and Research IOT field of Automatic identification date collect, Receipt Printing, Barcode Printing, Shouting distance wireless communication products and so on. Products include: Laser Manual, Automatic, Wireless, Fixed 1D barcode scanner; Area-Imaging Manual, Automatic, Wireless, Fixed 1D&2D barcode scanner.
Our Team: R&D team LED by Dr. Chen returns from USA Silicon Valley KLA-Tencor semiconductor and Expert Mr. Saga, from Shanghai Institute of Physical technology, CAS. Production Administration is presided over by Mr James who has been specializing into the Field of automatic identification system for more than 10 years. Mr. Steven is in charge of Marketing administration with12 years experience in marketing actual combat. Comply with the modern high-tech enterprises operate rules, Reasonable joint-stock form, Make the team have a strong professional competence, but also have long-term efficient operation foundation.
Achievement: A clear positioning after company establishment, Become one innovation-oriented research and development of high-tech enterprises. Guangzhou Yoko has get lots of core technology patents, including Invention Patents, SCM Computer software copyright, Design patent ect. With the Multi-lines barcode scanner R&D successfully in 2010, Guangzhou Yoko Electron become the exclusive company owns the core technology Of Multi-lines barcode scanner in China, In May 2013, Through the hall of Guangdong province science and technology experts preliminary review, has been included in the Guangdong province science and Technology Department of synchronization, funds to SMEs technological innovation project of Ministry of national science and technology application directory.
Operating Credo: Research & Innovation, Excellent Quality, Good service is a manufacturer value of existence. Quality is the cornerstone of existence, It decide the fate and heights of enterprise, Company has an excellent quality capabilities, In the meanwhile concentrated on R & D & innovation will be promote a manufacturing companies continue to develop and grow.
