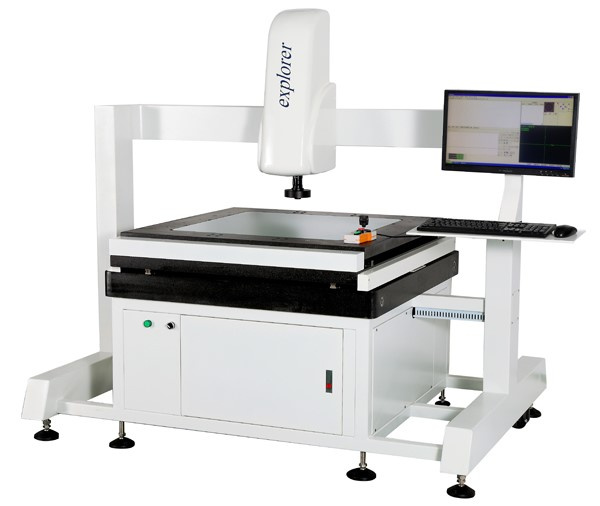

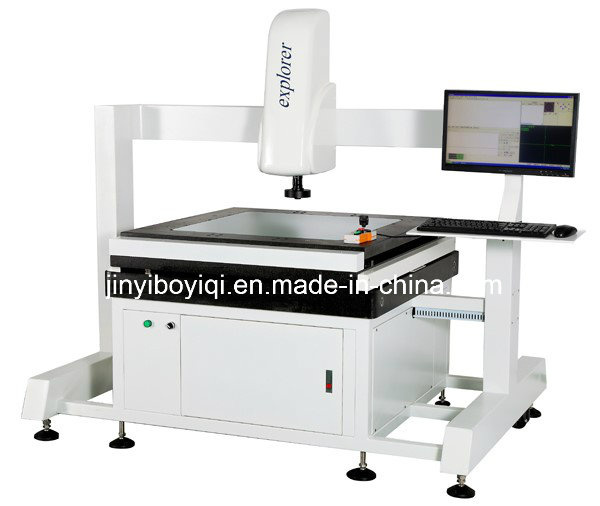

Image Measuring Instrument for Machinery, Electronics, Instrumentation Industry
Product Specifications
| Prod Model: |
CNC-8010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. Product information| specification | CNC-8010 |
| Workbench | X/Y axis trip | 800*1000 |
| Z axis trip | Effective space245mm, Focusing the trip180mm , Working distance95mm |
| Vitreous mesa size | 850*1050 |
| Marble table | 1100mm*1250mm |
| Drive system | XYZ three axis precision linear guide, Z X/Y axis ball screw drive |
| Digital measuring system | Optical ruler resolution: X/Y/Z axis 0.0005mm |
| Multi-function data processor can test point, line, arc, circle, Angle etc |
| 3D Automatically change times lens (optional) | Automatic variable times lens (software automatic control variable times, no manual, no correction) |
| Image aiming system | Color camera: Japan color 1/3″800TVL CCD camera magnification 30-230X |
| Camera lens: NAV Hd times lens// Continuous magnification 0.7-4.5X |
| Lighting System | On the surface of light and transmission light LED cold light source, long life, brightness is adjustable |
| Dimension(L*W*H) | 2400*1800*1650 |
| Weight(KG) | 2050 |
2. Instrument configuration Attachment 1: choose instrument accessories| Accessories | 1X drawtube(standard) 0.5X drawtube(optional) |
| Varifocal mirror | 0.7X~4.5X 0.7X~4.5X |
| Additional mirror | Video rate | object field(mm) | Video rate | object field (mm) | Working distance |
0.5X(select)
standard
2X(select) | 15X~95X
30X~190X
60X~380X | 20~3.2
10~1.6
5~0.8 | 7.5X~48X
15X~96X
30X~190X | 40~6.4
20~3.2
10.6~1.6 | 175
96
32 |
Attachment 2: instrument configuration tables| Model | CNC-8010(new model) |
| CCD | High resolution color CCD1/3800TVL(Japan sony) |
| Camera lens | Taiwan NAV Continuous variable times high-definition camera |
| Software | VMS measurement software(including video card, DVDS and encryption lock) |
| Grating ruler | High resolution raster size 0.0005MM |
| LED light source | LED Adjustable cold light source, long life light source |
| Data processor | Multi-function box centralized data processing |
| Lead rail | Taiwan High precision linear guide |
| Workbench | 00 Level of marble |
| Base and the fuselage | 00 Level of marble |
Attachment 3: connect computer suggested configuration (Lenovo)| Accessories name | Brand/grade |
| CPU | 2.8G Dual core |
| Memory | 2G DDR800 |
| Mainboard | Lenovo G31MX-K |
| Hard Disk | 500G |
| CD-ROM device | 18XDVD-ROM |
| Case & Power | Lenovo 8197 Case & Power |
| Keyboard and mouse | Lenovo electric suit |
| Display | 20 20 inches of the LCD screen |
3. Optional probe Settings: (optional probe group function)(1) Horizontal measurement: use this command to measure process, can't lift the Z axis. Take 2 or more points on workpiece after right click end, program generates a straight line or regression straight line.
(2) Level measurement: use this command to measure process, can't lift the Z axis. Take 3 or more points on workpiece after right click end program to generate a circle.
(3) Point measurement: take a little bit with a probe, in the solution set can be set whether the projection to the datum plane, compensation direction and so on.(4) Space linear measurements: take 2 or more points with a probe after the right click end, whether in the solution set can be set projection to the datum plane, compensation direction, and so on.
(5) Spatial circle measurement: take 3 or more points with a probe after the right click end, can be set in the solution set is projected onto a datum plane.
(6) Set up the datum plane, in the geometry area or right click on the graphic elements in the data frame, select "set as the benchmark plane".
(7) The solution set: if you select the projection to the datum plane, taken by the probe point will be counted for all kinds of projection to the datum plane. Compensation, if you choose to reference plane direction is taken will point to the direction of the datum plane offset a explore the sphere size, if you choose to reference plane direction compensation, it will take to the base plane by the direction of offset the size of a ground the sphere.(8) Height measurement: take 2 points, calculate the difference of the Z axis at 2 o 'clock.
(9) Curve measurement: several points on the same cross section, a curve obtained by program automatically according to these points, can undertake all kinds of fitting in the output to DXF, modeling operations.To probe some general Settings, including probe calibration, etc.
4. Command for three dimensional measurements(1)Space distance line: vertical between space points and lines.
(2)From aspects and space points to a vertical plane.
(3)Face to line: the intersection line between the two plane.
(4)Aspect Angle: the Angle between the two plane, an Angle element.
(5)Distance of two goals: the centre distance between the two ball.
(6)Parallelism and perpendicularity: choose this command, right click on the Angle between the elements, choose exhale, then input the calculation, to calculate the target's parallel or vertical plane.
5. Company informationAs a modern enterprise engaged in the R&D, manufacture and marketing of analyzing instruments, Wuxi Jinyibo Instrument Technology Co., Ltd. Possesses proprietary intellectual property and brings together lots of high-tech talents and experts to work on the development and application of material testing. Our company is specialized in manufacturing instruments like photoelectric direct reading spectrometers, plasma emission spectrometers, infrared carbon and sulfur analyzers, a series of wet-process analyzers, etc., which offer analysis of several elements including carbon, sulfur, silicon, manganese, phosphorus, nickel, chromium, copper, molybdenum, iron, titanium, rare earth, magnesium, etc. In particular, the photoelectric direct reading spectrometers and high-frequency infrared carbon and sulfur analyzers are in the leading position in China. Our products are widely applied to steel industry, metallurgy, foundry, machinery, construction, institutions, petrochemical engineering, quality supervision, the inspection of import and export commodity, etc.
WUXI JINYIBO INSTRUMENT TECHNOLOGY Co., Ltd

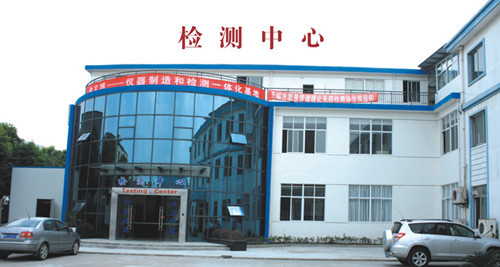

Company Profile
