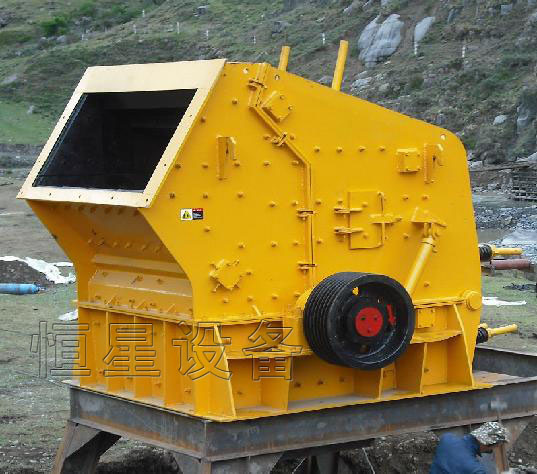

Impact crusher can be widely used in water, electricity, highway to make suitable sand and stone. Three-cavity crush area which is applied to crush high quality stone aggregate material with cubical shape, rotor connected without key awl, high chrome hammer, unique impact liner, deal with hard material, high efficiency and save energy, cubic shape of product, adjustable output size. It has a high ratio of reduction, direct control of product gradation and excellent cubical product shape. Our impact crusher is available in different models with capacity from 10-500TPH.
Working principle
When the impact crusher works, the motor drives the rotor rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then discharged from outlet.
Impact crusher advantages
This series of Impact crusher have features of large ratio of crushing, inform granularity, simple structure, reliable working, simple and convenient maintaining, economic running expenses, etc.
Impact Crusher Features and Benefits:
1.Even crushing function of multi-cavities which is suitable to crush Hard material.
2.Reasonable design of leveling plate making the finished material finer and cubic-shaped without internal cracks.
3.Hydraulic start-up which is convenient for maintenance and replacement of wearing parts.
4.New anti-abrasive material which prolong service life of impact hammer, impact plate and liner.
5. High reduction ratio and crushing efficiency.
6. No-board connection; The blow bar with high chrome (high chromed blow bar).
7. Impact plate with a special shape.
8. Crushed product with cubical shape.
9. Easy maintenance and reliable operation
Technical data
| Model | Specification
(mm) | Feeding size(mm) | Max feed size(mm) | Capacity
(t/h) | Motor power(kw) | Weight(kg) |
| PF-0607 | 644*740 | 320*770 | 100 | 10-20 | 30 | 10216 |
| PF-0807 | 850*700 | 400*730 | 300 | 15-30 | 30-45 | 11138 |
| PF-1008 | 1000*800 | 400*830 | 300 | 30-50 | 37-55 | 12206 |
| PF-1010 | 1010*1050 | 400*1080 | 350 | 50-80 | 55-75 | 13138 |
| PF-1210 | 1250*1050 | 400*1080 | 350 | 70-120 | 110-132 | 15200 |
| PF-1212 | 1250*1250 | 400*1300 | 350 | 100-150 | 132-160 | 17025 |
| PF-1214 | 1250*1400 | 400*1430 | 400 | 130-180 | 160-200 | 19015 |
| PF-1315 | 1320*1500 | 860*1520 | 500 | 160-250 | 180-260 | 24600 |
| PF-1320 | 1320*2000 | 860*2030 | 500 | 300-350 | 300-375 | 29800 |
| PF-1520 | 1520*2000 | 980*2980 | 700 | 400-500 | 400-480 | 38600 |
Zhengzhou Hengxing Heavy Equipment Co., Ltd. is a joint stock corporation integrating research and manufacture sale with the targt at the large and medium sized series of heavy equipment for mine machinery, wall materies, formed coal, metallurgy and etc. The company is located at No. 8 Hongye Road, West Hehuan Street, High-Tech Development Zone, Zhengzhou, China.
Since establishment, our company has gathered a group of scientific elites with modernized management system and accurate production as well as independent innovation. Furthermore, our company has realized the computer informationization of management, production, and the CAD and CAPP of production research and process design within our company. Our company is equipped with powerful machines and equipment for machining, forging, rivet welding, and carburization heat processing. At the same time the company has established long-term cooperative relationships with many research institutes from at home and abroad. With advanced technology, we can process and develop new products and promote new technology.
We adhere to the guideline of "survive on high quality, develop by good credit" on the basis of market development and customer service. We have provided better social and economic benefits and attained ISO9001-2000 Certificate. Our products sell very well at home and abroad, enjoying very high appraisement from users.
We would like to offer the most advanced technology, reliable quality, and preferential prices centering on clients. Improving customer satisfaction, we sincerely hope to co-operate with new and old customers, jointly creating the new glorious century.
