Product Specifications
| Prod Model: |
XJU-22 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Impact Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
Product Description

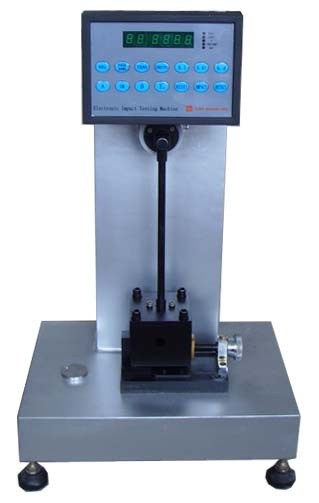

XJU Series Pendulum Impact testing machine is used to test or determine the anti-impact capacity of non-metal materials, such as hard plastic, enhanced nylon, ceramic, toughened glass and dielectric etc. Being adopted by scientific research institutes, colleges, universities and many non-metallic materials manufactures and laboratories. This machine is developed according to the standard of ISO180-82 or ASTM D256. Also, it has advantages of simple in structure, easy to operate and high accuracy.
|
Specification |
XJU-22 |
|
Impact energy |
5.5J 11J 22J |
|
Impact velocity |
3.5m/s |
|
Rising angle |
160° |
|
Impact semidiameter |
0.322m |
|
Pendulum moment |
PL(5.5J) = 2.8355N-m |
|
|
PL(11J) = 5.6710N-m |
|
|
PL(22J) = 11.3419N-m |
|
Distance between striking edge to upper surface of clamps |
22mm |
