Product Specifications
| Prod Model: |
FL047 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Material: |
Fr4 |
| Board Layer: |
4 |
| Board Thickness: |
1.6mm |
| Copper Thickness: |
2 Oz |
| Max PCB Size: |
650*650mm |
| Min Hole: |
0.15mm |
| Min Trace: |
0.15mm |
| Surface Finishing: |
Enig |
| Solder Mask: |
Any |
| Lead Time: |
4-5 Working Days |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Base Material: |
Fr4 |
Product Description

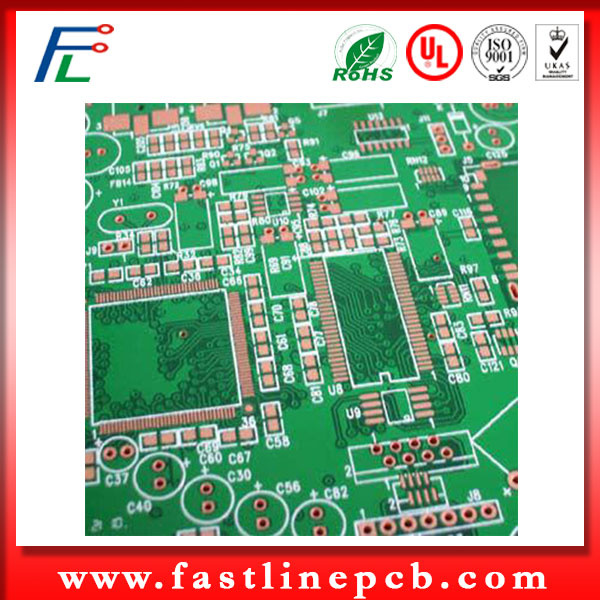

Impedance control multilayer pcb circuit board
Product Description
PCB advantages:
1. R&D team support
2. UL, RoHS,ISO9001,SGS
3. IPC class2
4. Advanced production line and promtly delivery.
5. Honest Credibility in China.
6. Professional and abundant experience in PCB.
7. Competitive price and good quality.
8. Excellent after-sales service.
9. 1-26 layers PCB capability
10. 100% test
PCB product showcase:
PCB application:
PCB production line:
Our Services
Fastline is a leading PCB manufacturer in China. providing PCB design, PCB fabrication,PCB clone and PCB assembly services. and we have got the UL, ISO, SGS certifications.
PCB Manufacture Capability
Item
Manufacture Capability
Layers
1-26 Layers
HDI
2+N+2
Material Types
Fr-4, Fr-5, High-Tg, Aluminum Based , Halogen Free,
Isola, Taconic, Arlon, Teflon, Rogers,
Max. Panel Dimension
39000mil * 47000mil (1000mm * 1200mm)
Outline Tolerance
± 4mil (± 0.10mm)
Board Thickness
8mil-236mil (0.2 - 6.0mm)
Board Thickness Tolerance
± 10%
Dielectric Thickness
3mil-8mil ( 0.075mm-0.20mm)
Min. Track Width
3mil ( 0.075mm )
Min. Track Space
3mil ( 0.075mm )
External Cu Thickness
0.5 OZ - 10 OZ ( 17um - 350um)
Internal Cu Thickness
0.5OZ - 6OZ ( 17um - 210um)
Drilling Bit Size ( CNC )
6mil-256mil ( 0.15mm - 6.50mm)
Finished Hole Dimension
4mil-236mil(0.1mm - 6.0mm)
Hole Tolerance
± 2mil (± 0.05mm)
Laser Drilling Hole Size
4mil(0.1mm)
Aspect Ration
16: 1
Solder Mask
Green, Blue, White, Black, Red, Yellow, Purple, etc.
Min Solder mask Bridge
2mil(0.050mm)
Plugged Hole Diameter
8mil-20mil ( 0.20mm-0.50mm)
Beveling
30o - 45o
V-scoring
+/-0.1mm, 15o 30o 45o 60o
Impedance Control
Min. 5% General ± 10%
Surface Finishing
HASL, HASL(lead Free), Immersion Gold
Immersion Silver, OSP, Hard Gold ( up to 100u" )
Certification
UL RoHS ISO9001: 2000 ISO14000: 2004 SGS
Testing
Flying probe, E-TEST, X-RAY Inspection , AOI
Files
Gerber Protel DXP Auto CAD PADS OrCAD Express PCB etc
FAQ
Q1: What's your minimum order quantity?
A1: Our MOQ is not the same based on different items. Small orders are also welcome.
Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.
Q3: What any other information should be offered except for file?
A3:Following specifications are needed for quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen
f) Quantity
Q4: I am very satisfied after I read your information, how can I start to purchase my order?
A6: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online!
How to Contact Us?
Would like to know more about the product? Send us inquiry, click "Send" now!
More information about PCB, pls contact with us!
Cellphone: +8618244970526
Bella Yang
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
