Product Specifications
| Prod Model: |

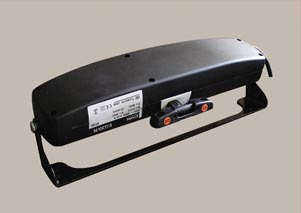

EG 30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Voltage: 230V 50Hz
Current: 0.22A
Power: 50W
Thrust: 300N
Speed: 24mm / s
Maximum turn-on time: 16s
Stroke options: 200mm 380mm
Operating Temperature: -5 ° C - +55 ° C
Protection class: IP30
Easy installation
Special installation attachments can easily adjust machine location on the window frames.
High protection
Protectability performance is superior to similar products, protection class: IP54, with a good waterproof and anti-permeability performance.
This feature, enables EG 30 to normally work even in the case of inclement weather.
Convenient adjustment
3 adjustable stroke (150, 250, 380 mm). No. 4 stroke can be adjusted according to needs.
This feature make EG 30 easily be applied to different practical requirements.
Appearance and design
Small and tight
EG 30 can be applied to windows with different thicknesses and shapes.
Excellent airproof penformance
EG 30 has a special device, that the window can be closed tight even though
It is deformed and the airproof device is down.
EG 30 software wil automatically re-set the closed position after over so time
Of operation. The unique feature that make EG 30 has superior performance in respect of noise control and insulationt.
