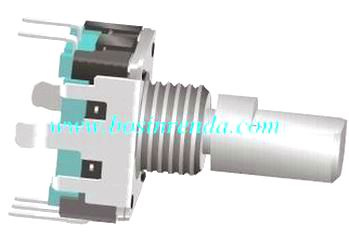

Incremental Encoder for Audio Equalizer (RE1201)

Name: Incremental Encoder for Audio Equalizer (RE1201)
Brand: china-manufacturer-directory.com
SKU: 683879312
Availability: InStock
Rating: 4.4 (26 reviews)

Supplier:	Bosin Holdings Limited
Price:	US $ 0.2/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	RE1201
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RoHS:	100%
Certificate:	ISO9001, ISO14001, Ts16949
Type:	Radio Signal Modulation

Product Description

Encoder, rotary encoders, incremental encoder, audio encoder

Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.

Please check below specification.

1.Electrical Characteristics for rotary encoder
1.1 Rated Power: DC 5V 10mA (1mA Min) 1.2 Fluttering: T1, T3<3ms 1.3 Insulation Resistance: More than 10MΩ at DC50V 1mA 1.4 Withstand voltage:1 minute at AC 50V 1mA 1.5 Sliding Noise (Bounce): T2<2ms 1.6 Phase Difference: >0.08T
2.Mechanical Characteristics
2.1 Rotational Torque of Detent: 50gf.cm~150gf.cm (at 5~35°C) 2.2 Rotational Torque: 10gf.cm~90gf.cm 2.3 Total Rotational Angle: 360° Continuous 2.4 Number and Position of Detent: 12 Detents (Angle: 30°±3°) 24 Detents (Angle: 15°±3°) 2.5 Push-Pull Strength of shaft: 5.0Kgf Min
3.Endurance Characteristics
3.1 Rotational Life: 15,000 Cycles Min
4.Switch Characteristics
4.1 Contact resistance: 100mΩ Max 4.2 Maximum ratings: DC 5V, 10mA (1mA Min) 4.3 Insulation resistance: More than 10MΩ at DC 50V, 1mA 4.4 Withstand voltage: 1 minute at AC 60V 1mA 4.5 Travel: 0.5+0.4/-0.3 mm 4.6 Operating Force: 550±300gf

After decade of efforts, the Bosin products have been sent to over 100 countries, including rotary potentiometers, slide potentiometers, trimmer potentiometers, super-thin potentiometers, encoders and rotary switches, widely applied to computer/multimedia peripherals and various industrial fields. All products are RoHS compliant. For further improving the compatibility and making effort to our quality policy of "Keep Improving, Quality Assurance", the Bosin takes most advanced management mechanism and technologies that including computerized jigs and dies design, automatic assembly facilities and so forth. Now, the Bosin has the capability of producing over 1200 different kinds of hardware, 16 series with about 240 models of potentiometer to meet most of the requirement of the potentiometer market.

The Bosin has passed the certificate of ISO 9001-2000, ISO 14001-2004, TS16949, this assures to satisfy our clients with best quality of products and services. Now, the Bosin is devoting all its efforts to become the top of the potentiometer manufacturer in China.
