Product Specifications
| Prod Model: |
pz30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Pz30 |
| Product: |
Modularization Distribution Box |
| Type: |
Distribution Metering Box |
Product Description

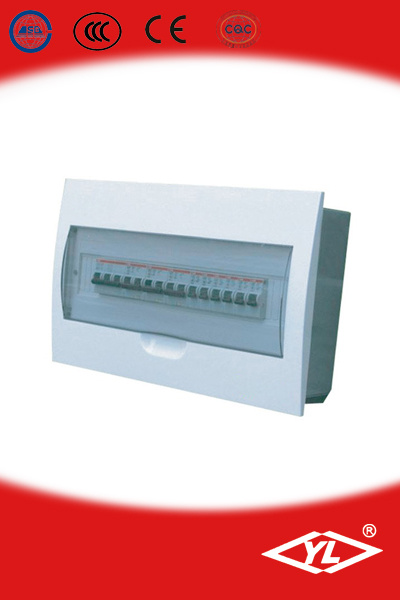

Product name: PZ30 distribution box
Electric meter distribution box
Distribution point box
Multimedia distribution box
PZ30 PZ30 distribution box
Distribution box for switch by wire, instruments and meters, protection appliances and auxiliary equipment assembled in a closed or semi-closed metal cabinet or screen width, formation of low voltage power distribution equipment. With normal operation can be automatically or manually switch or disconnect the circuit. Normal operation and protection circuit of fault or not, or to cut off the alarm. Measuring instrument can display the various parameters of operation, but also in some electrical parameters to adjust deviation from normal operating hints or signal. Commonly used in the hair, distribution, substation.
TFP1-PZ30 series Electrical Metal Power Distribution Box/Indoor Distribution Box
1. PZ30 distribution box divide into two types: Evident installation type and hidden installation type.
2. There are 1~60 loop of specifications. It applies to the terminal circuit with AC 50Hz, 220V or 380V voltage, the total current under 100A.
3. It can random assemble modulus electrical apparatus, mini-type electrical switches such as C45 socket, leakage switch, etc. Installed in the TH35 standard guideway, the products have various protection devices against leakage, electric shock, short circuit, and overload.
4. There is input and output device for lines and earthing line. It has the advantages of convenient installation and luxurious future.
PZ30 distribution box /distribution board
The series products are made of standard cold-rolled steel and use powdercoating techniques to process the crust. The crust is beautiful and fit for surface and flush install.
| Size model | Embeded mouting type | Surface mouting type |
| A×B×C/mm | A×B×C/mm |
| PZ30-2Ways | 150×85×80 | 180×120×80 |
| PZ30-4Ways | 160×140×95 | 187×167×85 |
| PZ30-6Ways | 200×186×90 | 227×213×90 |
| PZ30-8Ways | 200×220×90 | 227×247×90 |
| PZ30-10Ways | 260×260×90 | 287×287×90 |
| PZ30-12Ways | 260×294×90 | 287×321×90 |
| PZ30-15Ways | 260×350×90 | 287×377×90 |
| PZ30-18Ways | 260×400×90 | 287×427×90 |
| PZ30-20Ways | 260×460×90 | 487×287×90 |
| PZ30-24Ways | 460×294×90 | 487×321×90 |
| PZ30-30Ways | 460×350×90 | 487×377×90 |
| PZ30-36Ways | 460×400×90 | 487×427×90 |
| PZ30-40Ways | 460×440×90 | 487×467×90 |
| PZ30-45Ways | 640×350×90 | 487×377×90 |
| PZ30-48Ways | 460×588×90 | 487×615×90 |
| PZ30-60Ways | 460×700×90 | 487×727×90 |
| PZ30-80Ways | 460×880×90 | 487×907×90 |
| PZ30-54Ways | 640×400×90 | 667×427×90 |
| PZ30-90Ways | 640×700×90 | 667×727×90 |
| PZ30-162Ways | 640×1210×90 | 667×1237×90 |
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
