Product Specifications
| Prod Model: |
Drop Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Medicine |
| Type: |
Single-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
Product Description

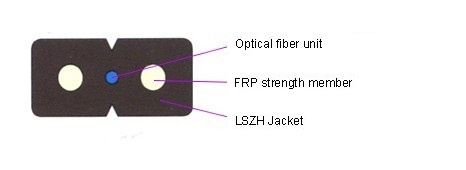

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
@ Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
Transmission property;
@ Two parallel FRP strength members ensure good performance of crush resistance to protect the
Fiber;
@ Simple structure, light weight and high practicability;
@ Novel flute design, easily strip and splice, simplify the installation and maintenance;
@ Low smoke, zero halogen and flame retardant sheath.
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
Attenuation
|
@850nm |
|
|
≤3.5 dB/km |
≤3.5 dB/km |
|
@1300nm |
|
|
≤1.5 dB/km |
≤1.5 dB/km |
|
@1310nm |
≤0.45 dB/km |
≤0.50 dB/km |
|
|
|
@1550nm |
≤0.30 dB/km |
≤0.50dB/km |
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz@km |
≥200 MHz@km |
|
@1300nm |
|
|
≥1000 MHz@km |
≥600 MHz@km |
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
≤1260nm |
≤1480nm |
|
|
|
Fiber Count |
Cable Diameter
mm |
Cable Weight
kg/km
|
Tensile Strength
Long/Short Term
N |
Crush Resistance
Long/Short Term
N/100mm |
Bending Radius
Static
/Dynamic
mm |
|
1 |
(2.0±0.2)×(3.0±0.2) |
8 |
30/60 |
300/1000 |
15/30 |
|
2 |
(2.0±0.2)×(3.0±0.2) |
8 |
30/60 |
300/1000 |
15/30 |
|
4 |
(2.0±0.2)×(3.8±0.2) |
8 |
30/60 |
300/1000 |
15/30 |
|
|
|
|
|
|
|
